    P1CA-SPFSPF-SS085-6

    P1CA-SPFSPF-SS085-6

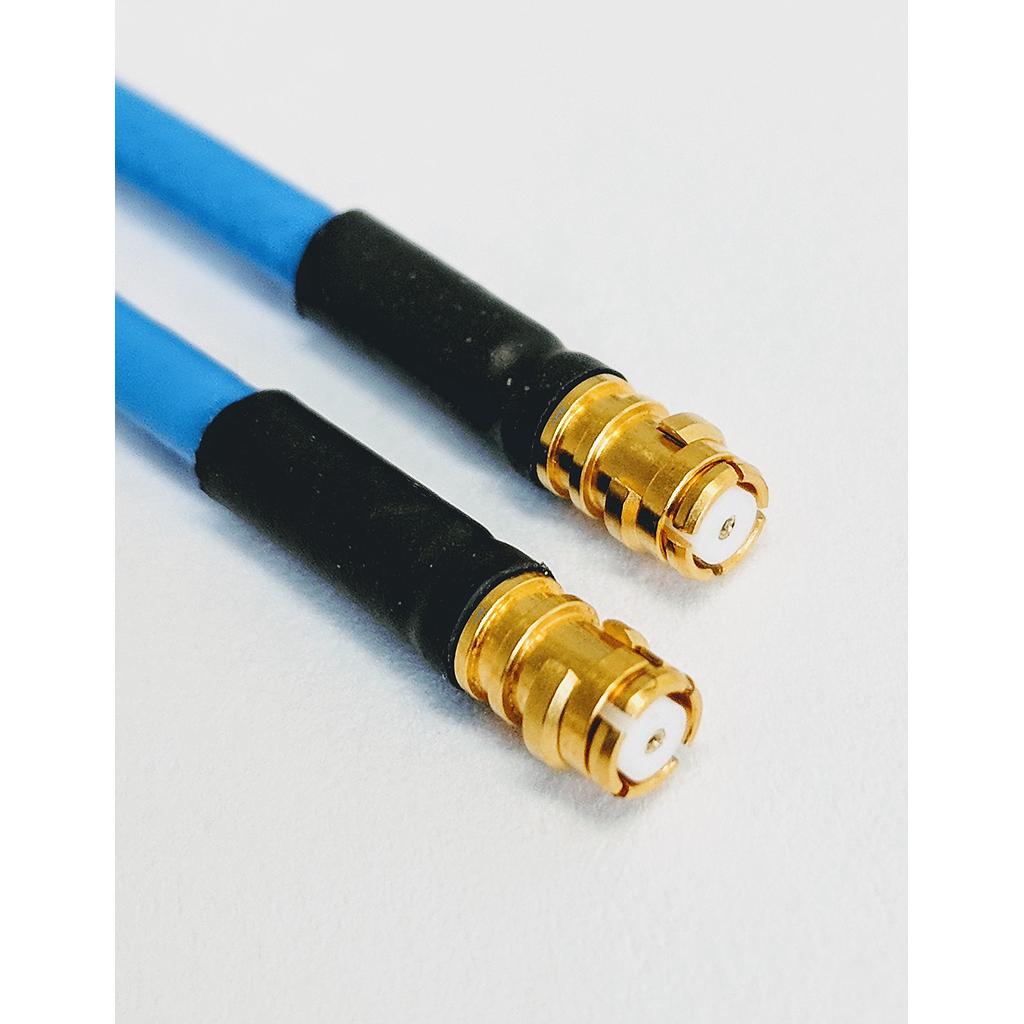

    SMP Female to SMP Female, SS085 flexible coax, 6 inch

    $ 39.95 $ 39.95

    • Connector 1
    • Connector 2
    • Cable Type
    • Cable_Feature
    • Length (in)
    • Outer Diameter (in)
    • Max. Frequency (GHz)
    • Data.F1
    • Data.F2
    • Data.F3
    • Data.F4
    • VSWR1
    • VSWR2
    • VSWR3
    • VSWR4
    • IL1
    • IL2
    • IL3
    • IL4
    • VoP
    • ConnNut1
    • ConnBody1
    • ConnContact1
    • ConnNut2
    • ConnBody2
    • ConnContact2
    • InnerCond
    • Dielectric Material
    • Shield2
    • JacketMat
    • MinBend
    • OpTmpMin
    • OpTmpMax
    • Shield1
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Connector 1: SMP Female
    Connector 2: SMP Female
    Cable Type: SS085
    Cable_Feature: High Performance
    Length (in): 6.0
    Outer Diameter (in): 0.104
    Max. Frequency (GHz): 18.0
    Data.F1: 1.0
    Data.F2: 5.0
    Data.F3: 10.0
    Data.F4: 18.0
    VSWR1: 1.2
    VSWR2: 1.25
    VSWR3: 1.3
    VSWR4: 1.35
    IL1: 0.23
    IL2: 0.52
    IL3: 0.8
    IL4: 1.1
    VoP: 70.0
    ConnNut1: None
    ConnBody1: Gold Plated Beryllium Copper
    ConnContact1: Gold Plated Beryllium Copper
    ConnNut2: None
    ConnBody2: Gold Plated Beryllium Copper
    ConnContact2: Gold Plated Beryllium Copper
    InnerCond: SPC
    Dielectric Material: PTFE
    Shield2: SPC Braid
    JacketMat: FEP
    MinBend: 0.25
    OpTmpMin: -55.0
    OpTmpMax: 165
    Shield1: SPC Ribbon
