P1-BNCP/MMCXPRA-RG316-36

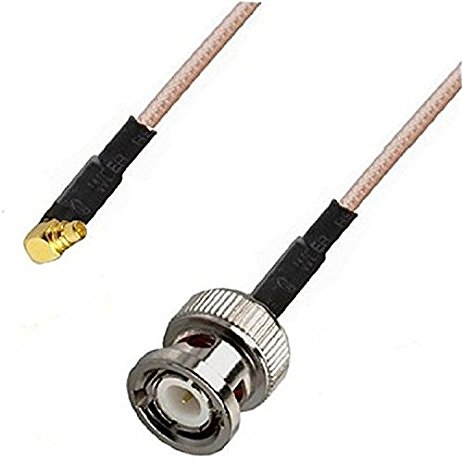

MMCX Plug Right Angle to BNC Male cable using RG-316 RG Type Flex Coax, 36 inches long, and Operating to 3 GHz.
Connector 1:
MMCX Plug Right Angle
Connector 2:
BNC Male
Cable Type:
RG-316
Cable_Feature:
RG Type Flex
Length (in):
36.0
Outer Diameter (in):
0.098
Max. Frequency (GHz):
3.0
Data.F1:
0.1
Data.F2:
0.4
Data.F3:
1.0
Data.F4:
2.4
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.3
VSWR4:
1.35
IL1:
0.09
IL2:
0.18
IL3:
0.31
IL4:
0.49
VoP:
69.5
ConnNut1:
None
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Tin-Zinc-Copper-Alloy Plated Brass
ConnBody2:
Tin-Zinc-Copper-Alloy Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
7/.0067 SPCW
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.5
OpTmpMin:
-55.0
OpTmpMax:
200.0
Shield1:
SPC Braid
