P1-BNCP/SMAP-RG316-36

  • VSWR1
  • Data.F1
  • ConnContact2
  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Max. Frequency (GHz)
  • Outer Diameter (in)
  • Dielectric Material
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • Data.F2
  • Data.F3
  • Data.F4
  • IL1
  • IL2
  • IL3
  • IL4
  • InnerCond
  • JacketMat
  • OpTmpMax
  • OpTmpMin
  • Shield1
  • VSWR2
  • VSWR3
  • VSWR4
  • VoP
  • MinBend

19.95 19.95 19.95 USD

19.95

This combination does not exist.

Add to Cart

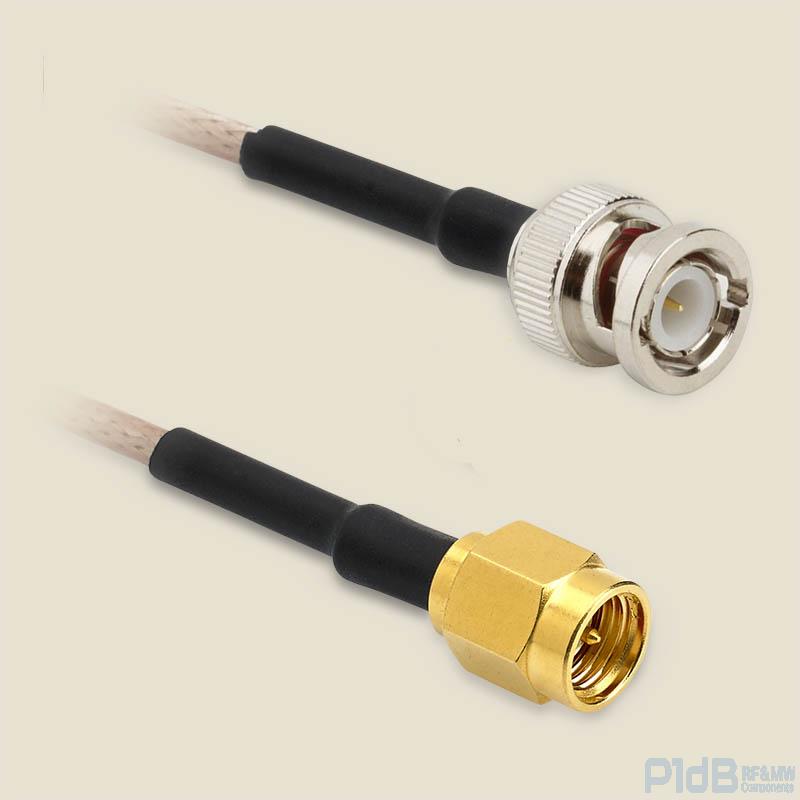

SMA Male to BNC Male cable assembly, RG-316 Flex Coax, 36 inches long, and frequency up to 3 GHz.


VSWR1: 1.2
Data.F1: 0.1
ConnContact2: Gold Plated Brass
Connector 1: SMA Male
Connector 2: BNC Male
Cable Type: RG-316
Cable_Feature: RG Type Flex
Length (in): 36.0
Max. Frequency (GHz): 3.0
Outer Diameter (in): 0.098
Dielectric Material: PTFE
ConnNut1: Gold Plated Brass
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: Tin-Zinc-Copper-Alloy Plated Brass
ConnBody2: Tin-Zinc-Copper-Alloy Plated Brass
Data.F2: 0.4
Data.F3: 1.0
Data.F4: 2.4
IL1: 0.09
IL2: 0.18
IL3: 0.31
IL4: 0.49
InnerCond: 7/.0067 SPCW
JacketMat: FEP
OpTmpMax: 200.0
OpTmpMin: -55.0
Shield1: SPC Braid
VSWR2: 1.25
VSWR3: 1.3
VSWR4: 1.35
VoP: 69.5
MinBend: 0.5
