P1-BNCP/SMBP-RD316-118

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • Shield2
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax
  • Max VSWR
  • Shield1

33.85 33.85 33.85 USD

33.85

This combination does not exist.

Add to Cart

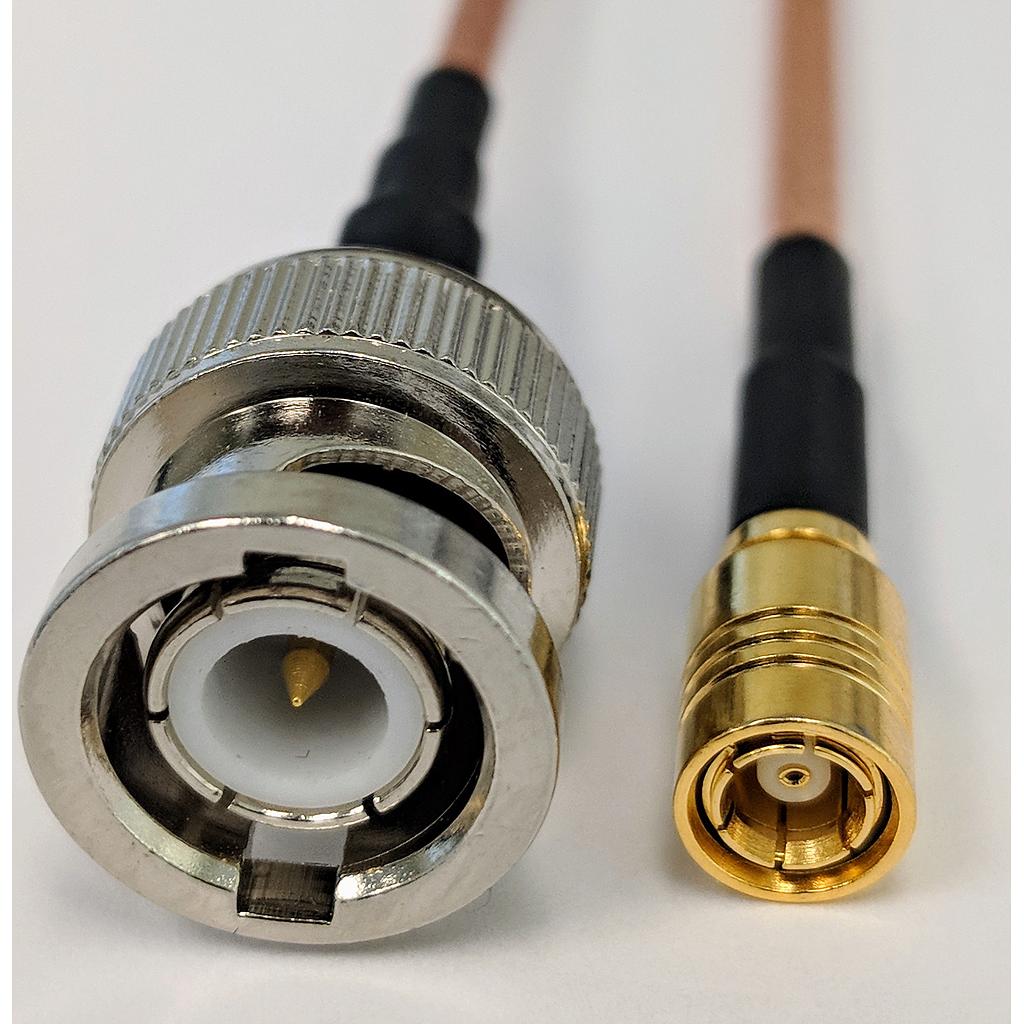

BNC plug (male) to SMB plug cable using RD316 Double-Shielded RG Type Flex Coax, 118 inches long, and Operating to 3 GHz.


Connector 1: BNC Male
Connector 2: SMB Plug
Cable Type: RD316
Cable_Feature: Double-Shielded RG Type Flex
Length (in): 118.0
Outer Diameter (in): 0.114
Max. Frequency (GHz): 3.0
VoP: 69.5
ConnNut1: Tin-Zinc-Copper-Alloy Plated Brass
ConnBody1: Tin-Zinc-Copper-Alloy Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: None
ConnBody2: Gold Plated Brass
ConnContact2: Gold Plated Brass
InnerCond: 7/.0067 SPCW
Dielectric Material: PTFE
Shield2: SPC Braid
JacketMat: FEP
MinBend: 0.6
OpTmpMin: -40.0
OpTmpMax: 85.0
Max VSWR: 1.45:1
Shield1: SPC Braid
