P1-BNCP/SMBP-RD316-24

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • Data.F1
  • Data.F2
  • Data.F3
  • VSWR1
  • VSWR2
  • VSWR3
  • IL1
  • IL2
  • IL3
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • Shield2
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax
  • Shield1

28.92 28.92 28.92 USD

28.92

This combination does not exist.

Add to Cart

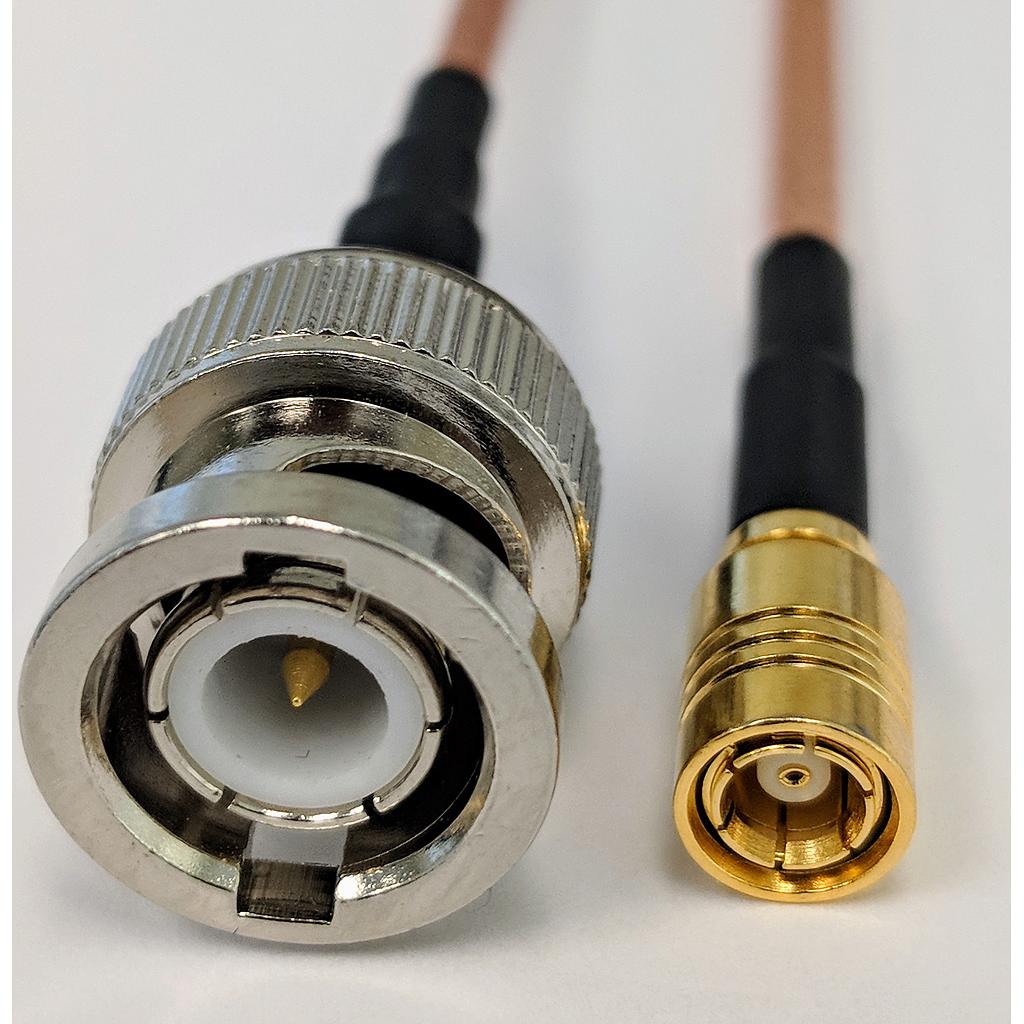

BNC Male to SMB Plug cable assembly using RD316 Double-Shielded flex coax, , 24 inches long, frequency to 3 GHz.


Connector 1: BNC Male
Connector 2: SMB Plug
Cable Type: RD316
Cable_Feature: Double-Shielded RG Type Flex
Length (in): 24.0
Outer Diameter (in): 0.114
Max. Frequency (GHz): 3.0
Data.F1: 0.4
Data.F2: 1.0
Data.F3: 2.4
VSWR1: 1.2
VSWR2: 1.25
VSWR3: 1.3
IL1: 0.18
IL2: 0.31
IL3: 0.49
VoP: 69.5
ConnNut1: Tin-Zinc-Copper-Alloy Plated Brass
ConnBody1: Tin-Zinc-Copper-Alloy Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: None
ConnBody2: Gold Plated Brass
ConnContact2: Gold Plated Brass
InnerCond: 7/.0067 SPCW
Dielectric Material: PTFE
Shield2: SPC Braid
JacketMat: FEP
MinBend: 0.6
OpTmpMin: -55.0
OpTmpMax: 125.0
Shield1: SPC Braid
