P1-NP/NP-RD316-36

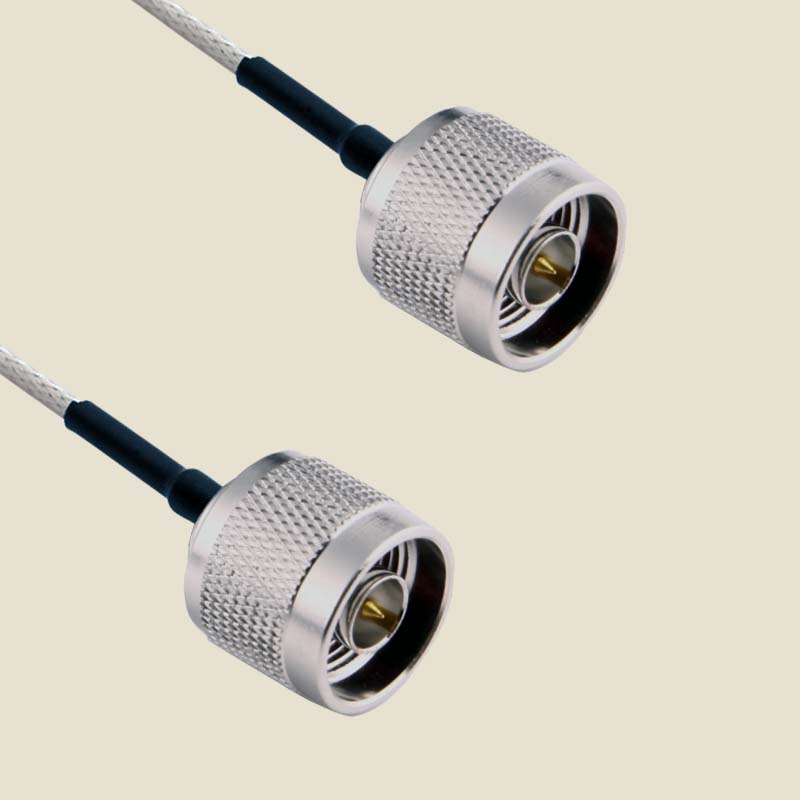

N Male to N Male, RD316 Double-Shielded Flex Coax, 36 inch, DC to 6 GHz.
VSWR1:
1.2
Data.F1:
0.4
ConnContact2:
Gold Plated Brass
Connector 1:
N Male
Connector 2:
N Male
Cable Type:
RD316
Cable_Feature:
Double-Shielded RG Type Flex
Length (in):
36.0
Max. Frequency (GHz):
6.0
Outer Diameter (in):
0.114
Dielectric Material:
PTFE
ConnNut1:
Tin-Zinc-Copper-Alloy Plated Brass
ConnBody1:
Tin-Zinc-Copper-Alloy Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Tin-Zinc-Copper-Alloy Plated Brass
ConnBody2:
Tin-Zinc-Copper-Alloy Plated Brass
Data.F2:
1.0
Data.F3:
2.4
Data.F4:
5.0
IL1:
0.18
IL2:
0.31
IL3:
0.49
IL4:
0.67
InnerCond:
7/.0067 SPCW
JacketMat:
FEP
OpTmpMax:
200.0
OpTmpMin:
-55.0
Shield1:
SPC Braid
Shield2:
SPC Braid
VSWR2:
1.25
VSWR3:
1.3
VSWR4:
1.35
VoP:
69.5
MinBend:
0.6
