P1-SAMSAM-141CJ-108

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • Data.F1
  • Data.F2
  • Data.F3
  • Data.F4
  • VSWR1
  • VSWR2
  • VSWR3
  • VSWR4
  • IL1
  • IL2
  • IL3
  • IL4
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax
  • Shield1

47.95 47.95 47.95 USD

47.95

This combination does not exist.

Add to Cart

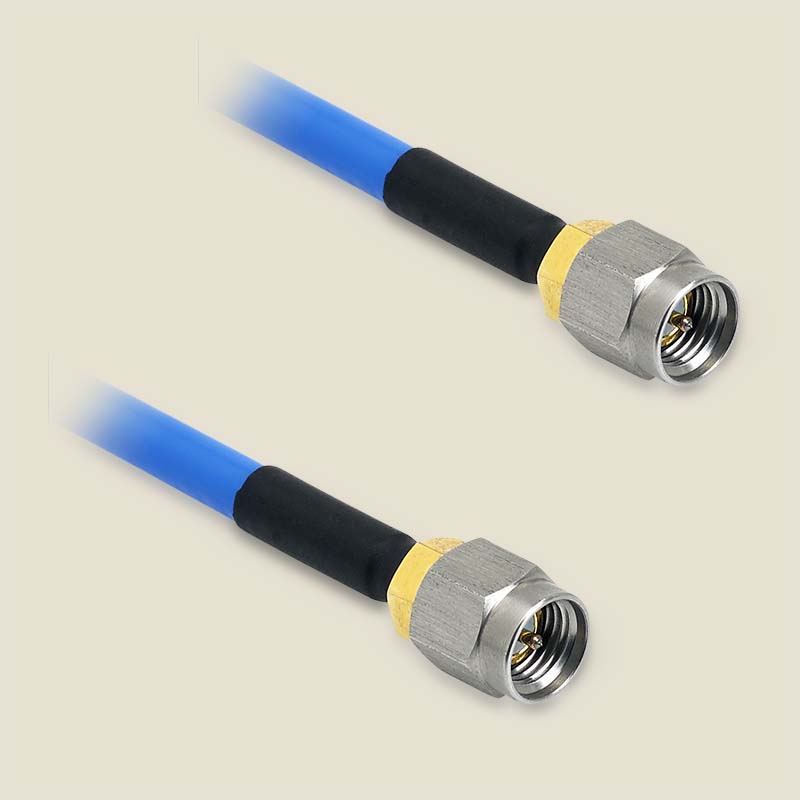

SMA Male to SMA Male cable assembly using 141CJ Conformable Coax, 108 inches long, Operating to 18 GHz.


Connector 1: SMA Male
Connector 2: SMA Male
Cable Type: 141CJ
Cable_Feature: Conformable
Length (in): 108.0
Outer Diameter (in): 0.168
Max. Frequency (GHz): 18.0
Data.F1: 1.0
Data.F2: 5.0
Data.F3: 10.0
Data.F4: 18.0
VSWR1: 1.25
VSWR2: 1.3
VSWR3: 1.32
VSWR4: 1.35
IL1: 0.12
IL2: 0.31
IL3: 0.45
IL4: 0.65
VoP: 70.0
ConnNut1: Passivated Stainless Steel
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: Passivated Stainless Steel
ConnBody2: Gold Plated Brass
ConnContact2: Gold Plated Brass
InnerCond: SPCW
Dielectric Material: PTFE
JacketMat: FEP
MinBend: 0.38
OpTmpMin: -85.0
OpTmpMax: 200.0
Shield1: Tinned Cu/Sn Braid
