P1-SMAP/SMAP-085CC-16

  • VSWR1
  • Data.F1
  • ConnContact2
  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Max. Frequency (GHz)
  • Outer Diameter (in)
  • Dielectric Material
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • Data.F2
  • Data.F3
  • Data.F4
  • IL1
  • IL2
  • IL3
  • IL4
  • InnerCond
  • JacketMat
  • OpTmpMax
  • OpTmpMin
  • Shield1
  • VSWR2
  • VSWR3
  • VSWR4
  • VoP
  • MinBend

15.95 15.95 15.950000000000001 USD

15.95

This combination does not exist.

Add to Cart

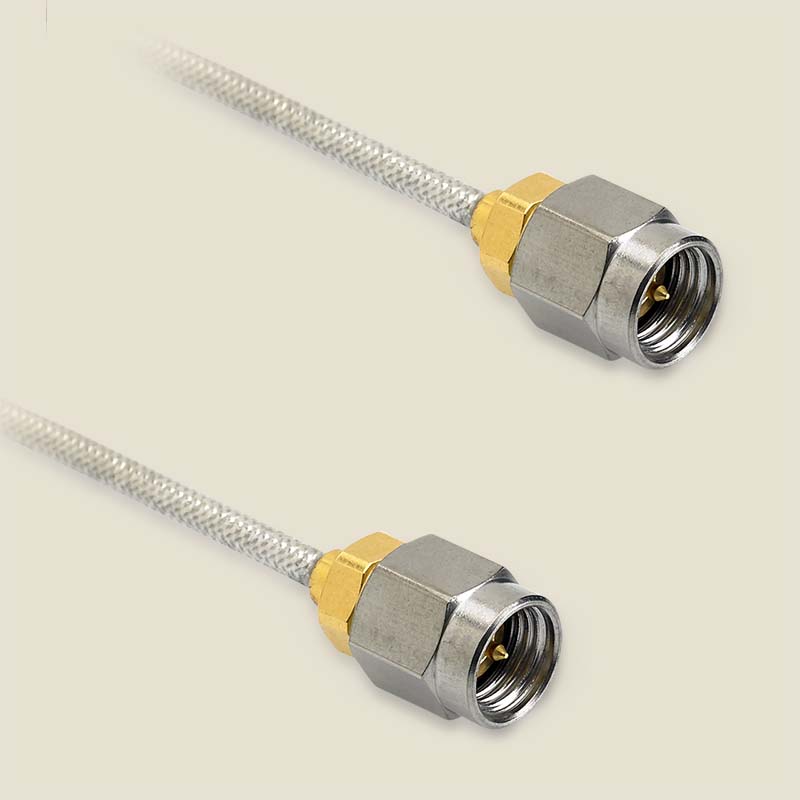

SMA Male to SMA Male cable assembly using 085CC Conformable Coax, 16 inches long, Operating to 18 GHz.


VSWR1: 1.25
Data.F1: 1.0
ConnContact2: Gold Plated Brass
Connector 1: SMA Male
Connector 2: SMA Male
Cable Type: 085CC
Cable_Feature: Conformable
Length (in): 16.0
Max. Frequency (GHz): 18.0
Outer Diameter (in): 0.085
Dielectric Material: PTFE
ConnNut1: Passivated Stainless Steel
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: Passivated Stainless Steel
ConnBody2: Gold Plated Brass
Data.F2: 5.0
Data.F3: 10.0
Data.F4: 18.0
IL1: 0.22
IL2: 0.49
IL3: 0.83
IL4: 1.18
InnerCond: SPCW
JacketMat: FEP
OpTmpMax: 200.0
OpTmpMin: -85.0
Shield1: Tinned Cu/Sn Braid
VSWR2: 1.3
VSWR3: 1.32
VSWR4: 1.35
VoP: 70.0
MinBend: 0.38
