P1-SMAP/SMAP-141CC-15

  • VSWR1
  • Data.F1
  • ConnContact2
  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Max. Frequency (GHz)
  • Outer Diameter (in)
  • Dielectric Material
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • Data.F2
  • Data.F3
  • Data.F4
  • IL1
  • IL2
  • IL3
  • IL4
  • InnerCond
  • JacketMat
  • OpTmpMax
  • OpTmpMin
  • Shield1
  • VSWR2
  • VSWR3
  • VSWR4
  • VoP
  • MinBend

14.95 14.95 14.950000000000001 USD

14.95

This combination does not exist.

Add to Cart

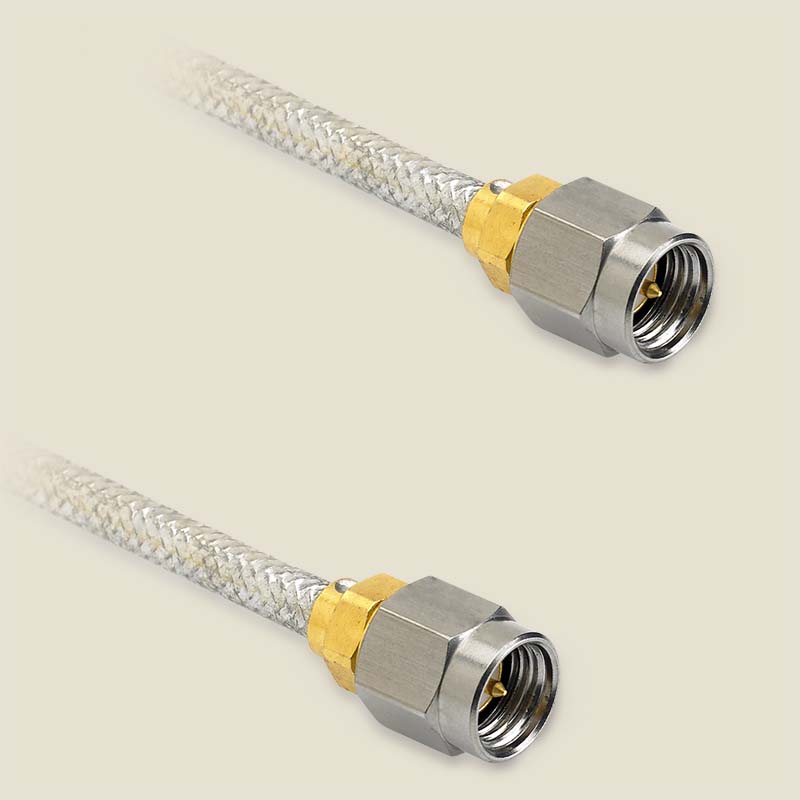

SMA Male to SMA Male cable assembly using 141CC Conformable Coax, 15 inch.


VSWR1: 1.25
Data.F1: 1.0
ConnContact2: Gold Plated Brass
Connector 1: SMA Male
Connector 2: SMA Male
Cable Type: 141CC
Cable_Feature: Conformable
Length (in): 15.0
Max. Frequency (GHz): 18.0
Outer Diameter (in): 0.141
Dielectric Material: PTFE
ConnNut1: Passivated Stainless Steel
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: Passivated Stainless Steel
ConnBody2: Gold Plated Brass
Data.F2: 5.0
Data.F3: 10.0
Data.F4: 18.0
IL1: 0.12
IL2: 0.31
IL3: 0.45
IL4: 0.65
InnerCond: SPCW
JacketMat: FEP
OpTmpMax: 200.0
OpTmpMin: -85.0
Shield1: Tinned Cu/Sn Braid
VSWR2: 1.3
VSWR3: 1.32
VSWR4: 1.35
VoP: 70.0
MinBend: 0.38
