P1-SMAP/SMAP-LL195-12
Flexible Cables, RG-style from P1dB

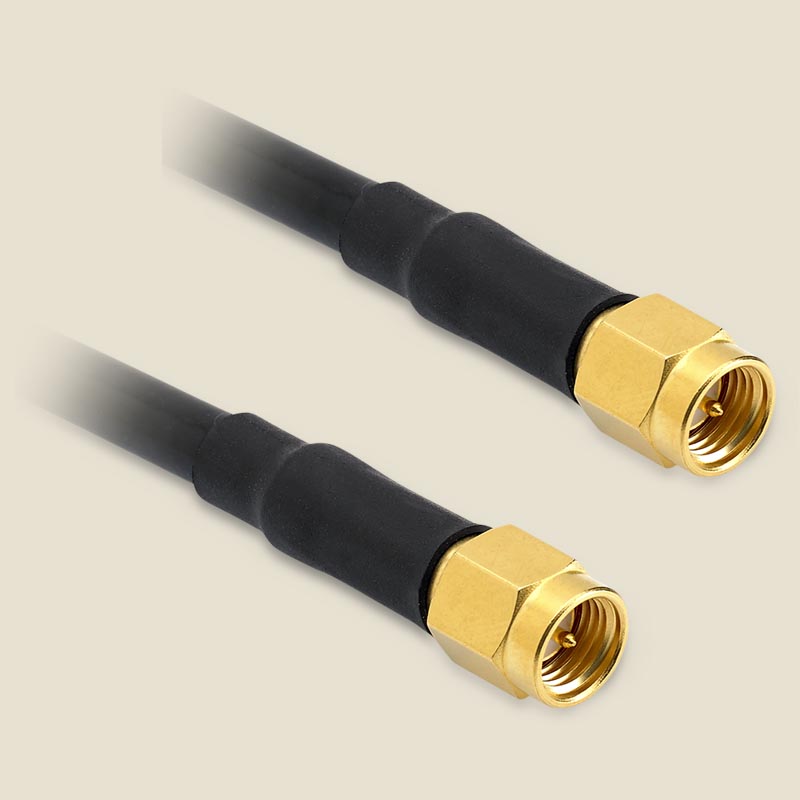

SMA Male to SMA Male cable using LL195 LMR Type Flex Coax, 12 inches long, and Operating to 6 GHz.
| Specifications |
|
Part Number:
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
No
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMA Male
|
|
Cable Type:
LL195
|
|
Cable_Feature:
LMR Type Flex
|
|
Length (in):
12.0
|
|
Outer Diameter (in):
0.195
|
|
Max. Frequency (GHz):
6.0
|
|
Data.F1:
0.9
|
|
Data.F2:
1.8
|
|
Data.F3:
2.5
|
|
Data.F4:
5.8
|
|
VSWR1:
1.2
|
|
VSWR2:
1.25
|
|
VSWR3:
1.3
|
|
VSWR4:
1.35
|
|
IL1:
0.11
|
|
IL2:
0.16
|
|
IL3:
0.19
|
|
IL4:
0.31
|
|
VoP:
80.0
|
|
ConnNut1:
Gold Plated Brass
|
|
ConnBody1:
Gold Plated Brass
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
Tin-Zinc-Copper-Alloy Plated Brass
|
|
ConnBody2:
Tin-Zinc-Copper-Alloy Plated Brass
|
|
ConnContact2:
Gold Plated Brass
|
|
InnerCond:
Bare Copper
|
|
Dielectric Material:
PE, Foamed
|
|
Shield2:
Aluminum Tape
|
|
JacketMat:
PE
|
|
MinBend:
1.0
|
|
OpTmpMin:
-40.0
|
|
OpTmpMax:
80.0
|
|
Shield1:
TC Braid
|
