P1-SMAP/SMAPRA-085CJ-10

  • VSWR1
  • Data.F1
  • ConnContact2
  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Max. Frequency (GHz)
  • Outer Diameter (in)
  • Dielectric Material
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • Data.F2
  • Data.F3
  • Data.F4
  • IL1
  • IL2
  • IL3
  • IL4
  • InnerCond
  • JacketMat
  • OpTmpMax
  • OpTmpMin
  • Shield1
  • VSWR2
  • VSWR3
  • VSWR4
  • VoP
  • MinBend

13.45 13.45 13.450000000000001 USD

13.45

This combination does not exist.

Add to Cart

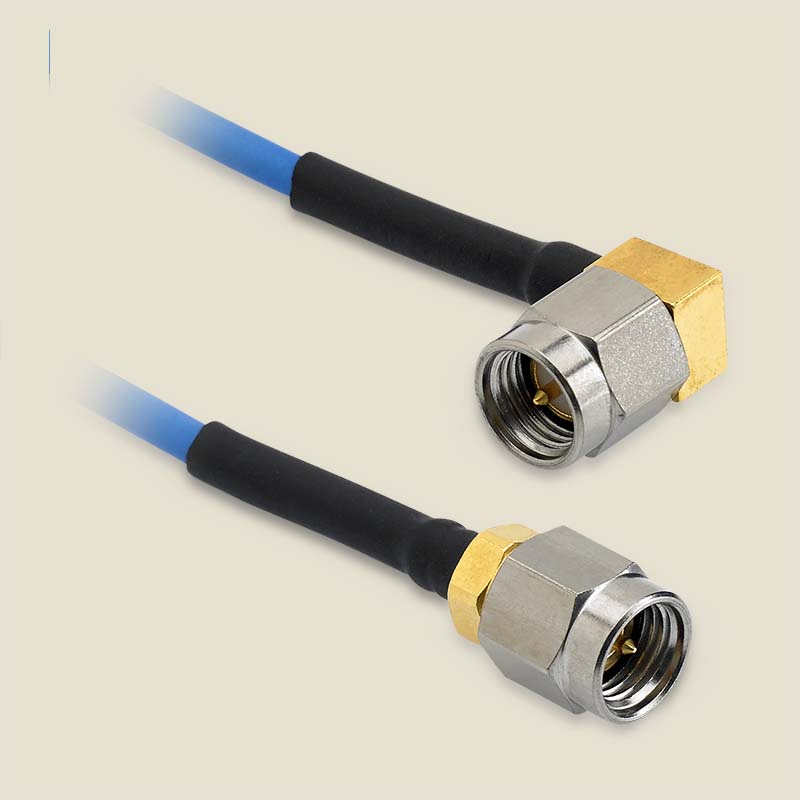

SMA Male to SMA Male Right Angle cable assembly using 085CJ Jacketed Conformable Coax, 10 inches long, Operating to 18 GHz.


VSWR1: 1.2
Data.F1: 1.0
ConnContact2: Gold Plated Brass
Connector 1: SMA Male
Connector 2: SMA Male Right Angle
Cable Type: 085CJ
Cable_Feature: Jacketed Conformable
Length (in): 10.0
Max. Frequency (GHz): 18.0
Outer Diameter (in): 0.102
Dielectric Material: PTFE
ConnNut1: Passivated Stainless Steel
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: Passivated Stainless Steel
ConnBody2: Gold Plated Brass
Data.F2: 5.0
Data.F3: 10.0
Data.F4: 18.0
IL1: 0.22
IL2: 0.49
IL3: 0.83
IL4: 1.18
InnerCond: SPCW
JacketMat: FEP
OpTmpMax: 200.0
OpTmpMin: -85.0
Shield1: Tinned Cu/Sn Braid
VSWR2: 1.25
VSWR3: 1.26
VSWR4: 1.35
VoP: 70.0
MinBend: 0.38
