P1-SMAP/SMAPRA-141CJ-7

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • Data.F1
  • Data.F2
  • Data.F3
  • Data.F4
  • VSWR1
  • VSWR2
  • VSWR3
  • VSWR4
  • IL1
  • IL2
  • IL3
  • IL4
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax
  • Shield1

16.95 16.95 16.95 USD

16.95

This combination does not exist.

Add to Cart

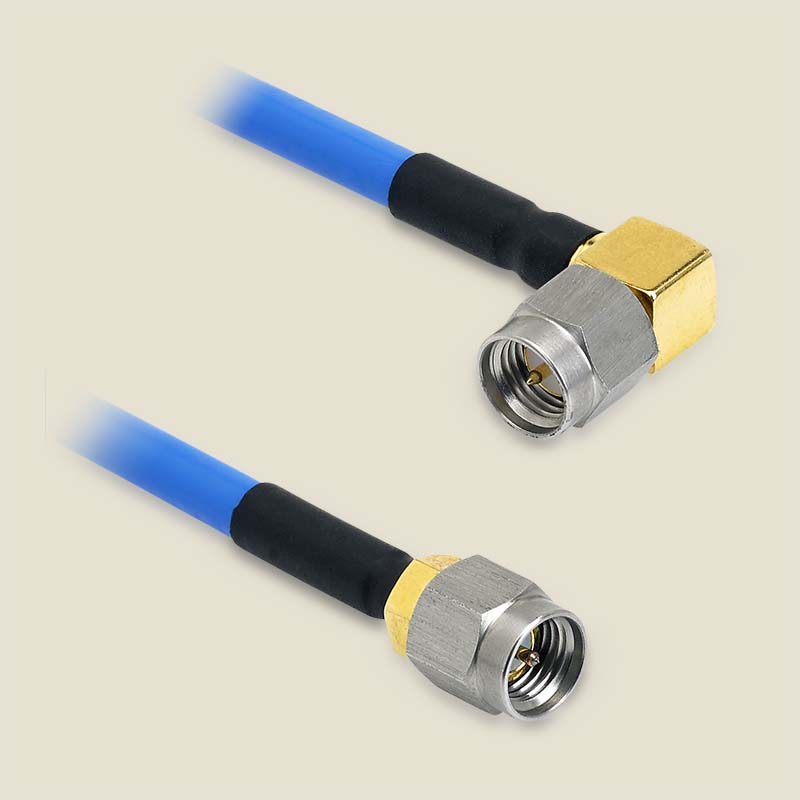

SMA Male to SMA Male Right Angle, 141CJ Jacketed Conformable Coax, 7 inch.


Connector 1: SMA Male
Connector 2: SMA Male Right Angle
Cable Type: 141CJ
Cable_Feature: Jacketed Conformable
Length (in): 7.0
Outer Diameter (in): 0.168
Max. Frequency (GHz): 18.0
Data.F1: 1.0
Data.F2: 5.0
Data.F3: 10.0
Data.F4: 18.0
VSWR1: 1.2
VSWR2: 1.25
VSWR3: 1.26
VSWR4: 1.35
IL1: 0.12
IL2: 0.3
IL3: 0.45
IL4: 0.65
VoP: 70.0
ConnNut1: Passivated Stainless Steel
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: Passivated Stainless Steel
ConnBody2: Gold Plated Brass
ConnContact2: Gold Plated Brass
InnerCond: SPCW
Dielectric Material: PTFE
JacketMat: FEP
MinBend: 0.38
OpTmpMin: -85.0
OpTmpMax: 200.0
Shield1: Tinned Cu/Sn Braid
