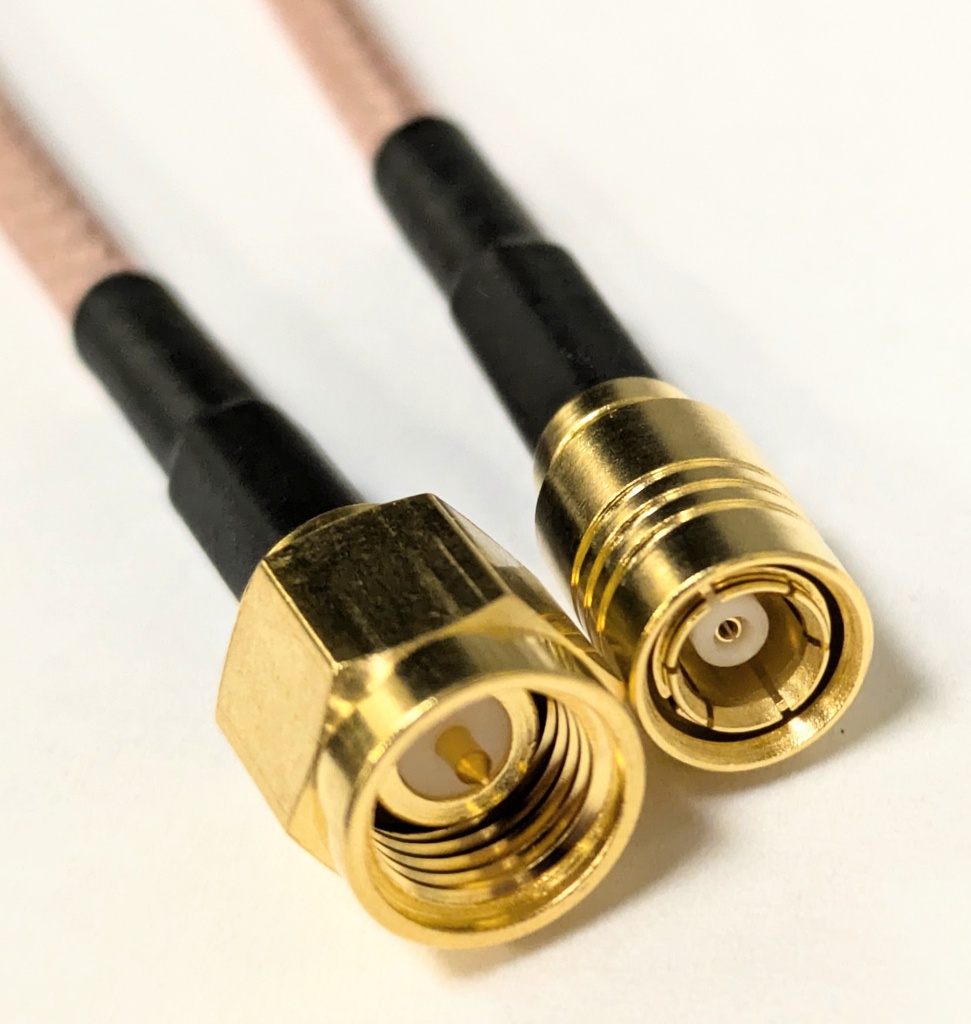

P1-SMAP/SMBP-RD316-24
SMA Male to SMB Plug cable using RD316 Double-Shielded RG Type Flex Coax, 24 inches long, and Operating to 6 GHz.
Connector 1:
SMA Male
Connector 2:
SMB Plug
Cable Type:
RD316
Cable_Feature:
Double-Shielded RG Type Flex
Length (in):
24.0
Outer Diameter (in):
0.114
Max. Frequency (GHz):
6.0
Data.F1:
0.4
Data.F2:
1.0
Data.F3:
2.4
Data.F4:
5.0
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.3
VSWR4:
1.35
IL1:
0.18
IL2:
0.31
IL3:
0.49
IL4:
0.67
VoP:
69.5
ConnNut1:
Gold Plated Brass
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Gold Plated Brass
ConnBody2:
Gold Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
7/.0067 SPCW
Dielectric Material:
PTFE
Shield2:
SPC Braid
JacketMat:
FEP
MinBend:
0.6
OpTmpMin:
-55.0
OpTmpMax:
200.0
Shield1:
SPC Braid
