P1-SMAP/SMBP-RG316-48

  • Connector 1
  • Connector 2
  • Cable Type
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • Shield2
  • JacketMat
  • OpTmpMin
  • OpTmpMax
  • Shield1

$ 27.15 $ 27.15 27.150000000000002 USD

$ 27.15

This combination does not exist.

Add to Cart

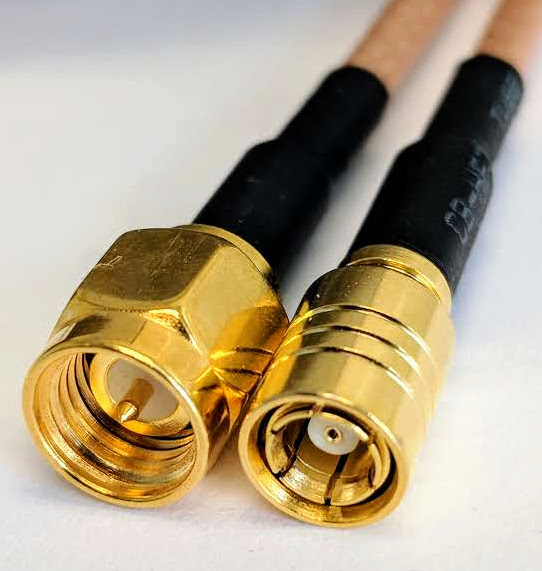

RF cable assembly, SMA Male to SMB Plug (female contact), RG316 flexible coax, 48 inch.

Connector 1: SMA Male
Connector 2: SMB Plug
Cable Type: RG316
Length (in): 48.0
Outer Diameter (in): 0.098
Max. Frequency (GHz): 3.0
ConnNut1: Gold Plated Brass
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: None
ConnBody2: Gold Plated Brass
ConnContact2: Gold Plated Brass
InnerCond: 7/.0067 SPCW
Dielectric Material: PTFE
Shield2: SPC Braid
JacketMat: FEP
OpTmpMin: -55.0
OpTmpMax: 125.0
Shield1: SPC Braid
