P1-SMAPRA/SMAPRA-141CJ-10

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • Data.F1
  • Data.F2
  • Data.F3
  • Data.F4
  • VSWR1
  • VSWR2
  • VSWR3
  • VSWR4
  • IL1
  • IL2
  • IL3
  • IL4
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax
  • Shield1

17.95 17.95 17.95 USD

17.95

This combination does not exist.

Add to Cart

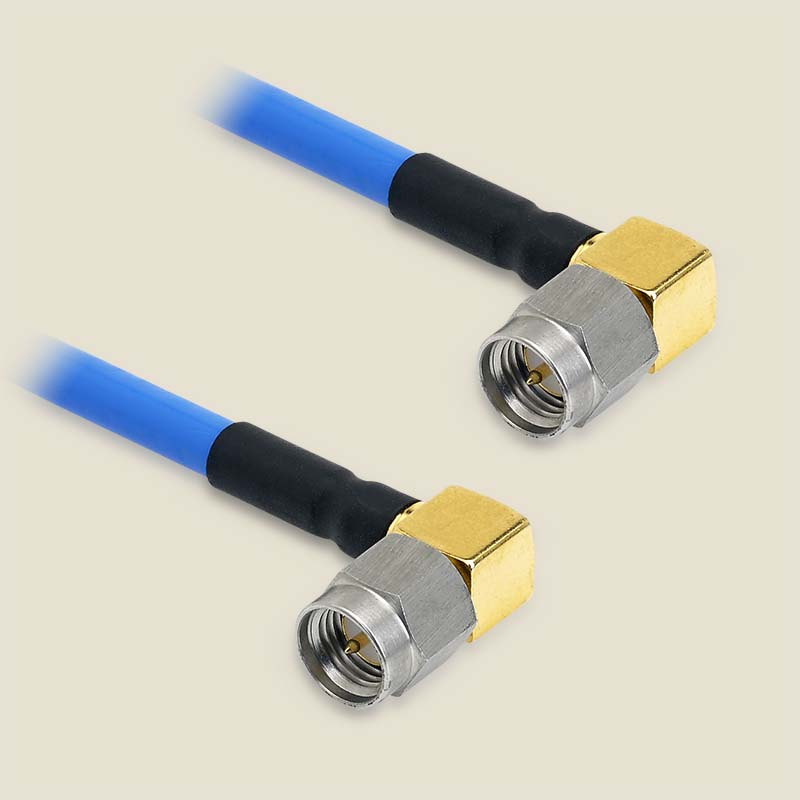

SMA Male Right Angle to SMA Male Right Angle cable assembly using 141CJ Jacketed Conformable Coax, 10 inches long, Operating to 18 GHz.


Connector 1: SMA Male Right Angle
Connector 2: SMA Male Right Angle
Cable Type: 141CJ
Cable_Feature: Jacketed Conformable
Length (in): 10.0
Outer Diameter (in): 0.168
Max. Frequency (GHz): 18.0
Data.F1: 1.0
Data.F2: 5.0
Data.F3: 10.0
Data.F4: 18.0
VSWR1: 1.2
VSWR2: 1.25
VSWR3: 1.26
VSWR4: 1.35
IL1: 0.12
IL2: 0.3
IL3: 0.45
IL4: 0.65
VoP: 70.0
ConnNut1: Passivated Stainless Steel
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: Passivated Stainless Steel
ConnBody2: Gold Plated Brass
ConnContact2: Gold Plated Brass
InnerCond: SPCW
Dielectric Material: PTFE
JacketMat: FEP
MinBend: 0.38
OpTmpMin: -85.0
OpTmpMax: 200.0
Shield1: Tinned Cu/Sn Braid
