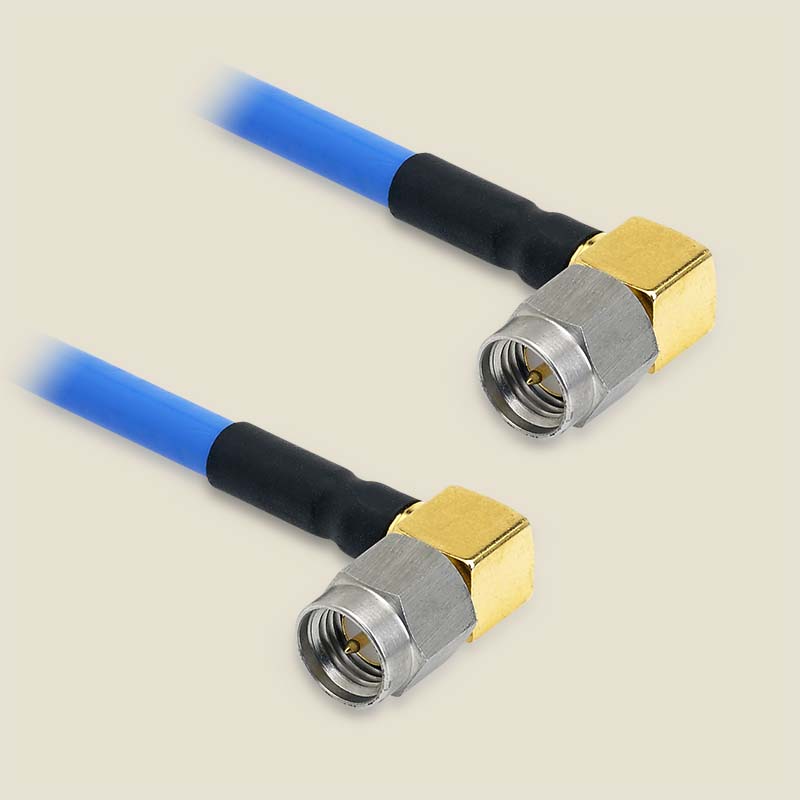

SMA Male Right Angle to SMA Male Right Angle cable assembly using 141CJ Jacketed Conformable Coax, 11 inches long, Operating to 18 GHz.
SMA Male Right Angle
Connector 2: SMA Male Right Angle
Cable Type: 141CJ
Cable_Feature: Jacketed Conformable
Length (in): 11.0
Outer Diameter (in): 0.168
Max. Frequency (GHz): 18.0
ConnNut1: Passivated Stainless Steel
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: Passivated Stainless Steel
ConnBody2: Gold Plated Brass
ConnContact2: Gold Plated Brass
Dielectric Material: PTFE
Shield1: Tinned Cu/Sn Braid
