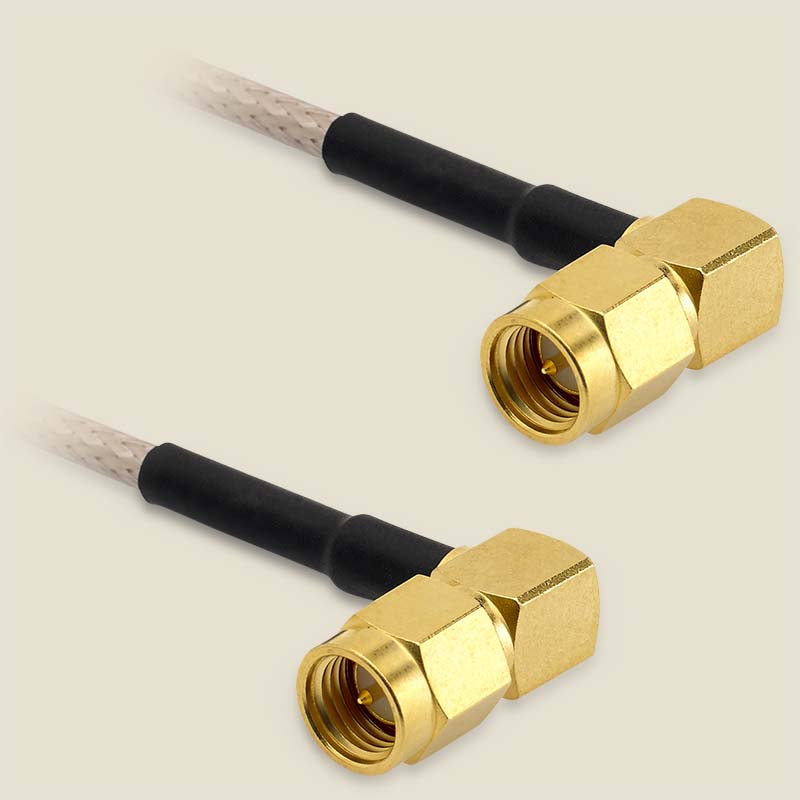

SMA Male Right Angle to SMA Male Right Angle cable using RG-316 RG Type Flex Coax, 8 inches long, and Operating to 6 GHz.


Connector 1: SMA Male Right Angle
Connector 2: SMA Male Right Angle
Cable Type: RG-316
Cable_Feature: RG Type Flex
Length (in): 8.0
Outer Diameter (in): 0.098
Max. Frequency (GHz): 6.0
Data.F1: 0.4
Data.F2: 1.0
Data.F3: 2.4
Data.F4: 5.0
VSWR1: 1.2
VSWR2: 1.25
VSWR3: 1.3
VSWR4: 1.35
IL1: 0.18
IL2: 0.31
IL3: 0.49
IL4: 0.67
VoP: 69.5
ConnNut1: Gold Plated Brass
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Brass
ConnNut2: Gold Plated Brass
ConnBody2: Gold Plated Brass
ConnContact2: Gold Plated Brass
InnerCond: 7/.0067 SPCW
Dielectric Material: PTFE
JacketMat: FEP
MinBend: 0.5
OpTmpMin: -55.0
OpTmpMax: 200.0
Shield1: SPC Braid
