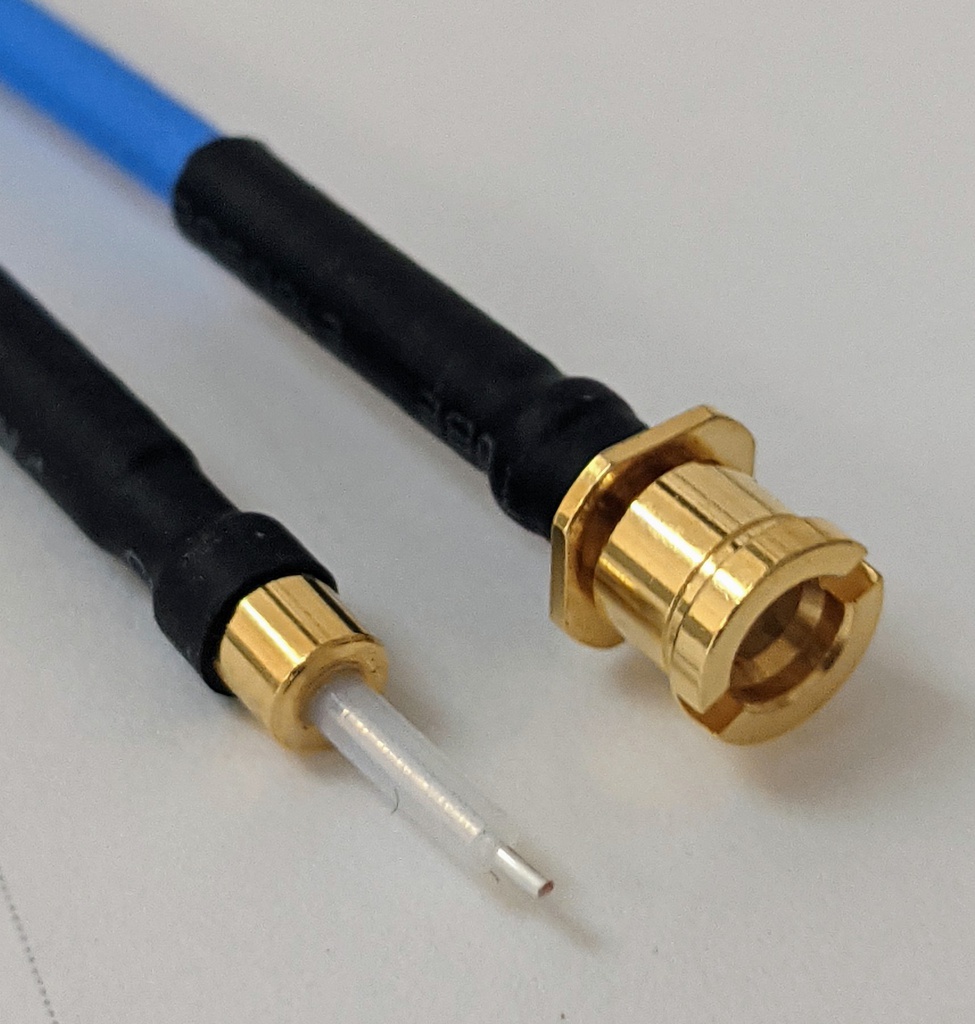

P1-SPM/PIGTAIL-SS085-14
SMP Male to RF Test Probe/Pigtail (no connector) cable assembly, SS085 flex cable (0.104 inch OD), 14 inch.
Connector is SMP male bulkhead .
Trimmed Pigtail end to expose dielectric and center contact.
Frequency DC to 12 GHz. Max VSWR 1.40.
Connector 1:
SMP Male
Connector 2:
Pigtail - No Connector
Cable Type:
085CJ
Cable_Feature:
Trimmed end
Length (in):
14.0
Max. Frequency (GHz):
12.0
Max VSWR:
1.4
