P1CA-24F24M-130F-24-PM-1PS

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • MinBend
  • OpTmpMin
  • OpTmpMax

286.68 286.68 286.68 USD

286.68

This combination does not exist.

Add to Cart

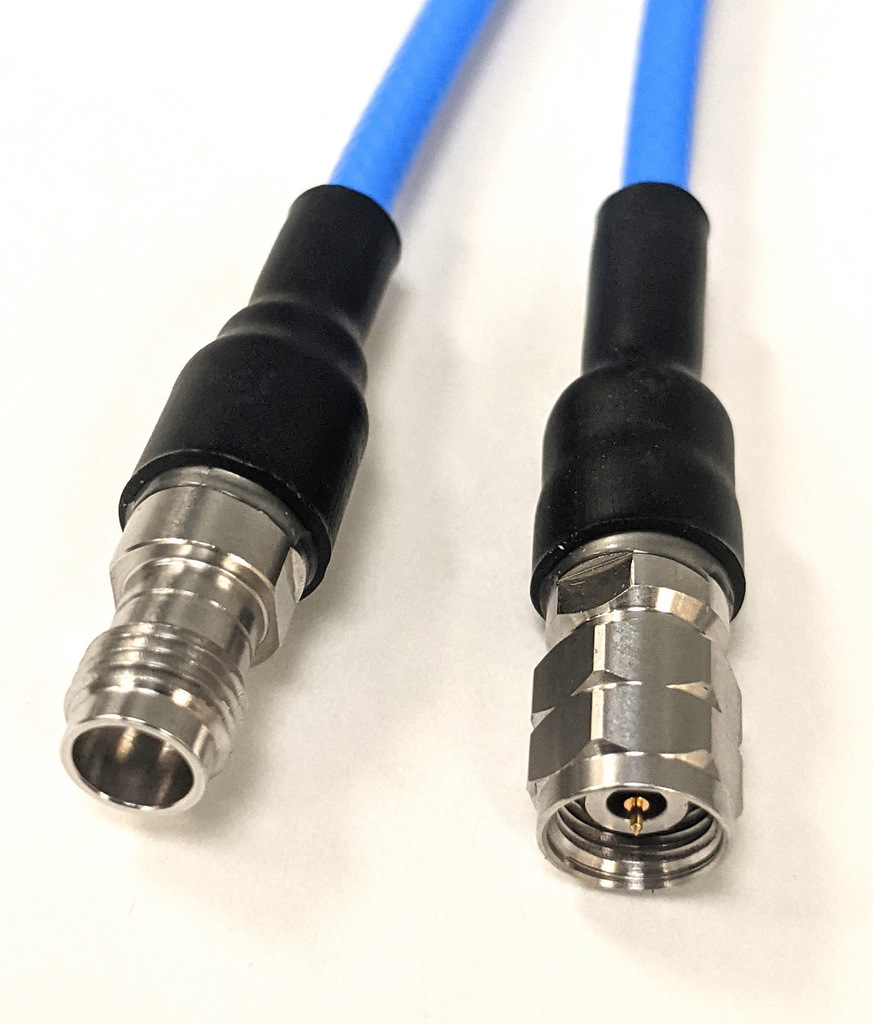

Phase matched cable assemblies, 2.4mm female to 2.4mm male, 130F flexible coax, 24 inch.
Phase matched +/- 1 ps. Frequency DC to 50 GHz.
Supplied as skew (delay) matched pairs (min buy quantity 2 pcs). Price is per cable.
Contact P1dB for larger matched sets of cables (>2).
Each set includes S-Parameter data.


Connector 1: 2.4mm Female
Connector 2: 2.4mm Male
Cable Type: 130F
Cable_Feature: Flexible, low loss
Length (in): 24.0
Outer Diameter (in): 0.14
Max. Frequency (GHz): 50.0 GHz
MinBend: 0.7
OpTmpMin: -55.0
OpTmpMax: 125.0
