P1CA-29M29M-SS085-12-PM-SET16

  • Connector 1
  • Connector 2
  • Cable Type
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • Shield2
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax
  • Shield1

$ 119.85 $ 119.85 119.85000000000001 USD

$ 119.85

This combination does not exist.

Add to Cart

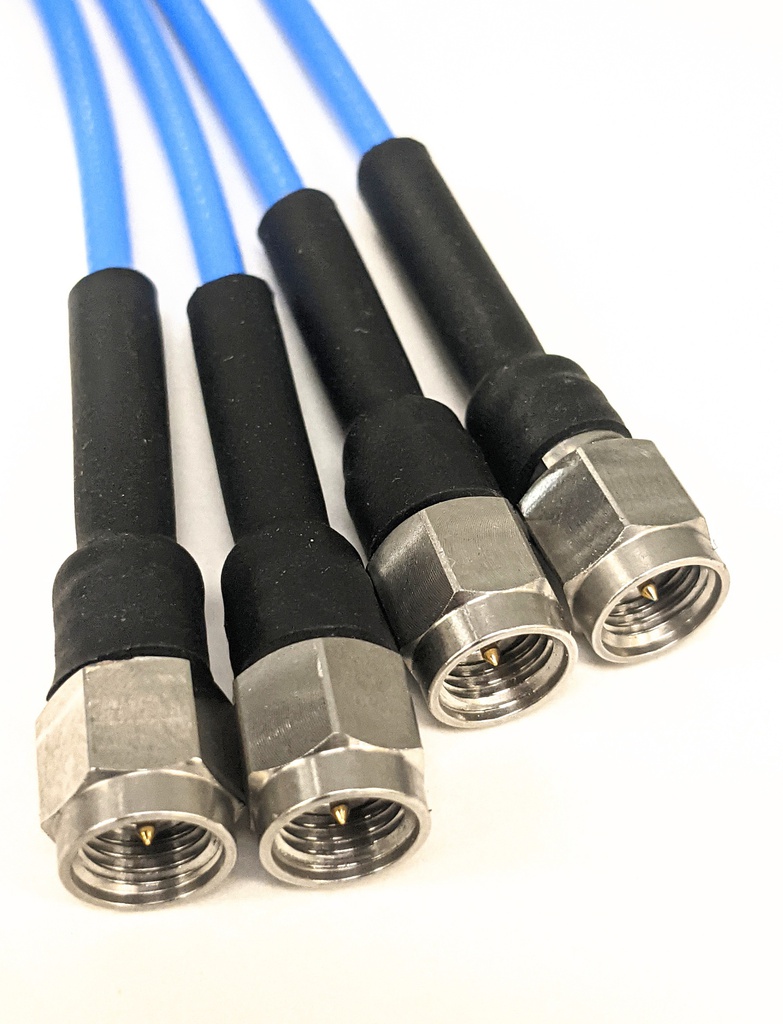

Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors.
Length 12 inch. Phase matched within +/- 5 degrees DC to 20 GHz.
Supplied as a set of 16 matched cables. Price is per cable.
Test data supplied with each cable.

Connector 1: 2.92mm Male
Connector 2: 2.92mm Male
Cable Type: SS085
Length (in): 12.0
Outer Diameter (in): 0.104
Max. Frequency (GHz): 20.0
VoP: 70.0
ConnNut1: Passivated Stainless Steel
ConnBody1: Passivated Stainless Steel
ConnContact1: Gold Plated Brass
ConnNut2: Passivated Stainless Steel
ConnBody2: Passivated Stainless Steel
ConnContact2: Gold Plated Beryllium Copper
InnerCond: SPC
Dielectric Material: PTFE
Shield2: SPC Braid
JacketMat: FEP
MinBend: 0.25
OpTmpMin: -55.0
OpTmpMax: 125.0
Shield1: SPC Ribbon
