P1CA-29M29M-SS085-24-PM

  • Connector 1
  • Connector 2
  • Cable Type
  • Cable_Feature
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • Data.F1
  • Data.F2
  • Data.F3
  • Data.F4
  • VSWR1
  • VSWR2
  • VSWR3
  • VSWR4
  • IL1
  • IL2
  • IL3
  • IL4
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • Shield2
  • JacketMat
  • MinBend
  • OpTmpMin
  • OpTmpMax
  • Shield1

114.89 114.89 114.89 USD

114.89

This combination does not exist.

Add to Cart

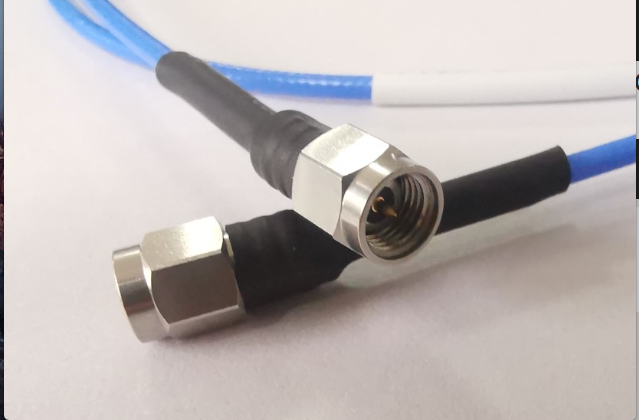

Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz.
Length 24 inch. Phase matched +/- 5 degrees at 18 GHz.
Supplied as phase matched pairs (2).
Priced per cable.


Connector 1: 2.92mm Male
Connector 2: 2.92mm Male
Cable Type: SS085
Cable_Feature: Phase Matched
Length (in): 24.0
Outer Diameter (in): 0.104
Max. Frequency (GHz): 40.0
Data.F1: 1.0
Data.F2: 18.0
Data.F3: 30.0
Data.F4: 40.0
VSWR1: 1.2
VSWR2: 1.25
VSWR3: 1.35
VSWR4: 1.45
IL1: 0.25
IL2: 1.1
IL3: 1.5
IL4: 1.9
VoP: 70.0
ConnNut1: Passivated Stainless Steel
ConnBody1: Passivated Stainless Steel
ConnContact1: Gold Plated Brass
ConnNut2: Passivated Stainless Steel
ConnBody2: Passivated Stainless Steel
ConnContact2: Gold Plated Beryllium Copper
InnerCond: SPC
Dielectric Material: PTFE
Shield2: SPC Braid
JacketMat: FEP
MinBend: 0.25
OpTmpMin: -55.0
OpTmpMax: 125.0
Shield1: SPC Ribbon
