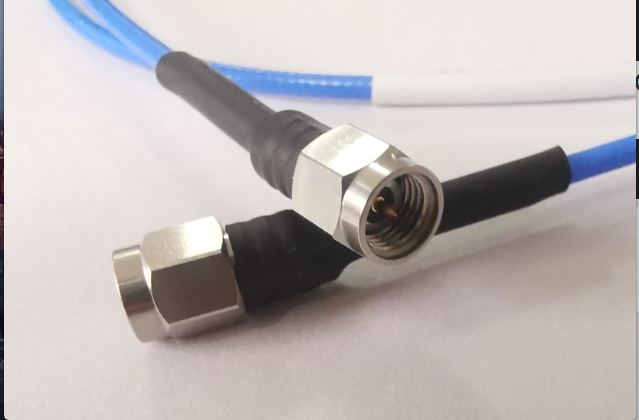

P1CA-29M29M-SS085-60-PM
Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz.
Length 60 inch. Phase matched +/- 5 degrees to 18 GHz.
Supplied as a phase matched pair (2 cables), test data included.. Price is per cable. Typical lead time is 4 weeks.
Contact P1dB if you require a larger quantity of cables as a phase matched set.
Connector 1:
2.92mm Male
Connector 2:
2.92mm Male
Cable Type:
SS085
Cable_Feature:
High Performance
Length (in):
60.0
Outer Diameter (in):
0.104
Max. Frequency (GHz):
40.0
Data.F1:
1.0
Data.F2:
18.0
Data.F3:
30.0
Data.F4:
40.0
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.35
VSWR4:
1.45
IL1:
0.25
IL2:
1.1
IL3:
1.5
IL4:
1.9
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Passivated Stainless Steel
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Passivated Stainless Steel
ConnContact2:
Gold Plated Beryllium Copper
InnerCond:
SPC
Dielectric Material:
PTFE
Shield2:
SPC Braid
JacketMat:
FEP
MinBend:
0.25
OpTmpMin:
-55.0
OpTmpMax:
125.0
Shield1:
SPC Ribbon
