P1CA-SAFPT-020SR-7

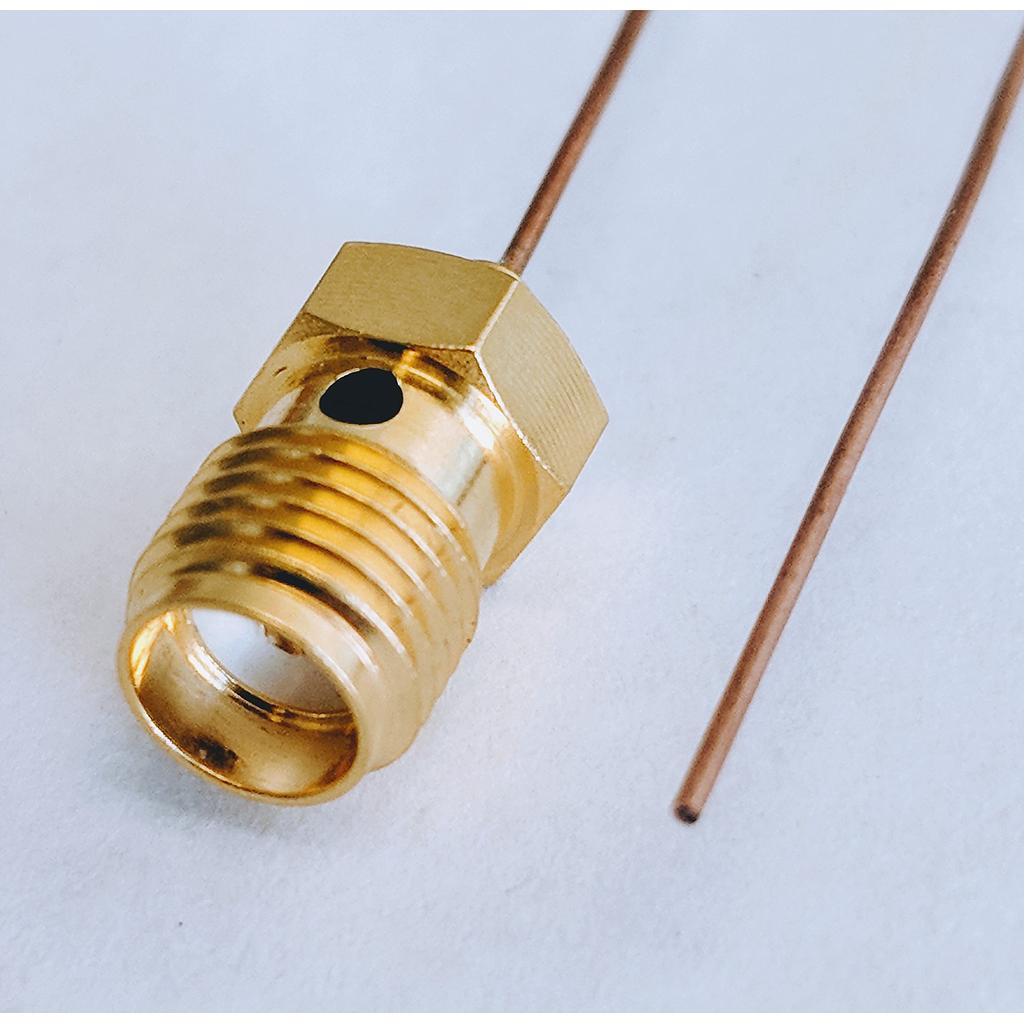

SMA Female to Pigtail, .020 Semi-Rigid Coax, 7 inch, bare copper outer conductor
Connector 1:
SMA Female
Connector 2:
Pigtail - No Connector
Cable Type:
020SR
Cable_Feature:
Semi-Rigid
Length (in):
7.0
Outer Diameter (in):
0.02
Max. Frequency (GHz):
6.0
Data.F1:
1.0
Data.F2:
3.0
Data.F3:
5.0
IL1:
0.73
IL2:
1.22
IL3:
1.66
VoP:
70.0
ConnNut1:
None
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Beryllium Copper
InnerCond:
SPCW
Dielectric Material:
PTFE
JacketMat:
None
MinBend:
0.05
OpTmpMin:
-55.0
OpTmpMax:
85.0
Shield1:
Tinned Copper
