P1CA-SAFPT-047CC-10

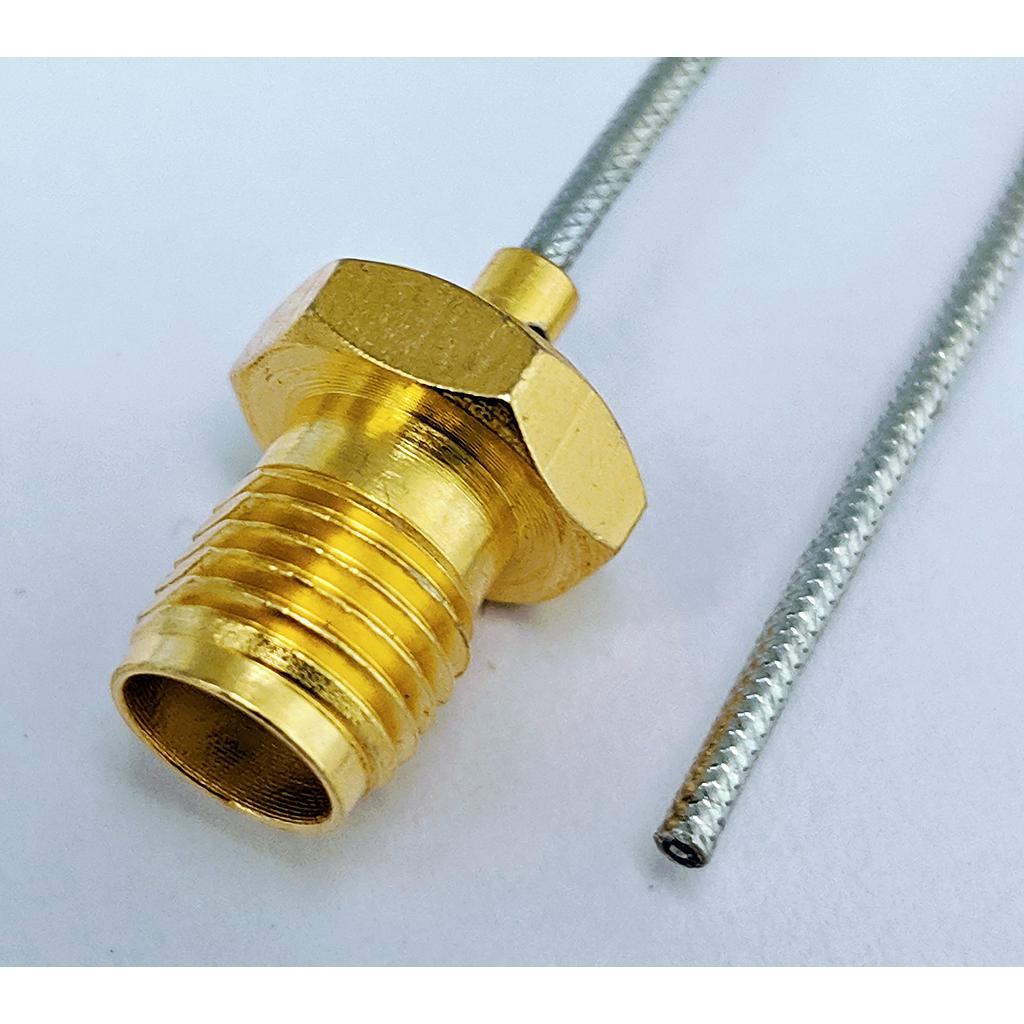

SMA Female to Pigtail (no connector) cable assembly using 047CC Conformable Coax, 10 inches long, Operating to 6 GHz.
Connector 1:
SMA Female
Connector 2:
Pigtail - No Connector
Cable Type:
047CC
Cable_Feature:
Conformable
Length (in):
10.0
Outer Diameter (in):
0.047
Max. Frequency (GHz):
6.0
Data.F1:
1.0
Data.F2:
3.0
Data.F3:
5.0
IL1:
0.36
IL2:
0.62
IL3:
0.86
VoP:
70.0
ConnNut1:
None
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Beryllium Copper
InnerCond:
SPCW
Dielectric Material:
PTFE
JacketMat:
None
MinBend:
0.125
OpTmpMin:
-55.0
OpTmpMax:
125.0
Shield1:
Tinned Cu/Sn Braid
