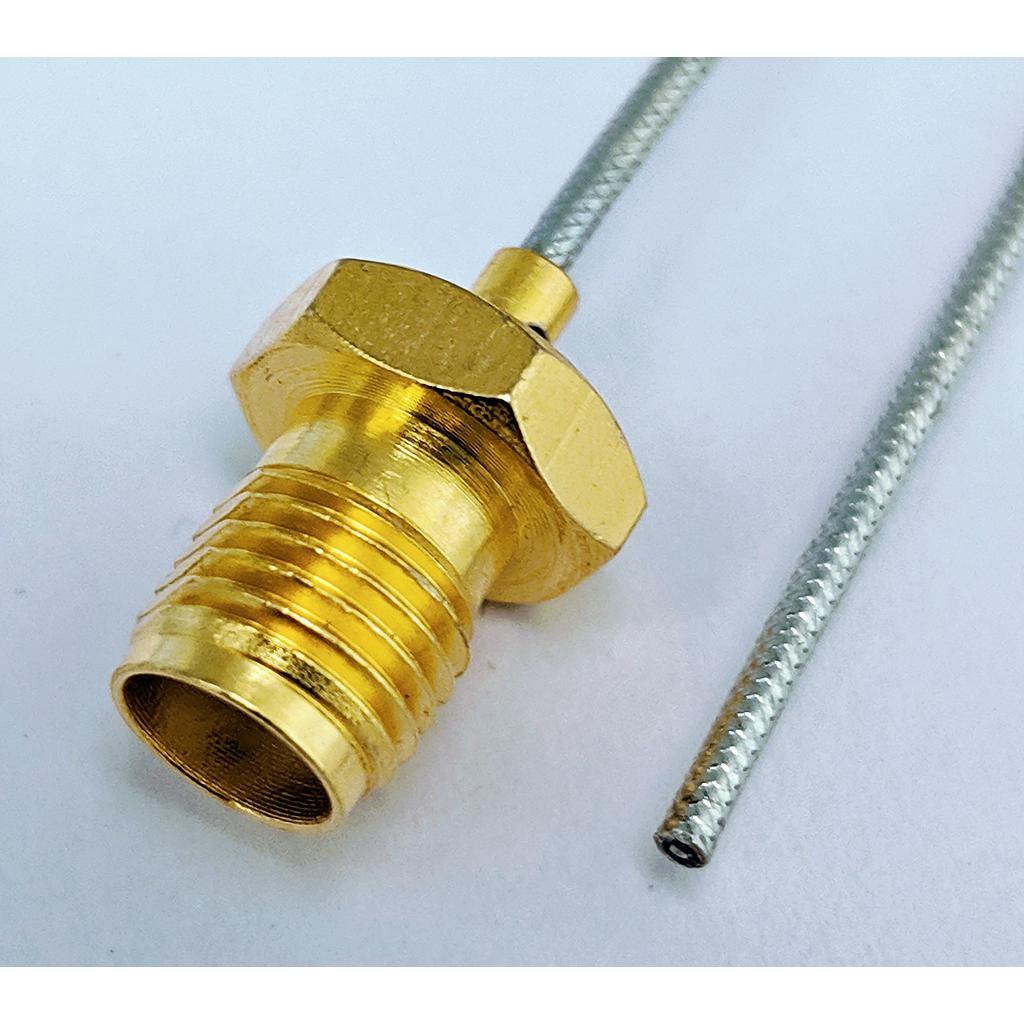

P1CA-SAFPT-047CC-6

• Connector 1
  • SMA Female
• Connector 2
  • Pigtail - No Connector
• Cable Type
  • 047CC
• Cable_Feature
  • Conformable
• Length (in)
  • 6.0
• Outer Diameter (in)
  • 0.047
• Max. Frequency (GHz)
  • 6.0
• Data.F1
  • 1.0
• Data.F2
  • 3.0
• Data.F3
  • 5.0
• IL1
  • 0.36
• IL2
  • 0.62
• IL3
  • 0.86
• VoP
  • 70.0
• ConnNut1
  • None
• ConnBody1
  • Gold Plated Brass
• ConnContact1
  • Gold Plated Beryllium Copper
• InnerCond
  • SPCW
• Dielectric Material
  • PTFE
• JacketMat
  • None
• MinBend
  • 0.125
• OpTmpMin
  • -55.0
• OpTmpMax
  • 200.0
• Shield1
  • Tinned Cu/Sn Braid
