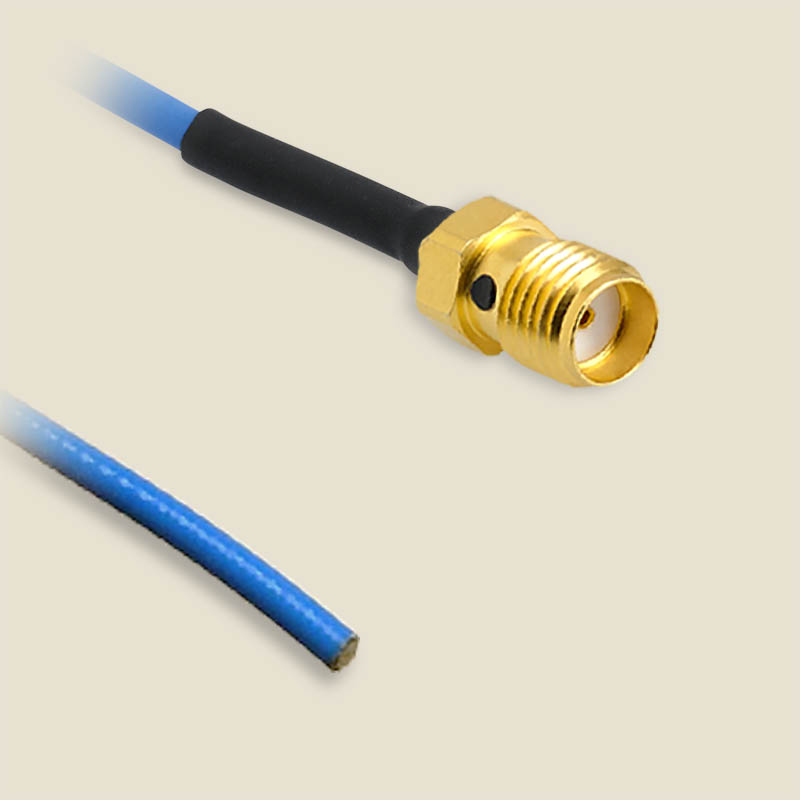

P1CA-SAFPT-085CJ-3
SMA Female to Pigtail (no connector) cable assembly using 085CJ Jacketed Conformable Coax, 3 inches long, Operating to 6 GHz.
Connector 1:
SMA Female
Connector 2:
Pigtail - No Connector
Cable Type:
085CJ
Cable_Feature:
Jacketed Conformable
Length (in):
3.0
Outer Diameter (in):
0.102
Max. Frequency (GHz):
6.0
Data.F1:
1.0
Data.F2:
3.0
Data.F3:
5.0
IL1:
0.22
IL2:
0.49
IL3:
0.83
VoP:
70.0
ConnNut1:
None
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Beryllium Copper
InnerCond:
SPCW
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.125
OpTmpMin:
-55.0
OpTmpMax:
200.0
Shield1:
Tinned Cu/Sn Braid
