P1CA-SAFSMF-SS085-6

  • Connector 1
  • Connector 2
  • Cable Type
  • Length (in)
  • Outer Diameter (in)
  • Max. Frequency (GHz)
  • Data.F1
  • Data.F2
  • Data.F3
  • Data.F4
  • VSWR1
  • VSWR2
  • VSWR3
  • VSWR4
  • IL1
  • IL2
  • IL3
  • IL4
  • VoP
  • ConnNut1
  • ConnBody1
  • ConnContact1
  • ConnNut2
  • ConnBody2
  • ConnContact2
  • InnerCond
  • Dielectric Material
  • Shield2
  • JacketMat
  • MinBend

43.95 43.95 43.95 USD

43.95

This combination does not exist.

Add to Cart

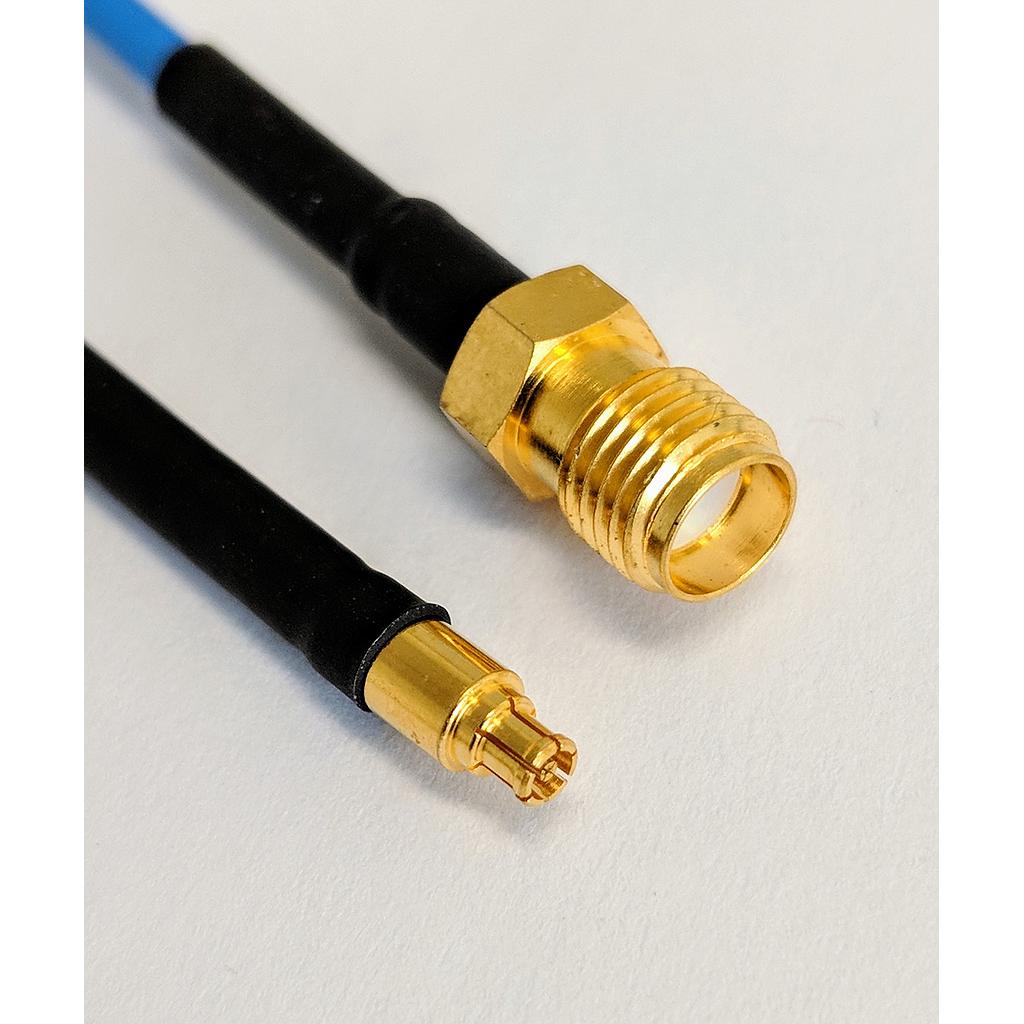

SMA Female to SMPM Female RF flex cable using SS085 Flex Coax, 6 inch.
Frequency DC-18 GHz.


Connector 1: SMA Female
Connector 2: SSMP Female
Cable Type: SS085
Length (in): 6.0
Outer Diameter (in): 0.104
Max. Frequency (GHz): 18.0
Data.F1: 1.0
Data.F2: 5.0
Data.F3: 10.0
Data.F4: 18.0
VSWR1: 1.2
VSWR2: 1.25
VSWR3: 1.3
VSWR4: 1.35
IL1: 0.23
IL2: 0.52
IL3: 0.8
IL4: 1.1
VoP: 70.0
ConnNut1: Gold Plated Brass
ConnBody1: Gold Plated Brass
ConnContact1: Gold Plated Beryllium Copper
ConnNut2: None
ConnBody2: Gold Plated Beryllium Copper
ConnContact2: Gold Plated Beryllium Copper
InnerCond: SPC
Dielectric Material: PTFE
Shield2: SPC Braid
JacketMat: FEP
MinBend: 0.25
