P1CA-SAMRASAMRA-RG58-18

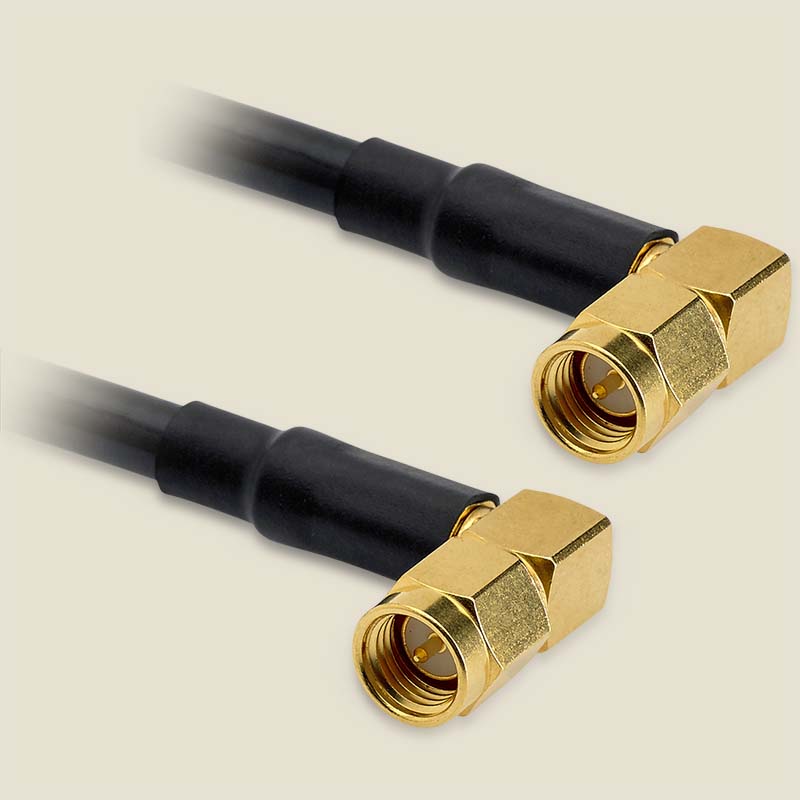

SMA Male Right Angle to SMA Male Right Angle cable using RG-58 RG Type Flex Coax, 18 inches long, and Operating to 6 GHz.
Connector 1:
SMA Male Right Angle
Connector 2:
SMA Male Right Angle
Cable Type:
RG-58
Cable_Feature:
RG Type Flex
Length (in):
18.0
Outer Diameter (in):
0.195
Max. Frequency (GHz):
6.0
Data.F1:
0.1
Data.F2:
0.4
Data.F3:
1.0
Data.F4:
5.0
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.3
VSWR4:
1.35
IL1:
0.05
IL2:
0.1
IL3:
0.18
IL4:
0.6
VoP:
65.9
ConnNut1:
Gold Plated Brass
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Tin-Zinc-Copper-Alloy Plated Brass
ConnBody2:
Tin-Zinc-Copper-Alloy Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
TPC 19/.0072
Dielectric Material:
PE
JacketMat:
PVC
MinBend:
1.0
OpTmpMin:
-40.0
OpTmpMax:
80.0
Shield1:
TPC Briad
