P1-SMAP/SMABHJ-141CJ-10

Low cost hand formable cables from P1dB

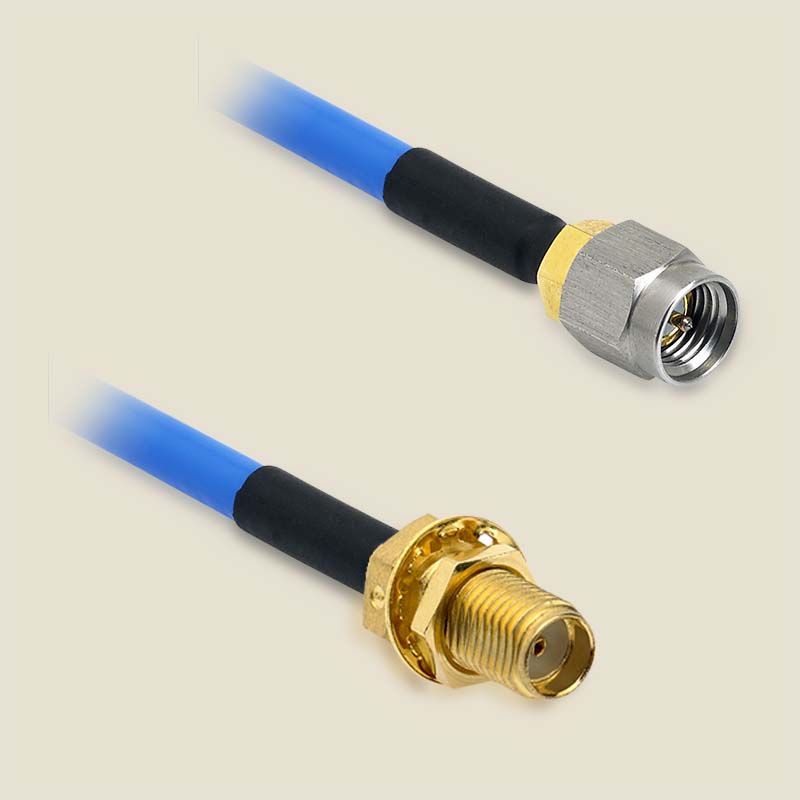

Cable Assembly, SMA Male to SMA Bulkhead Female, 141CJ Jacketed Conformable Coax, 10 inches

Specifications
Part Number:
P1-SMAP/SMABHJ-141CJ-10
Status:
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Female
Cable Type:
141CJ
Cable_Feature:
Conformable, Jacketed
Length (in):
10.0
Outer Diameter (in):
0.161
Max. Frequency (GHz):
18.0
Conn2_Type (Angle, Mount):
Bulkhead

P1CA-SMAP/SMABHJ-141CJ-10 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 10 inch SMA Male to SMA Female Bulkhead Conformable cable assembly that utilizes .141CJ conformable coax with a diameter of 0.161 inches. The SMA assembly operates to 18 GHz with a max VSWR of 1.35:1. YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications.  The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.

Qty: in Unit(s)

16.95 16.95 16.95 USD

16.95

In Stock:44.0
