P1-SMAPRA/SMAPRA-141CJ-12

Low cost hand formable cables from P1dB

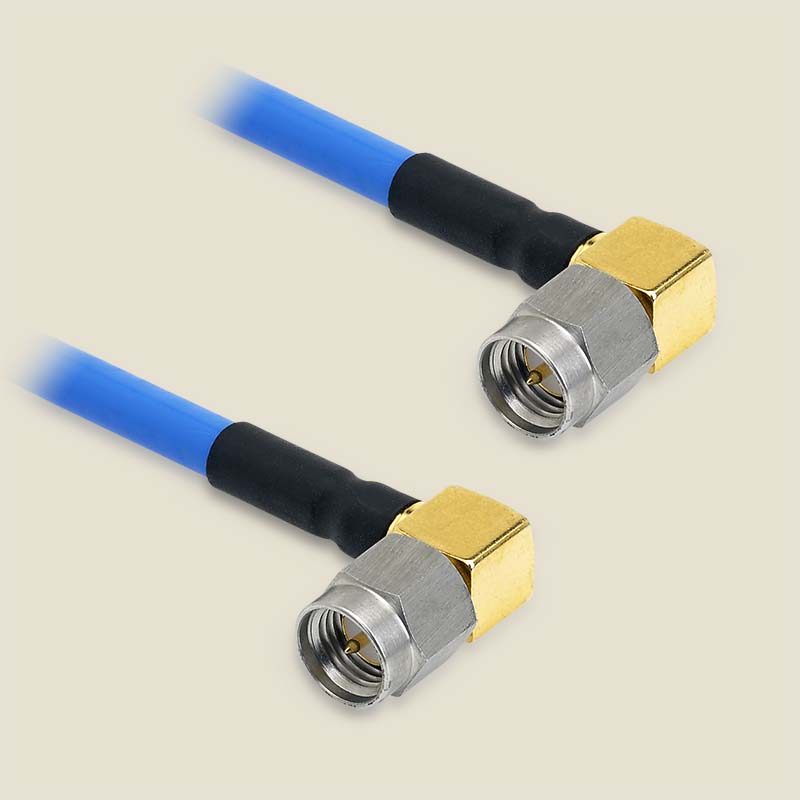

SMA Male Right Angle to SMA Male Right Angle cable assembly using 141CJ Jacketed Conformable Coax, 12 inches long, Operating to 18 GHz.

P1-SMAPRA/SMAP-RG178-24
Cable Assembly, SMA Right Angle Male to SMA Male, RG178 Coax, 24 inches
Status: No new designs
Data Sheet: Data Sheet
RoHS Compliance: No
Specifications
Part Number:
P1-SMAPRA/SMAPRA-141CJ-12
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male Right Angle
Connector 2:
SMA Male Right Angle
Cable Type:
141CJ
Cable_Feature:
Jacketed Conformable
Length (in):
12.0
Outer Diameter (in):
0.168
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
5.0
Data.F3:
10.0
Data.F4:
18.0
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.26
VSWR4:
1.35
IL1:
0.12
IL2:
0.3
IL3:
0.45
IL4:
0.65
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Gold Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
SPCW
Dielectric Material:
PTFE
Shield1:
Tinned Cu/Sn Braid
JacketMat:
FEP
MinBend:
0.38
OpTmpMin:
-85.0
OpTmpMax:
200.0

P1-SMAPRA/SMAPRA-141CJ-12 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 12 inch SMA Male Right Angle to SMA Male Right Angle Jacketed Conformable cable assembly that utilizes 141CJ conformable coax with a diameter of 0.168 inches. The RF cable assembly operates to 18 GHz with a max VSWR of 1.35:1. YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.

Qty: in Unit(s)

15.95 15.95 15.95 USD

15.95

Pricelist
Min. Qty
Price
  • 1
    $ 15.95
  • 10
    $ 15.45
  • 25
    $ 14.95
In Stock:35.0
