P1CA-SAFRPBUFP-U113-9
Ultra Miniature Cable Assemblies from P1dB

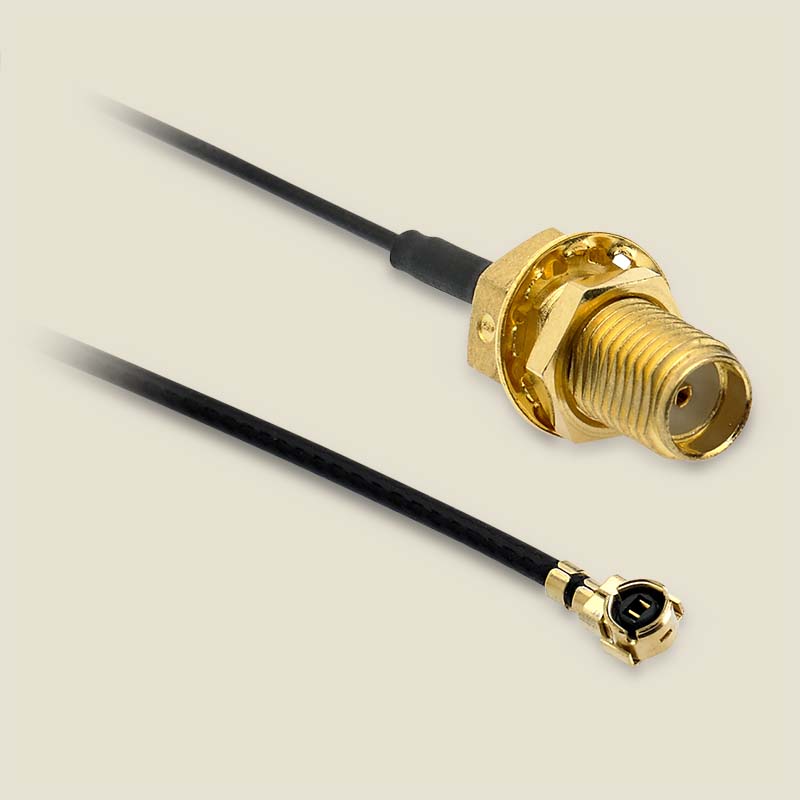

Cable Assembly, Reverse Polarity SMA Bulkhead Female to U.FL Right Angle Plug, U113 Coax, 9 inches
| Specifications |
|
Part Number:
P1CA-SAFRPBUFP-U113-9
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Female
|
|
Connector 2:
U.FL Male
|
|
Cable Type:
U113
|
|
Cable_Feature:
Flex, Ultra Small Diameter
|
|
Length (in):
9.0
|
|
Outer Diameter (in):
0.04
|
|
Max. Frequency (GHz):
3.0
|
|
Conn1_Type (Angle, Mount):
Bulkhead
|
|
Conn1_Feature (RP, Isolated, etc.):
Reverse Polarity
|
|
Conn2_Type (Angle, Mount):
Right Angle
|
P1CA-SAFRPBUFP-U113-9 is a Reverse Polarity SMA Female Bulkhead to U.FL, flexible 1.1mm cable, 9 inch.
P1dB’s ultra-miniature cable assemblies are available with flexible cable or semi-rigid coax. Flexible cable diameter choices are 0.8 mm, 1.1 mm or 1.3 mm. Miniature semi-rigid coax assemblies diameters include .020 inch, .034 or .047 inch.
Flex cables come with a choice of U.FL-style connectors, SMA or MMCX connectors. P1dB’ s U.FL (also called UFP) assemblies are fully compatible with Hirose’s U.FL™ and IPEX’s MHF™ series. P1dB’s UFL assemblies are available in a variety of coax cable options, which include 0.8mm, 1.1mm, 1.3mm, .047 Conformable Coax or RG178. Choose from standard SMA or Reverse Polarity SMA for antenna connections.
