P1CA-SAMSAM-F140-0.5M-PM-1.5PS
Phase Matched Cables from P1dB
RF flexible cable assembly, SMA Male to SMA Male, 0.140 inch flexible coaxial cable, o.5 meter. Supplied as skew matched cable pairs. Time delay +/- 1.5 ps max at 180 MHz. Temp range -40 to 70 deg C. Max phase shift over temp range of 5 deg at 180 MHz. S parameter data included. Price is per cable, minimum order 2 cables.
| Specifications |
|
Part Number:
P1CA-SAMSAM-F140-0.5M-PM-1.5PS
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMA Male
|
|
Length (meter):
0.5
|

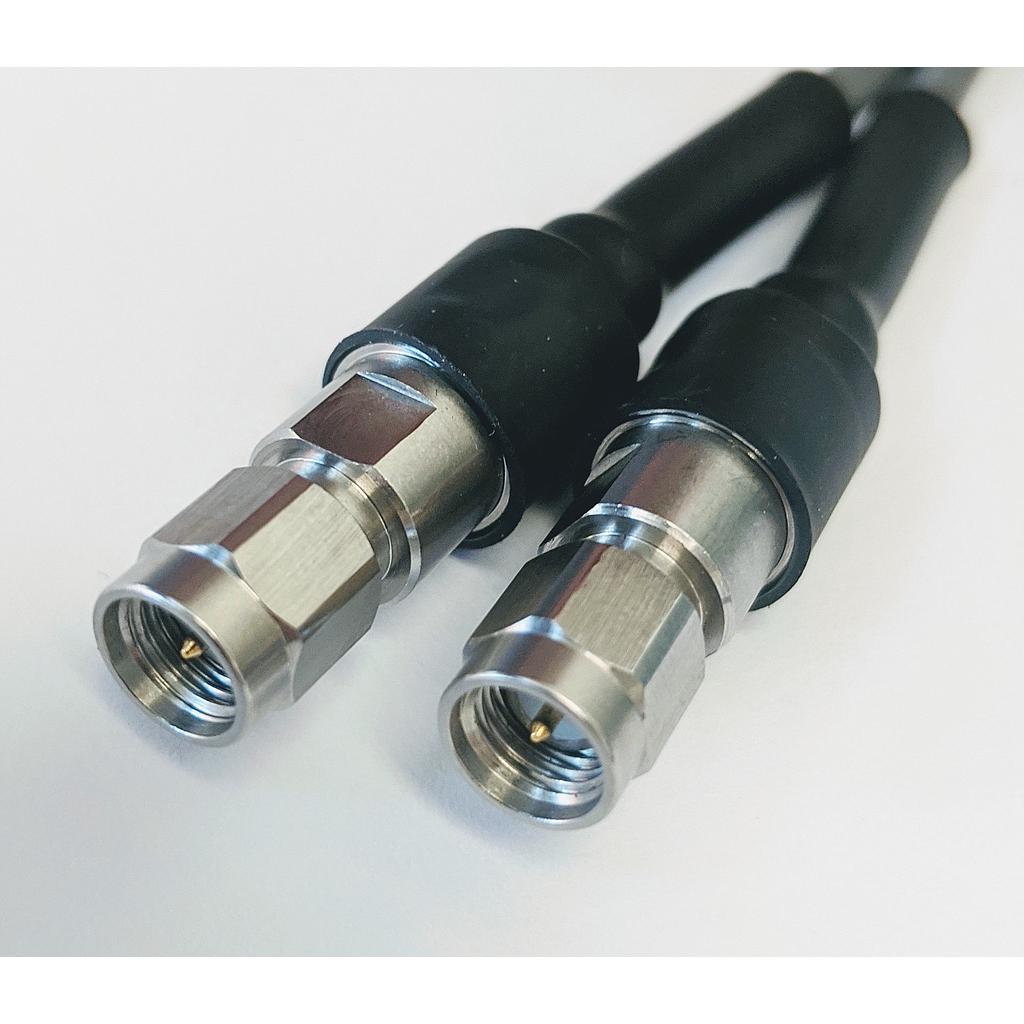

1CA-SAMSAM-F140-0.5M-PM-1.5 PS is a 50 Ohm flexible low loss cable assembly, SMA male to SMA male, 0.5 meter length.
The SMA male connectors are passivated stainless steel.
Supplied as time delay (skew) matched cable pairs, the assemblies are matched to 1.5ps max delay at 180 MHz.
The F140 flexible cable is a low loss, phase stable test cable that is 0.142 inch (3.6mm) diameter.
The cable has a low density PTFE dielectric and 2 shield layers.
Effective shielding is >90 dB.
