P1CA-SAMSPF-085CJ-14
SMP and SMPM from P1dB

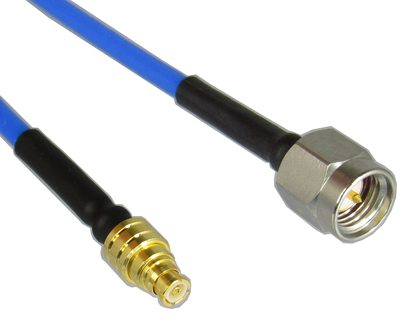

Cable Assembly, SMA Male to SMP Female, 085CJ Jacketed Conformable Coax, 14 inch.
| Specifications |
|
Part Number:
P1CA-SAMSPF-085CJ-14
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMP Female
|
|
Cable Type:
085CJ
|
|
Cable_Feature:
Conformable, Jacketed
|
|
Length (in):
14.0
|
|
Outer Diameter (in):
0.103
|
|
Max. Frequency (GHz):
18.0
|
P1CA-SAMSPF-085CJ-14 is a 50 Ohm flexible RF cable assembly. . It is a 14 inch SMA Male Straight to SMP Female Straight conformable cable using 085CJ formable coax with an outer diameter of 0.102 inches. The assembly operates to 18 GHz with a max VSWR of 1.35.
Qty:
in Unit(s)
