P1SP-NFM-0206G-10W
Surge Protector, DC Block, 2.0-6.0 Ghz, N Female to N Male, Power 10W RMS
$ 109.00 $ 109.00 109.0 USD
Pricelist
Min. Qty
Price
  • 1
    $ 109.0
  • 10
    $ 98.2
P1SP-NFF-0R72R8G-300W6R5V
Surge Protector, 698MHz to 2,800MHz, N Female to N female, DC Pass, Power 300W RMS
$ 98.00 $ 98.00 98.0 USD
Pricelist
Min. Qty
Price
  • 1
    $ 98.0
  • 10
    $ 92.0
P1SP-NFF-0R31R2G-300W6R5V
Surge Protector, 300-1200MHz, DC Pass, N female to N female, Power 300W RMS
$ 98.00 $ 98.00 98.0 USD
Pricelist
Min. Qty
Price
  • 1
    $ 98.0
  • 10
    $ 92.0
P1SP-NMF-0206G-750W10V
Surge Protector, DC Block, 2.0 to 6.0 GHz, N Female to N Male, Power 750W RMS
$ 149.00 $ 149.00 149.0 USD
Pricelist
Min. Qty
Price
  • 1
    $ 149.0
  • 10
    $ 140.0
P1SP-NFF-0R72R7G-750W
Surge Protector, DC Block, 698 to 2,700 MHz, N Female to N Female, Power 750W RMS
$ 98.00 $ 98.00 98.0 USD
Pricelist
Min. Qty
Price
  • 1
    $ 98.0
  • 10
    $ 92.0

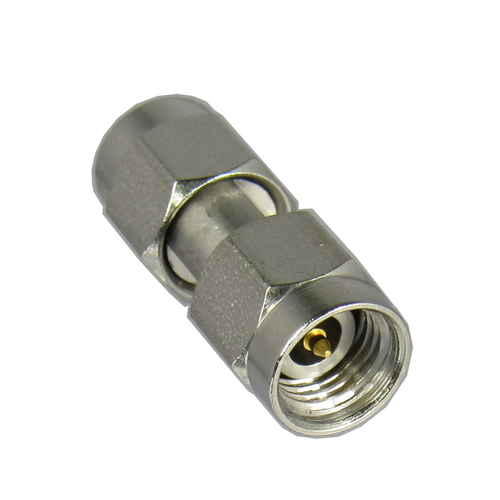

P1AD-29MM
RF Adapter, 2.92mm Male to 2.92mm Male, VSWR 1.25 max up to 40 GHz
$ 46.95 $ 46.95 46.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 46.95
P1AD-24M29FRA-40G
RF Adapter, 2.4mm Male to 2.92mm Female Right Angle up to 40 GHz with a 1.25:1 VSWR
$ 277.25 $ 277.25 277.25 USD
Connector 1
2.4mm Male
Connector 2
2.92mm Female
Angle
Right Angle
Mount
None
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
40.0
Max VSWR
1.25:1
P1PD-SAF-R504G30W-2
Power Divider, 2-Way, 0.5 to 4 GHz, 30 Watts, SMA Female.
Limited to stock on hand.
$ 199.50 $ 199.50 199.5 USD
Pricelist
Min. Qty
Price
  • 1
    $ 199.5
Frequency Min (MHz)
500.0
Frequency Max (MHz)
4000.0
Power Handling (W)
30.0
Insertion Loss (dB)
0.7
Isolation (dB)
20.0
Amplitude Balance (dB)
0.2
Phase Imbalance ()
4.0
Ports
2.0
Connector Input
SMA Female
P1PD-SAF-R501G30W-2
Power Divider, 2-Way, 0.5 to 1 GHz, 30 Watts, SMA Female.
Limited to stock on hand.
$ 155.90 $ 155.90 155.9 USD
Pricelist
Min. Qty
Price
  • 1
    $ 155.9
Frequency Min (MHz)
500.0
Frequency Max (MHz)
1000.0
Power Handling (W)
30.0
Insertion Loss (dB)
0.2
Isolation (dB)
20.0
Ports
2.0
Connector Input
SMA Female
P1PD-SAF-0818G30W-4
Coaxial RF 4-way Power Divider, frequency range 8 GHz to 18 GHz, with SMA female (jack) connectors.
Limited to stock on hand.
$ 237.00 $ 237.00 237.0 USD
Pricelist
Min. Qty
Price
  • 1
    $ 237.0
Frequency Min (MHz)
8000.0
Frequency Max (MHz)
18000.0
Power Handling (W)
30.0
Insertion Loss (dB)
1.5
Isolation (dB)
18.0
Ports
4.0
Connector Input
SMA Female
P1PD-SAF-0618G30W-2
Coaxial RF 2-way Power Divider, frequency range 6 GHz to 18 GHz, with SMA female (jack) connectors.
Limited to stock on hand.
$ 197.85 $ 197.85 197.85 USD
Pricelist
Min. Qty
Price
  • 1
    $ 197.85
Frequency Min (MHz)
6000.0
Frequency Max (MHz)
18000.0
Power Handling (W)
30.0
Insertion Loss (dB)
0.6
Isolation (dB)
20.0
Ports
2.0
Connector Input
SMA Female
P1PD-SAF-0208G30W-4
Coaxial RF Power Divider, 4-Way, frequency 2 to 8 GHz, with SMA female (jack) connectors.
Limited to stock on hand.
$ 196.50 $ 196.50 196.5 USD
Pricelist
Min. Qty
Price
  • 1
    $ 196.5
Frequency Min (MHz)
2000.0
Frequency Max (MHz)
8000.0
Power Handling (W)
30.0
Insertion Loss (dB)
1.0
Isolation (dB)
18.0
Ports
4.0
Connector Input
SMA Female
P1PD-SAF-0206G30W-4
Coaxial RF 4-way Power Divider, frequency range 1.7 GHz to 6 GHz.
Optimized performance at WiFi bands.
Limited to stock on hand.
$ 196.00 $ 196.00 196.0 USD
Pricelist
Min. Qty
Price
Frequency Min (MHz)
1700.0
Frequency Max (MHz)
6000.0
Power Handling (W)
30.0
Insertion Loss (dB)
1.1
Isolation (dB)
25.0
Ports
4.0
Connector Input
N Female
P1PD-SAF-0206G30W-2
SMA 2-Way Power Divider, operating from 1.7 to 6 GHz, Optimized at WiFi bands.
Limited to stock on hand.
$ 189.53 $ 189.53 189.53 USD
Pricelist
Min. Qty
Price
  • 1
    $ 189.53
Frequency Min (MHz)
1700.0
Frequency Max (MHz)
6000.0
Power Handling (W)
30.0
Insertion Loss (dB)
0.4
Isolation (dB)
25.0
Amplitude Balance (dB)
0.3
Phase Imbalance ()
4.0
Ports
2.0
Connector Input
SMA Female
P1PD-SAF-0118G30W-2
Power Divider, 2-Way, 1 to 18 GHz, 30 Watts, SMA Female.
Limited to stock on hand.
$ 279.55 $ 279.55 279.55 USD
Pricelist
Min. Qty
Price
  • 1
    $ 279.55
Frequency Min (MHz)
1000.0
Frequency Max (MHz)
18000.0
Power Handling (W)
30.0
Insertion Loss (dB)
1.0
Isolation (dB)
15.0
Ports
2.0
Connector Input
SMA Female
P1PD-NF-0208G30W-4
Power Divider, 4-Way, 2 to 8 GHz, 30 Watts, N Female.
Limited to stock on hand.
$ 239.87 $ 239.87 239.87 USD
Pricelist
Min. Qty
Price
  • 1
    $ 239.87
Frequency Min (MHz)
2000.0
Frequency Max (MHz)
8000.0
Power Handling (W)
30.0
Insertion Loss (dB)
0.8
Isolation (dB)
20.0
Ports
4.0
Connector Input
N Female
P1PD-NF-0204G30W-4
Power Divider, 4-Way, 2 to 4 GHz, 30 Watts, N Female.
Limited to stock on hand.
$ 185.94 $ 185.94 185.94 USD
Pricelist
Min. Qty
Price
  • 1
    $ 185.94
Frequency Min (MHz)
2000.0
Frequency Max (MHz)
4000.0
Power Handling (W)
30.0
Insertion Loss (dB)
0.8
Isolation (dB)
20.0
Ports
4.0
Connector Input
N Female
P1PD-SAF-0R72R7G30W-2
Coaxail RF 2-way Power Divider, frequency range 0.7 GHz to 2.7 GHz, with SMA female (jack) connectors.
Limited to stock on hand.
$ 189.93 $ 189.93 189.93 USD
Pricelist
Min. Qty
Price
  • 1
    $ 189.93
Frequency Min (MHz)
700.0
Frequency Max (MHz)
2700.0
Power Handling (W)
30.0
Insertion Loss (dB)
0.5
Isolation (dB)
22.0
Amplitude Balance (dB)
0.2
Phase Imbalance ()
2.0
VSWR Input Max (dB)
19.08
Ports
2.0
Connector Input
SMA Female
P1PD-SAF-0812G10W-2
Coaxial RF 2-way power divider, frequency range 8 to 12 GHz, 10 Watts power handling , SMA female (jack) connectorrs.
Limited to stock on hand.
$ 209.92 $ 209.92 209.92000000000002 USD
Pricelist
Min. Qty
Price
  • 1
    $ 209.92
Frequency Min (MHz)
8000.0
Frequency Max (MHz)
12000.0
Power Handling (W)
10.0
Insertion Loss (dB)
1.0
Isolation (dB)
18.0
Amplitude Balance (dB)
0.3
Phase Imbalance ()
4.0
VSWR Input Max (dB)
15.56
Ports
2.0
Connector Input
SMA Female
P1PD-SAF-0408G10W-2
Coaxial RF 2-way Power Divider, frequency range 4 GHz to 8 GHz, with SMA female (jack) connectors.
Limited to stock on hand.
$ 219.38 $ 219.38 219.38 USD
Pricelist
Min. Qty
Price
  • 1
    $ 219.38
Frequency Min (MHz)
4000.0
Frequency Max (MHz)
8000.0
Power Handling (W)
10.0
Insertion Loss (dB)
0.7
Isolation (dB)
18.0
Amplitude Balance (dB)
0.3
Phase Imbalance ()
4.0
VSWR Input Max (dB)
15
Ports
2.0
Connector Input
SMA Female
