P1CA-SAMSAM-RG316-40
SMA Male to SMA Male cable using RG-316 RG Type Flex Coax, 40 inch.
Frequency DC to 6 GHz.
$ 26.95 $ 26.95 26.95 USD
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
RG-316
Cable_Feature
RG Type Flex
Length (in)
40.0
Outer Diameter (in)
0.098
Max. Frequency (GHz)
6.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4

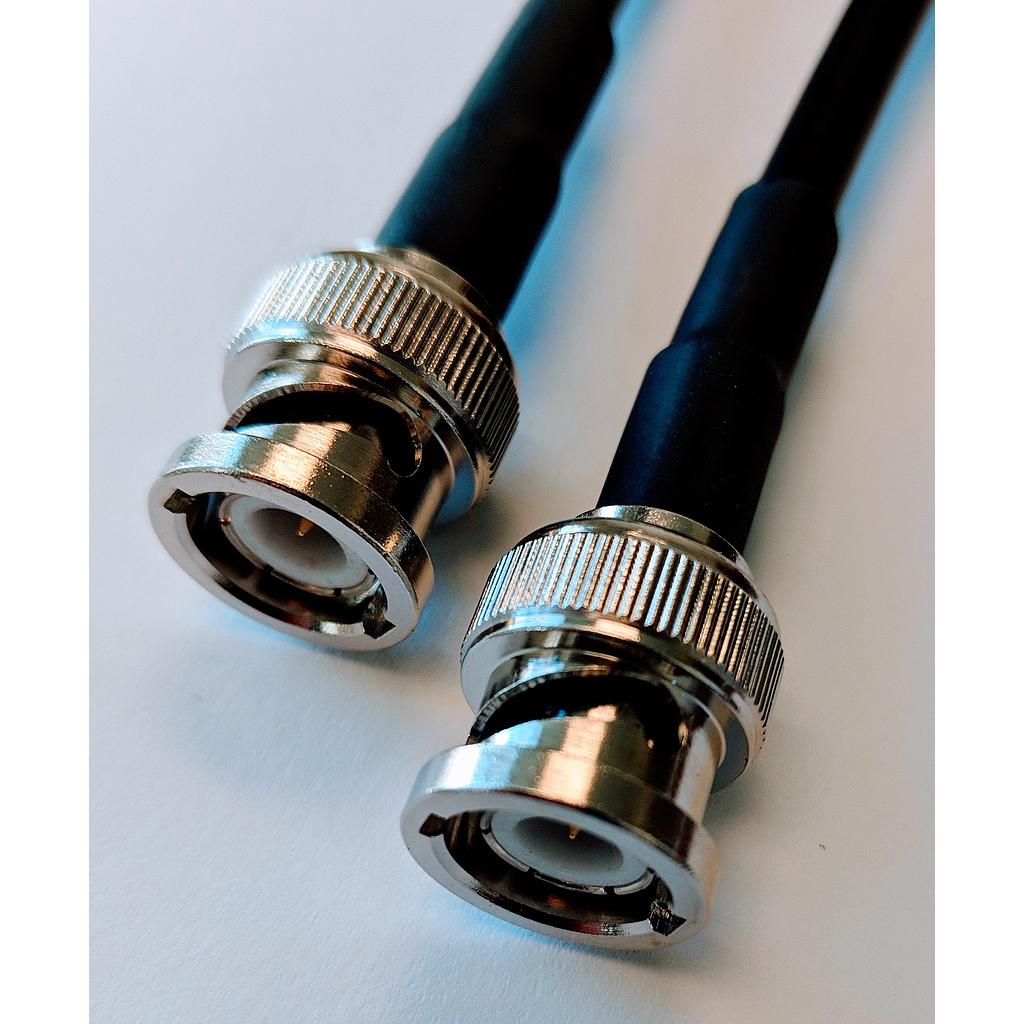

P1-BNCP/BNCP-RG58-24
BNC Plug to BNC Plug, RG58 flexible cable, 24 inch
$ 19.95 $ 19.95 19.95 USD
Connector 1
BNC Male
Connector 2
BNC Male
Cable Type
RG-58
Cable_Feature
RG Type Flex
Length (in)
24.0
Outer Diameter (in)
0.195
InnerCond
TPC 19/.0072
Dielectric Material
PE
JacketMat
PVC
MinBend
1.0
P1CA-SAFSAF-085CJ-12
SMA Female to SMA Female RF flex cable assembly, 085CJ formable flex cable, 12 inch.
$ 21.95 $ 21.95 21.95 USD
Connector 1
SMA Female
Connector 2
SMA Female
Cable Type
085CJ
Length (in)
12.0
Outer Diameter (in)
0.104
P1CA-SAFSAF-085CJ-6
SMA Female to SMA Female RF flex cable assembly, 085CJ hand formable flex cable, 6 inch.
$ 19.95 $ 19.95 19.95 USD
Pricelist
Min. Qty
Price
  • 25
    $ 15.48
Connector 1
SMA Female
Connector 2
SMA Female
Cable Type
085CJ
Length (in)
6.0
Outer Diameter (in)
0.104
P1-SAMSAM-141CJ-108
SMA Male to SMA Male cable assembly using 141CJ Conformable Coax, 108 inches long, Operating to 18 GHz.
$ 47.95 $ 47.95 47.95 USD
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
141CJ
Cable_Feature
Conformable
Length (in)
108.0
Outer Diameter (in)
0.168
Max. Frequency (GHz)
18.0
Data.F1
1.0
Data.F2
5.0
Data.F3
10.0
P1CA-29M29M-SS085-12-PM-SET16
Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors.
Length 12 inch. Phase matched within +/- 5 degrees DC to 20 GHz.
Supplied as a set of 16 matched cables. Price is per cable.
Test data supplied with each cable.
$ 119.85 $ 119.85 119.85000000000001 USD
Pricelist
Min. Qty
Price
  • 16
    $ 119.85
P1CA-SAMSPFRA-085CJ-2
SMA male to SMP female right angle, 085CJ jacketed formable coax, 2 inch.
$ 34.95 $ 34.95 34.95 USD
Connector 1
SMA Male
Connector 2
SMP Female Right Angle
Cable Type
085CJ
Cable_Feature
Conformable, Jacketed
Length (in)
2.0
Outer Diameter (in)
0.103
Max. Frequency (GHz)
18.0
P1CA-SAMSAM-SS141-6.5
SMA Male to SMA Male flex cable assembly, SS141 coax, 6.5 inch.
$ 49.58 $ 49.58 49.58 USD
Pricelist
Min. Qty
Price
  • 15
    $ 49.58
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
SS141
Length (in)
6.5
P1-BNCP/BNCP-141CJ-30
Cable Assembly, BNC Male to BNC Male, 141CJ Jacketed Conformable Coax, 30 inch.
$ 35.95 $ 35.95 35.95 USD
Connector 1
BNC Male
Connector 2
BNC Male
Cable Type
141CJ
Cable_Feature
Conformable, Jacketed
Length (in)
30.0
Outer Diameter (in)
0.161
Max. Frequency (GHz)
3.0
P1DB50-24M24M-36
Precision test cable, 2.4mm male to 2.4mm male,Phase-Flex stable cable, 36 inch.
Frequency DC to 50 GHz. VSWR 1.25 max.
Insertion loss 3.7 dB max DC to 50 GHz.
$ 0.00 0.0 USD
P1CA-SAFBUFP-U132-60
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, 1.32 mm diameter flex, 60 inch.
$ 22.95 $ 22.95 22.95 USD
Pricelist
Min. Qty
Price
  • 50
    $ 22.95
Connector 1
SMA Female
Connector 2
U.FL Male
Cable Type
U132
Cable_Feature
Flex, Ultra Small Diameter
Length (in)
60.0
P1CA-SAFSAM-085SRSS-8
Cable Assembly, SMA Female to SMA Male, .085 Stainless Steel Semi-rigid Coax, 8 inch.
Frequency DC - 18 GHz.
$ 48.65 $ 48.65 48.65 USD
Pricelist
Min. Qty
Price
  • 5
    $ 48.65
P1DB50-24M24M-24
Precision test cable, 2.4mm male to 2.4mm male, Phase-Flex stable cable, 24 inch.
Frequency DC to 50 GHz. VSWR 1.25 max.
Insertion loss 2.6 dB max DC to 50 GHz.
Armored flexible cable with extra durable injection molded boots at each connector.
$ 0.00 0.0 USD
P1CB-050-141-SSSW-P
Semi-rigid RF Cable, 50 Ohms, 0.141 inch semi-rigid with stainless steel outer conductor.
Priced and shipped in 1 meter lengths.
$ 55.44 $ 55.44 55.44 USD
Pricelist
Min. Qty
Price
  • 10
    $ 46.78
  • 30
    $ 41.24
Outer Diameter (in)
0.141
Dielectric Material
PTFE
Impedance (Ohms)
50.00
Inner Conductor Material
SPCW
Outer Jacket Material
304 Stainless Steel
P1CA-SAMPT-047SR-6
SMA Male to Pigtail (no connector) cable assembly, .047 inch semi rigid, 6 inch.
RF tested DC to 6 GHz.
$ 18.79 $ 18.79 18.79 USD
Pricelist
Min. Qty
Price
  • 1
    $ 18.79
  • 10
    $ 16.83
Connector 1
SMA Male
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
6.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
6.0
P1CA-SAFSAM-047SR-6
Cable Assembly, SMA Female to SMA Male, .047 inch diameter Semi-Rigid, 6 inch.
Frequency DC to 6 GHz.
$ 21.55 $ 21.55 21.55 USD
Pricelist
Min. Qty
Price
  • 10
    $ 21.55
P1CA-29M29M-SS085-60-PM-SET10
A set of 10 phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz.
Length 60 inch. Phase matched +/- 5 degrees at 1.575 MHz.
Supplied as a phase matched set (10 cables), test data included.. Price is per set.
$ 1,345.87 $ 1,345.87 1345.8700000000001 USD
P1CA-29M29M-SS085-24-PM-SET10
A set of 10 phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz.
Length 24 inch. Phase matched +/- 5 degrees at 1.575 MHz.
Supplied as a phase matched set (10 cables), test data included.. Price is per set.
$ 1,264.92 $ 1,264.92 1264.92 USD
P1CA-29M29M-SS085-12-PM-SET15
A set of 15 phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz.
Length 12 inch. Phase matched +/- 5 degrees at 1.575 MHz.
Supplied as a phase matched set (15 cables), test data included.. Price is per set.
$ 1,858.96 $ 1,858.96 1858.96 USD
P1CA-UFLPT-047CC-7
RF cable, U.FL to Pigtail (no connector), 047CC formable coax, 7 inch.
$ 48.77 $ 48.77 48.77 USD
Pricelist
Min. Qty
Price
  • 9
    $ 48.77
