P1CA-SAFBUFP-U132-60
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, 1.32 mm diameter flex, 60 inch.
$ 22.95 $ 22.95 22.95 USD
Pricelist
Min. Qty
Price
  • 25
    $ 22.95
Connector 1
SMA Female
Connector 2
U.FL Male
Cable Type
U132
Cable_Feature
Flex, Ultra Small Diameter
Length (in)
60.0
P1CA-SAFSAM-085SRSS-8
Cable Assembly, SMA Female to SMA Male, .085 Stainless Steel Semi-rigid Coax, 8 inch.
Frequency DC - 18 GHz.
$ 48.65 $ 48.65 48.65 USD
Pricelist
Min. Qty
Price
  • 5
    $ 48.65
P1DB50-24M24M-24
Precision test cable, 2.4mm male to 2.4mm male, Phase-Flex stable cable, 24 inch.
Frequency DC to 50 GHz. VSWR 1.25 max.
Insertion loss 2.6 dB max DC to 50 GHz.
Armored flexible cable with extra durable injection molded boots at each connector.
$ 537.60 $ 537.60 537.6 USD
P1CB-050-141-SSSW-P
Semi-rigid RF Cable, 50 Ohms, 0.141 inch semi-rigid with stainless steel outer conductor.
Priced and shipped in 1 meter lengths.
$ 55.44 $ 55.44 55.44 USD
Outer Diameter (in)
0.141
Dielectric Material
PTFE
Impedance (Ohms)
50.00
Inner Conductor Material
SPCW
Outer Jacket Material
304 Stainless Steel

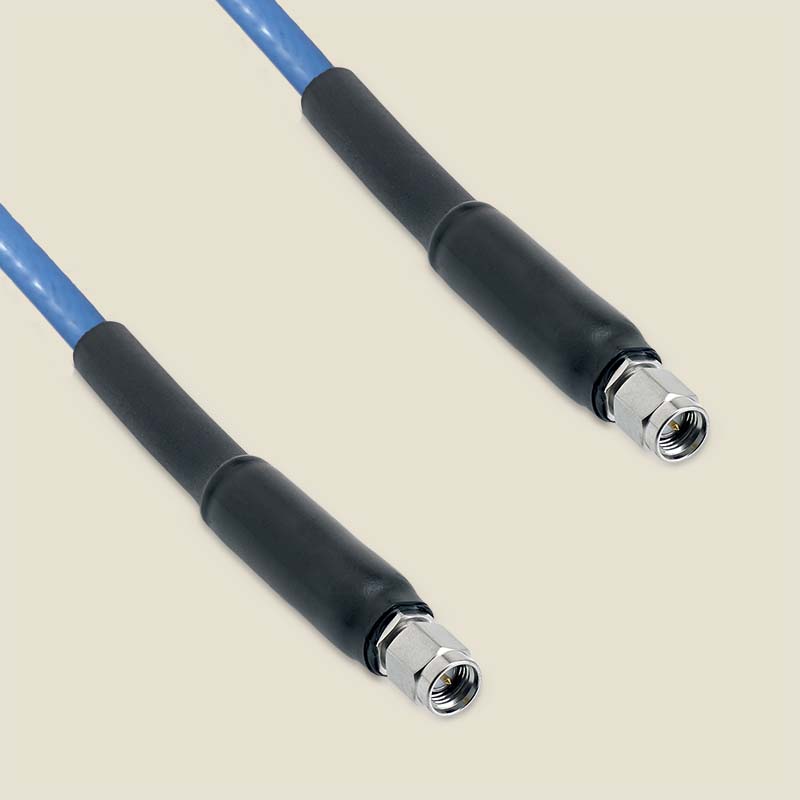

P1CA-SAMSAM-SS141-72
SMA Male to SMA Male test cable using SS141 High Performance Coax, 72 inch.
Frequency DC to 18 GHz.
$ 79.95 79.95 USD
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
SS141
Length (in)
72.0
Outer Diameter (in)
0.163
Data.F1
1.0
Data.F2
10.0
Data.F3
18.0
VSWR1
1.1
VSWR2
1.2
P1CA-SAMPT-047SR-6
SMA Male to Pigtail (no connector) cable assembly, .047 inch semi rigid, 6 inch.
RF tested DC to 6 GHz.
$ 18.79 $ 18.79 18.79 USD
Pricelist
Min. Qty
Price
  • 1
    $ 18.79
  • 10
    $ 16.83
Connector 1
SMA Male
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
6.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
6.0
P1CA-SAFSAM-047SR-6
Cable Assembly, SMA Female to SMA Male, .047 inch diameter Semi-Rigid, 6 inch.
Frequency DC to 6 GHz.
$ 21.55 $ 21.55 21.55 USD
Pricelist
Min. Qty
Price
  • 10
    $ 21.55
P1CA-29M29M-SS085-12-PM-SET15
A set of 15 phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz.
Length 12 inch. Phase matched +/- 5 degrees at 1.575 MHz.
Supplied as a phase matched set (15 cables), test data included.. Price is per set.
$ 1,858.96 $ 1,858.96 1858.96 USD

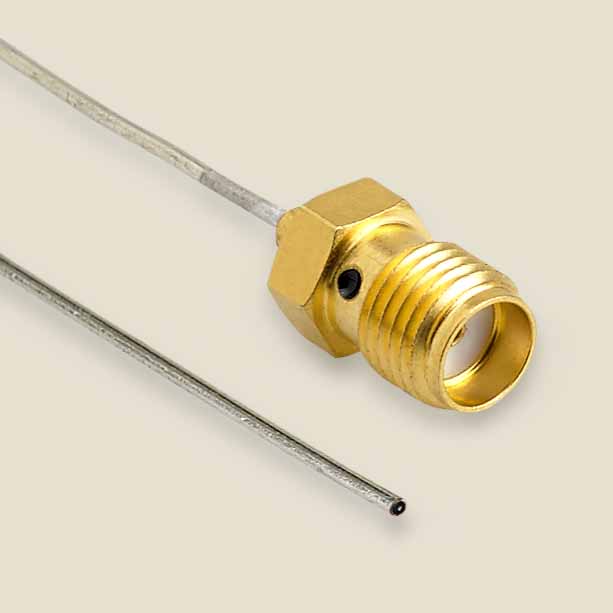

P1CA-SAFPT-034SR-1
SMA Female to Pigtail (no connector) cable assembly using 034SR Semi-Rigid Coax, 1 inch.
RF tested DC to 6 GHz.
$ 16.95 $ 16.95 16.95 USD
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
034SR
Cable_Feature
Semi-Rigid
Length (in)
1.0
Outer Diameter (in)
0.034
Max. Frequency (GHz)
6.0
Data.F1
1.0
Data.F2
3.0
Data.F3
5.0
P1CA-UFLPT-047CC-7
RF cable, U.FL to Pigtail (no connector), 047CC formable coax, 7 inch.
$ 48.77 $ 48.77 48.77 USD
Pricelist
Min. Qty
Price
  • 9
    $ 48.77
P1CA-SMFRAUFL-047CC-5
RF cable, SMPM female right angle to UFL, 047CC formable coax, 5 inch.
$ 68.90 $ 68.90 68.9 USD
Pricelist
Min. Qty
Price
  • 9
    $ 68.9
P1CA-SAMRASMF-047CC-5
RF cable, SMA male to SMPM female straight, 047CC formable coax, 5 inch.
$ 69.76 $ 69.76 69.76 USD
Pricelist
Min. Qty
Price
  • 3
    $ 69.76
P1CA-SAF35F-085CJ-6
RF flexible cable assembly, SMA Female to 3.5mm Female, 085CJ formable coaxial cable, 6 inch.
Frequency DC - 26.5 GHz.
$ 48.79 $ 48.79 48.79 USD
Pricelist
Min. Qty
Price
  • 10
    $ 48.79
Connector 1
SMA Female
Connector 2
3.5 mm Female
Cable Type
085CJ
Length (in)
6.0
P1CA-SPFRAUFL-U137-4
Cable Assembly, SMP female right angle to U.FL Right Angle Plug, 1.37 mm flex cable, 4 inch.
Frequency DC to 6 GHz.













$ 37.25 $ 37.25 37.25 USD
Pricelist
Min. Qty
Price
  • 1
    $ 37.25
  • 10
    $ 35.92
P1-SMAJ/PIGTAIL-047SR-1
Trimmed Pigtail, .047 semi rigid, 1 inch.
SMA female to Pigtail (no connector).
RF tested DC to 6 GHz.
$ 17.95 $ 17.95 17.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 17.95
  • 50
    $ 17.12
Connector 1
SMA Female
Cable Type
047SR
Length (in)
1.0
P1CA-SAMSPF-085CJ-36
Cable Assembly, SMA Male to SMP Female, 085CJ Jacketed Conformable Coax, 36 inch.
$ 38.95 $ 38.95 38.95 USD
Connector 1
SMA Male
Connector 2
SMP Female
Cable Type
085CJ
Cable_Feature
Conformable, Jacketed
Length (in)
36.0
Outer Diameter (in)
0.103
Max. Frequency (GHz)
18.0

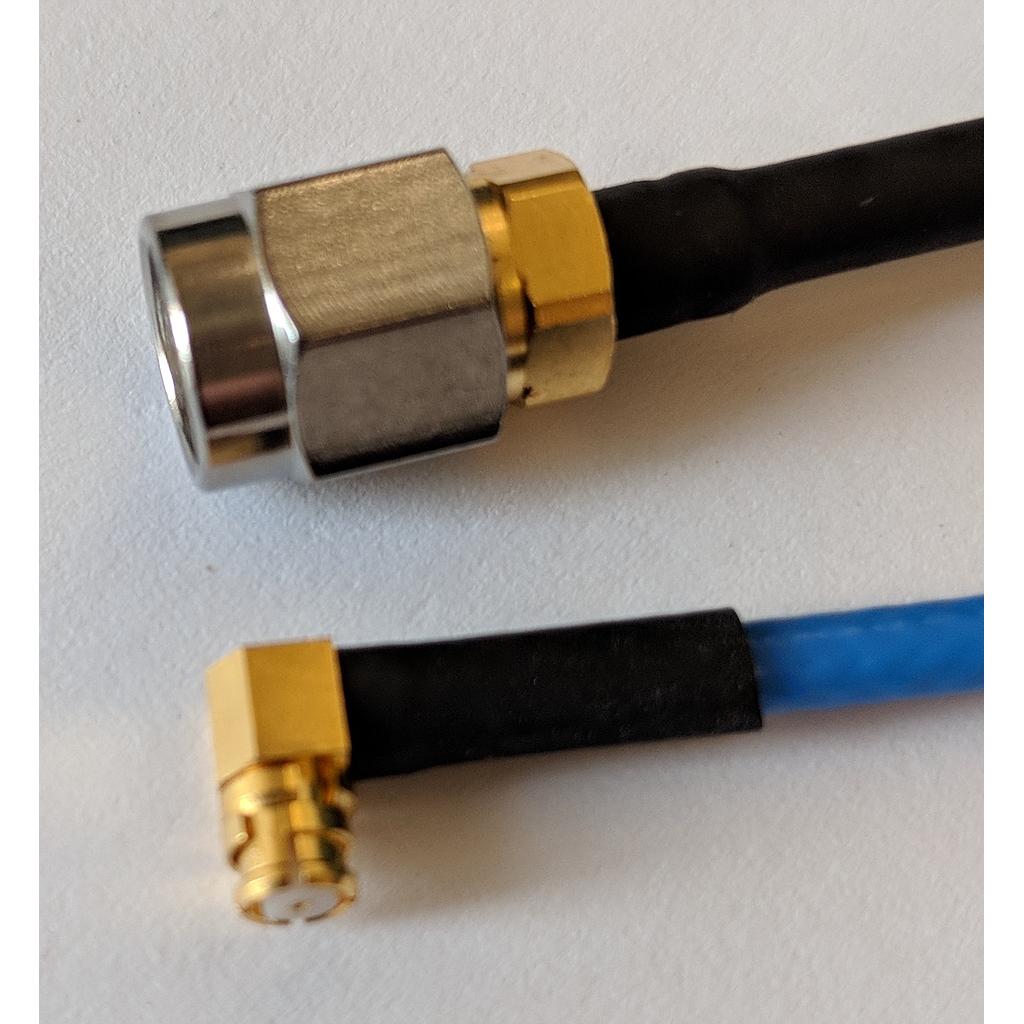

P1CA-SAMSPFRA-SS085-60
SMA Male to SMP Female Right Angle RF flex cable using SS085 High Performance Coax, 60 inch.
Frequency DC to 18 GHz.
$ 73.95 $ 73.95 73.95 USD
Pricelist
Min. Qty
Price
  • 60
    $ 68.4
Connector 1
SMA Male
Connector 2
SMP Female Right Angle
Cable Type
SS085
Length (in)
60.0
Outer Diameter (in)
0.104
Max. Frequency (GHz)
18.0
Data.F1
1.0
Data.F2
5.0
Data.F3
10.0
Data.F4
18.0
P1CA-SAMUFL-RG178-6-PM
Cable Assembly, SMA Male to U.FL Right Angle Plug, RG178, 6 inches.
Supplied as phase matched pairs (2 cables). Matched at 245.76 MHz, +/-2 degrees.
Test data supplied with each matched pair.
Price is per cable. Order in multiples of 2 (2, 4, 6, etc.).
$ 36.78 $ 36.78 36.78 USD
Pricelist
Min. Qty
Price
  • 10
    $ 36.78
  • 20
    $ 32.45
P1CA-29M29M-SS085-24-PM-SET10
Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating DC to 40 GHz.
Length 24 inch. Phase matched +/- 5 degrees at 18 GHz.
Supplied as a phase matched set of 10 cables.
Test data included.
$ 1,264.92 $ 1,264.92 1264.92 USD
P1CA-SAMSAM-SS141-3-PM-SET4
Phase matched set of 4 cables, SMA Male to SMA Male, low loss phase stable flexible coax, 3 inch length.
Frequency DC to 18 GHz.
Supplied as a set of 4 cables phase matched +/- 5 degrees at 10 GHz.
Priced as a set of 4 cables.
Test data included.
$ 358.22 $ 358.22 358.22 USD
Pricelist
Min. Qty
Price
  • 5
    $ 358.22
