P1CA-UFLPT-047CC-7
RF cable, U.FL to Pigtail (no connector), 047CC formable coax, 7 inch.
$ 48.77 $ 48.77 48.77 USD
Pricelist
Min. Qty
Price
  • 9
    $ 48.77
P1CA-SMFRAUFL-047CC-5
RF cable, SMPM female right angle to UFL, 047CC formable coax, 5 inch.
$ 68.90 $ 68.90 68.9 USD
Pricelist
Min. Qty
Price
  • 9
    $ 68.9
P1CA-SAMRASMF-047CC-5
RF cable, SMA male to SMPM female straight, 047CC formable coax, 5 inch.
$ 69.76 $ 69.76 69.76 USD
Pricelist
Min. Qty
Price
  • 3
    $ 69.76
P1CA-SAF35F-085CJ-6
RF flexible cable assembly, SMA Female to 3.5mm Female, 085CJ formable coaxial cable, 6 inch.
Frequency DC - 26.5 GHz.
$ 48.79 $ 48.79 48.79 USD
Pricelist
Min. Qty
Price
  • 10
    $ 48.79
Connector 1
SMA Female
Connector 2
3.5 mm Female
Cable Type
085CJ
Length (in)
6.0
P1CA-SPFRAUFL-U137-4
Cable Assembly, SMP female right angle to U.FL Right Angle Plug, 1.37 mm flex cable, 4 inch.
Frequency DC to 6 GHz.













$ 37.25 $ 37.25 37.25 USD
Pricelist
Min. Qty
Price
  • 1
    $ 37.25
  • 10
    $ 35.92
P1-SMAJ/PIGTAIL-047SR-1
Trimmed Pigtail, .047 semi rigid, 1 inch.
SMA female to Pigtail (no connector).
RF tested DC to 6 GHz.
$ 17.95 $ 17.95 17.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 17.95
  • 50
    $ 17.12
Connector 1
SMA Female
Cable Type
047SR
Length (in)
1.0
P1CA-SAMSPF-085CJ-36
Cable Assembly, SMA Male to SMP Female, 085CJ Jacketed Conformable Coax, 36 inch.
$ 38.95 $ 38.95 38.95 USD
Connector 1
SMA Male
Connector 2
SMP Female
Cable Type
085CJ
Cable_Feature
Conformable, Jacketed
Length (in)
36.0
Outer Diameter (in)
0.103
Max. Frequency (GHz)
18.0
P1CA-SAMSPFRA-SS085-60
SMA Male to SMP Female Right Angle RF flex cable using SS085 High Performance Coax, 60 inch.
Frequency DC to 18 GHz.
$ 73.95 $ 73.95 73.95 USD
Pricelist
Min. Qty
Price
  • 60
    $ 68.4
Connector 1
SMA Male
Connector 2
SMP Female Right Angle
Cable Type
SS085
Length (in)
60.0
Outer Diameter (in)
0.104
Max. Frequency (GHz)
18.0
Data.F1
1.0
Data.F2
5.0
Data.F3
10.0
Data.F4
18.0
P1CA-SAMUFL-RG178-6-PM
Cable Assembly, SMA Male to U.FL Right Angle Plug, RG178, 6 inches.
Supplied as phase matched pairs (2 cables). Matched at 245.76 MHz, +/-2 degrees.
Test data supplied with each matched pair.
Price is per cable. Order in multiples of 2 (2, 4, 6, etc.).
$ 36.78 $ 36.78 36.78 USD
Pricelist
Min. Qty
Price
  • 10
    $ 36.78
  • 20
    $ 32.45
P1CA-29M29M-SS085-24-PM-SET10
Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating DC to 40 GHz.
Length 24 inch. Phase matched +/- 5 degrees at 18 GHz.
Supplied as a phase matched set of 10 cables.
Test data included.
$ 1,264.92 $ 1,264.92 1264.92 USD
P1CA-SAMSAM-SS141-3-PM-SET4
Phase matched set of 4 cables, SMA Male to SMA Male, low loss phase stable flexible coax, 3 inch length.
Frequency DC to 18 GHz.
Supplied as a set of 4 cables phase matched +/- 5 degrees at 10 GHz.
Priced as a set of 4 cables.
Test data included.
$ 358.22 $ 358.22 358.22 USD
Pricelist
Min. Qty
Price
  • 5
    $ 358.22
P1CA-2SCM-F310-15-PM-1PS
RF flexible cable assembly, SC Male to SC Male, 0.310 inch flexible coaxial cable, 15 inch.
Supplied as Time Delay (skew) matched cable pairs.
Time delay +/- 1 ps max from DC to 4.0 GHz.
POWER RATING: 1.9GHz-4GHz - 300 Watts CW
1.9GHz-2.7GHz - 5kW, 2% Duty Cycle, PW 100us MAX
2.7GHz-4GHz - 10kW, 3% Duty Cycle, PW 100us MAX
S parameter data included. Price is per matched pair (2 cables).
$ 688.70 $ 688.70 688.7 USD
Pricelist
Min. Qty
Price
  • 2
    $ 688.7

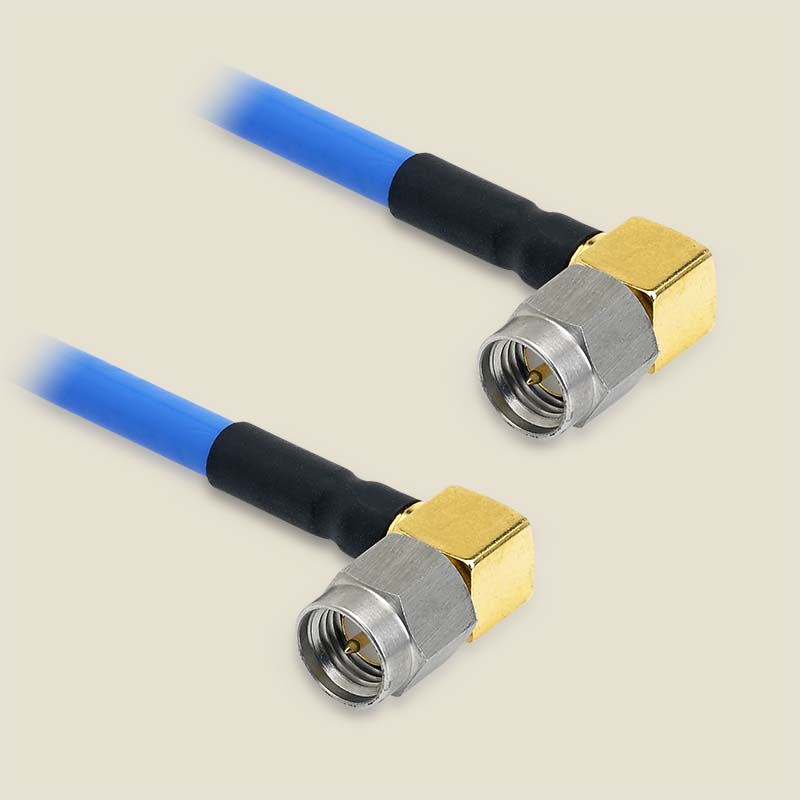

P1-SMAPRA/SMAPRA-141CJ-4
SMA Male Right Angle to SMA Male Right Angle cable assembly using 141CJ Jacketed Conformable Coax, 3 inches long, Operating to 18 GHz.
$ 18.95 $ 18.95 18.95 USD
Connector 1
SMA Male Right Angle
Connector 2
SMA Male Right Angle
Cable Type
141CJ
Cable_Feature
Jacketed Conformable
Length (in)
3.0
Outer Diameter (in)
0.168
Max. Frequency (GHz)
18.0
Data.F1
1.0
Data.F2
5.0
Data.F3
10.0
