    P1CA-24M24M-130F-1M
    P1CA-24M24M-130F-1M
    Flexible 50 Ohm cable assembly, 2.4mm male to 2.4mm male, 130F flexible coax, 1 meter
    Frequency DC to 50 GHz.
    $ 249.88
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 249.88
    • 5.0
      $ 241.27
    P1CA-24M24M-130F-100CM
    P1CA-24M24M-130F-100CM
    Flexible 50 Ohm cable assembly, 2.4mm male to 2.4mm male, 130F flexible coax, 1 meter (100 cm).
    Frequency DC to 50 GHz, typical VSWR 1.30.
    $ 269.75
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 269.75
    • 10.0
      $ 248.15
    P1CA-24M24M-130F-12-PM-1PS
    P1CA-24M24M-130F-12-PM-1PS
    Phase matched pair of cable assemblies (2) , 2.4mm male to 2.4mm male, 130F flexible coax, 12 inch.
    Phase matched +/- 1 ps. Frequency DC to 50 GHz.
    Supplied as a skew (delay) matched pair (min order 2 pcs).
    Price is per cable.
    Each matched pair includes S-Parameter data.
    Note: Quantity ordered must be in multiples of 2 (2,4, 6 etc).
    $ 279.65
    Pricelist
    Min. Qty
    Price
    • 2.0
      $ 279.65

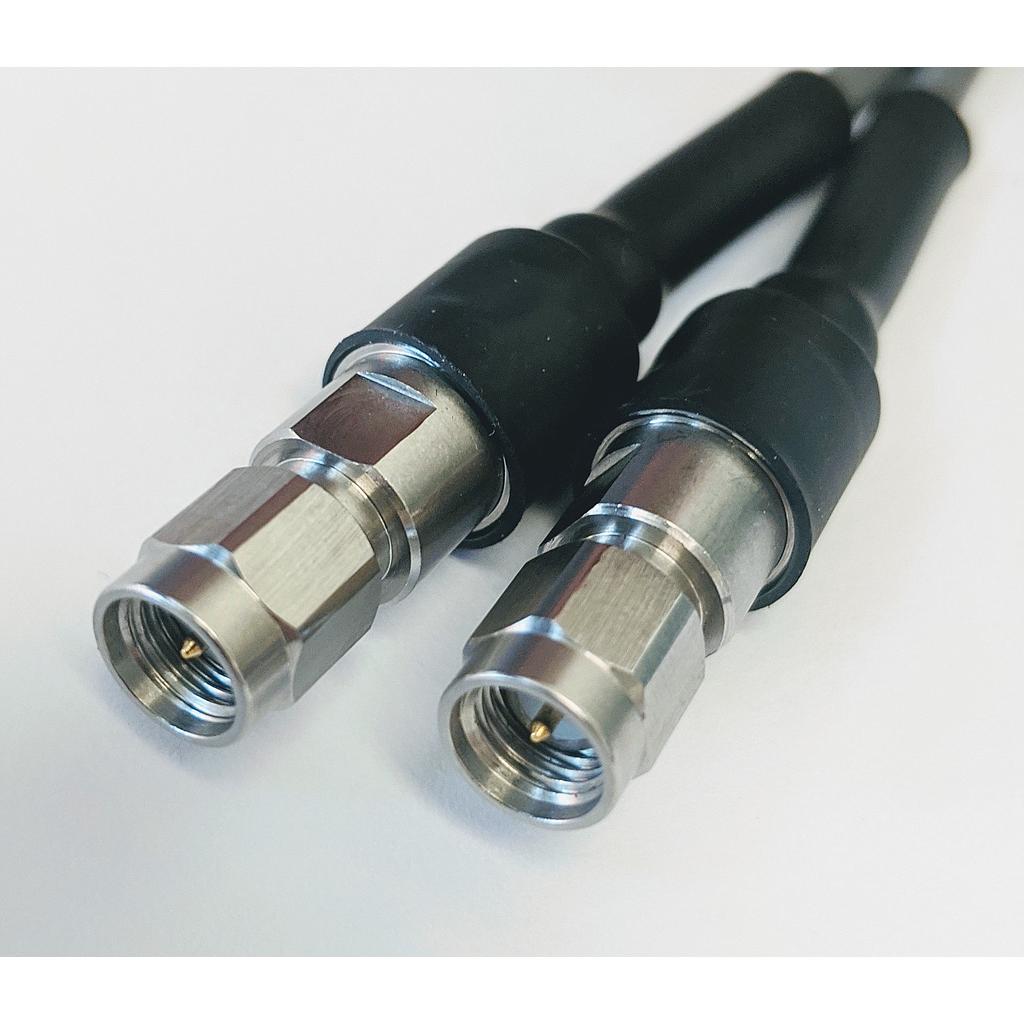

    P1CA-24M24M-130F-24-PM-1PS
    P1CA-24M24M-130F-24-PM-1PS
    Phase matched cable assemblies, 2.4mm male to 2.4mm male, 130F flexible coax, 24 inch.
    Phase matched +/- 1 ps. Frequency DC to 50 GHz.
    Supplied as skew (delay) matched pairs (min buy quantity 2 pcs). Price is per cable.
    Contact P1dB for larger matched sets of cables (>2).
    Each set includes S-Parameter data.
    $ 286.68
    Pricelist
    Min. Qty
    Price
    • 2.0
      $ 286.68
    P1CA-SPFSPF-F090-12-PM-1PS
    P1CA-SPFSPF-F090-12-PM-1PS
    RF flexible cable assembly, SMP female straight to SMP female straight, 0.090 inch flexible coaxial cable, 12 inch.
    Phase matched cable pairs.
    Phase matched +/- 1 picosecond DC to 26.5 GHz.
    $ 183.92
    Pricelist
    Min. Qty
    Price
    • 2.0
      $ 183.92
    P1CA-SAMSAM-F140-36-PM-1PS
    P1CA-SAMSAM-F140-36-PM-1PS
    RF flexible cable assembly, SMA Male to SMA Male, 0.140 inch flexible coaxial cable, 36 inch.
    Supplied as skew matched cable pairs. Contact P1dB for larger quantity matched sets (>2 cables).
    Time delay +/- 1 ps max from DC to 26.5 GHz.
    S parameter data included. Price is per cable, minimum order 2 cables.
    $ 287.56
    Pricelist
    Min. Qty
    Price
    • 2.0
      $ 287.56
    P1CA-SAMSAM-F140-24-PM-1PS
    P1CA-SAMSAM-F140-24-PM-1PS
    RF flexible cable assembly, SMA Male to SMA Male, 0.140 inch flexible coaxial cable, 24 inch.
    Phase matched cable pairs.
    Supplied as skew (delay) matched sets (min buy 2 pcs) +/- 1 ps.
    Frequency DC to 26.5 GHz.
    S Parameter data supplied with each set.
    $ 203.34
    Pricelist
    Min. Qty
    Price
    • 2.0
      $ 203.34
    P1AD-10M18F
    P1AD-10M18F
    Precsision RF Adapter, 1.0mm male to 1.85mm female, DC to 67 GHz.
    VSWR 1.35 max to 67 GHz.
    $ 385.89
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 385.89
    Connector 1
    1.00mm Male
    Connector 2
    1.85mm Female
    Impedance
    50.0
    Frequency (GHz)
    67 GHz
    Max VSWR
    1.35 to 67 GHz
    P1CA-SAFSAF-020SR-12
    P1CA-SAFSAF-020SR-12
    Cable Assembly, SMA Female to SMA Female, .020 diameter Semi-Rigid Coax, 12 inches
    $ 45.95
    P1AD-29MFRA-1.25
    P1AD-29MFRA-1.25
    RF Adapter, 2.92mm Male to 2.92mm Female, mitered right angle.
    Operating DC to 40 GHz with a 1.25 maximum VSWR.
    $ 222.89
    P1CO-18FEL-07/12-LP
    P1CO-18FEL-07/12-LP
    1.85 mm female end launch PCB connector, low profile, .007 inch (0.18 mm) diameter pin.
    Frequency to 67 GHz.
    $ 129.25
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 129.25
    • 10.0
      $ 112.64
    P1CO-MMXJ-PCB
    P1CO-MMXJ-PCB
    RF connector, MMCX Jack, PCB mount straight.
    $ 5.97
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 5.97
    • 25.0
      $ 5.24
    Max. Frequency (GHz)
    6.0
    Connector Type
    MMCX Jack
    Impedance (Ohms)
    50.0
    Mounting Style
    PCB
    P1CO-SAFE-T020-G068
    P1CO-SAFE-T020-G068
    SMA Connector, Female Edge Mount for .068 inch PCB, with a .020 inch wide tab contact.
    Frequency to 18 GHz
    $ 6.65
    Max. Frequency (GHz)
    18.0
    Feature
    .068 inch PCB
    Gender
    Female
    Termination Style
    Solder
    Termination Type
    Edge Launch PCB

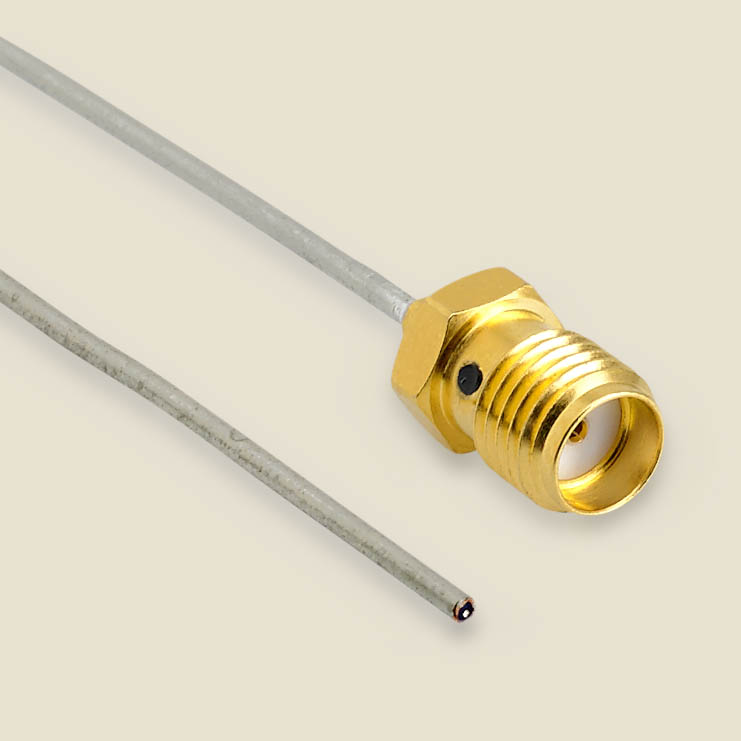

    P1CA-SAFPT-047SR-3-12G
    P1CA-SAFPT-047SR-3-12G
    Extended frequency RF Test Probe.
    SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 3 inch.
    RF tested to 12 GHz with VSWR 1.40 max.
    $ 19.98
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 19.98
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    047SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    3.0
    Outer Diameter (in)
    0.047
    Max. Frequency (GHz)
    12.0

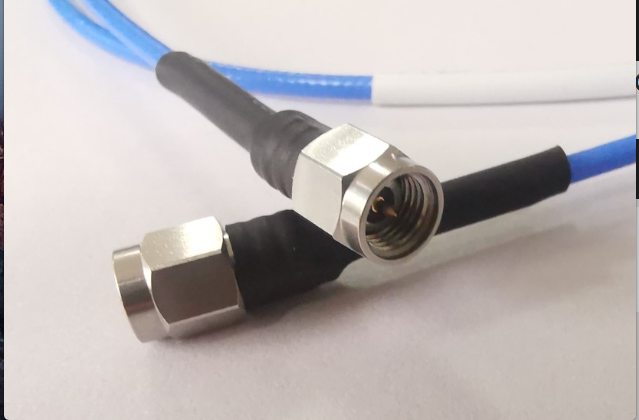

    P1CA-29M29M-SS085-60-PM
    P1CA-29M29M-SS085-60-PM
    Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz.
    Length 60 inch. Phase matched +/- 5 degrees to 18 GHz.
    Supplied as a phase matched pair (2 cables), test data included.. Price is per cable. Typical lead time is 4 weeks.
    Contact P1dB if you require a larger quantity of cables as a phase matched set.
    $ 137.48
    Pricelist
    Min. Qty
    Price
    • 2.0
      $ 137.48
    P1CA-29M29M-SS085-24-PM
    P1CA-29M29M-SS085-24-PM
    Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz.
    Length 24 inch. Phase matched +/- 5 degrees at 18 GHz.
    Supplied as phase matched pairs (2).
    Priced per cable. Test data included.
    $ 114.89
    Pricelist
    Min. Qty
    Price
    • 2.0
      $ 114.89
    P1CA-SAF2PT-047SR-4-12G
    P1CA-SAF2PT-047SR-4-12G
    Extended frequency RF Test Probe.
    SMA Female 2 Hole Flange to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 4 inch.
    Operating up to 12 GHz with VSWR 1.4 max.
    $ 19.98
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 19.98
    Connector 1
    SMA Female 2-Hole Flange
    Connector 2
    Pigtail - No Connector
    Cable Type
    047SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    4.0
    Outer Diameter (in)
    0.047
    Max. Frequency (GHz)
    12.0
    P1CA-SAF2PT-047SR-2-12G
    P1CA-SAF2PT-047SR-2-12G
    Extended frequency RF Test Probe.
    SMA Female 2 Hole Flange to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 2 inch.
    RF tested DC to 12 GHz with VSWR 1.4 max.
    $ 19.98
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 19.98
    Connector 1
    SMA Female 2-Hole Flange
    Connector 2
    Pigtail - No Connector
    Cable Type
    047SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    2.0
    Outer Diameter (in)
    0.047
    Max. Frequency (GHz)
    12.0
    P1CO-SAF-047SR
    P1CO-SAF-047SR
    Connector, SMA Female for .047 semi rigid cable.
    $ 11.89
    Gender
    Female
    Termination Style
    Solder
    Termination Type
    .047SR
    P1CA-SPFUFL-U137-6
    P1CA-SPFUFL-U137-6
    Cable Assembly, SMP female straight to U.FL Right Angle Plug, flex 1.37mm cable, 6 inches.
    $ 29.68
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 29.68
