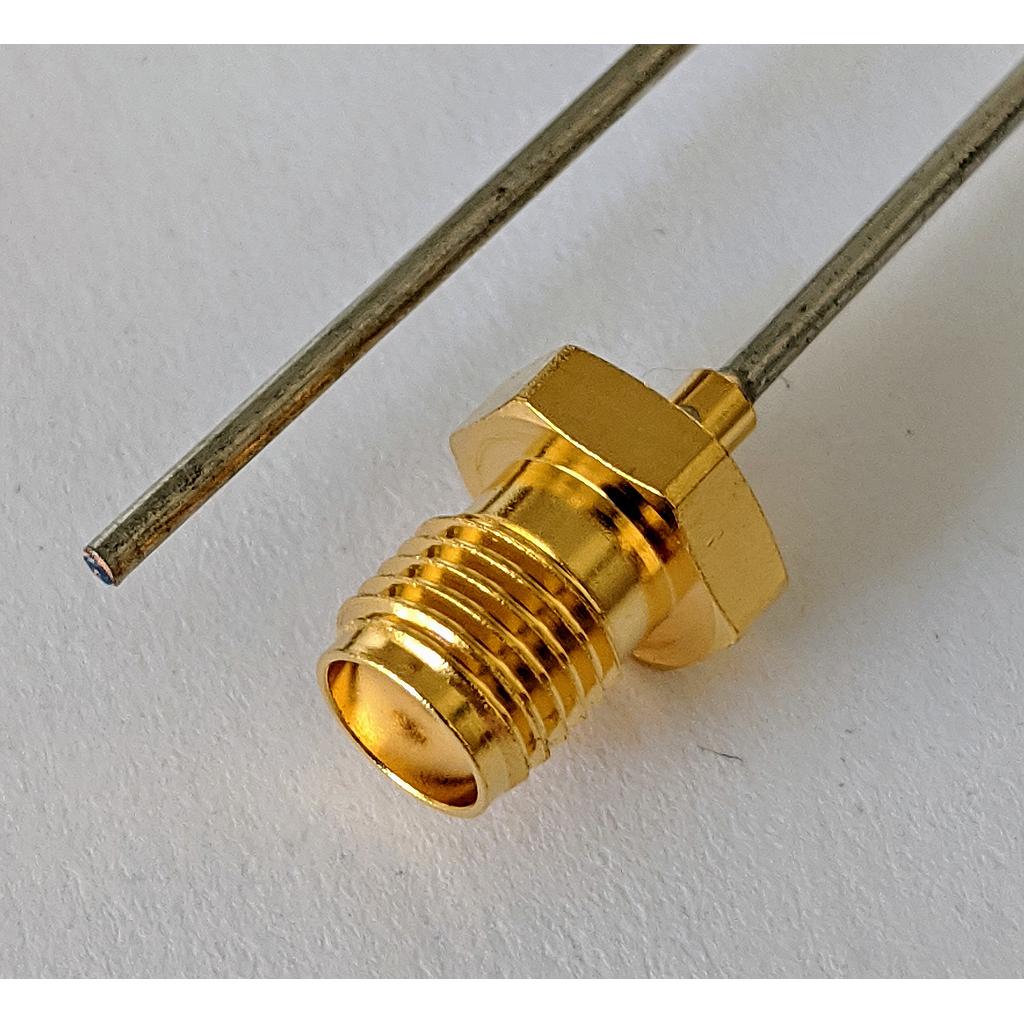

P1CA-SAFPT-047SR-2-12G Extended frequency RF Test Probe. SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 2 inch. RF tested to 12 GHz with VSWR 1.4 max. ~~$ 19.98~~ $ 19.98 19.98 USD Pricelist Min. Qty Price 1 $ 19.98 Connector 1 SMA Female Connector 2 Pigtail - No Connector Cable Type 047SR Cable_Feature Semi-Rigid Length (in) 2.0 Outer Diameter (in) 0.047 Max. Frequency (GHz) 12.0	P1CA-SAMSAM-SS141-12-PM RF cable assembly, SMA Male to SMA Male, SS141 flexible coaxial cable, 12 inch. Supplied as a phase matched cable pair (2 cables minimum buy). Price is per cable. Cable pairs matched +/- 5 degrees at 10 GHz, operating to 18 GHz. Contact P1dB for matched sets > quantity 2. ~~$ 93.78~~ $ 93.78 93.78 USD Pricelist Min. Qty Price 2 $ 93.78	P1CA-SAMSAM-SS141-24-PM RF cable assembly, SMA Male to SMA Male, SS141 flexible coaxial cable, 24 inch. Supplied as phase matched cable pairs (2 cables ). Match is +/- 5 degrees at 10 GHz, operating to 18 GHz. Price is per cable, minimum order 2 cables. Contact P1dB for matched cale sets > 2. ~~$ 109.75~~ $ 109.75 109.75 USD Pricelist Min. Qty Price 2 $ 109.75	P1CA-SAMSAM-SS141-48-PM RF cable assembly, SMA Male to SMA Male, SS141 flexible coaxial cable, 48 inch. Supplied as TBD # of cables phase matched +/- 5 degrees at 10 GHz, operating to 18 GHz. ~~$ 139.55~~ $ 139.55 139.55 USD Pricelist Min. Qty Price 2 $ 139.55
P1-MMXP/UFL-RG178-10 Flexible cable assembly, MMCX plug (male) to U.FL right angle plug (male), RG178, 10 inch. ~~$ 13.95~~ $ 13.95 13.950000000000001 USD	P1CA-SPFUFL-U137-2 Cable Assembly, SMP female straight to U.FL Right Angle Plug, flex 1.37mm cable, 2 inches. ~~$ 29.68~~ $ 29.68 29.68 USD Pricelist Min. Qty Price 1 $ 29.68	P1AD-SAMM-27 RF Adapter, SMA male (plug) to SMA male (plug) , up to 27 GHz. VSWR 1.15 maximum. ~~$ 35.95~~ $ 35.95 35.95 USD Pricelist Min. Qty Price 10 $ 31.55 Connector 1 SMA Male Connector 2 SMA Male Angle Straight Impedance 50.0	P1AD-SAFM-27 RF Adapter, SMA female (jack) to SMA male (plug) , up to 27 GHz. VSWR 1.15 maximum. ~~$ 35.95~~ $ 35.95 35.95 USD Pricelist Min. Qty Price 1 $ 35.95 10 $ 34.91 Connector 1 SMA Female Connector 2 SMA Male Angle Straight Impedance 50.0
P1AD-SAFF-27 RF Adapter, SMA female (jack) to SMA female (jack), up to 27 GHz. VSWR 1.15 maximum. ~~$ 35.95~~ $ 35.95 35.95 USD Pricelist Min. Qty Price 1 $ 35.95 Connector 1 SMA Female Connector 2 SMA Female Angle Straight Impedance 50.0	P1CO-SAFEL-05/09-LP SMA female end launch PCB connector, low profile, .005 inch (0.13mm) diameter pin. ~~$ 69.78~~ $ 69.78 69.78 USD Pricelist Min. Qty Price 1 $ 69.78 10 $ 57.44	P1CO-18FEL-05/09-LP 1.85 mm female end launch PCB connector, low profile, .005 inch (0.13mm) diameter pin. Frequency DC to 67 GHz. ~~$ 129.25~~ $ 129.25 129.25 USD Pricelist Min. Qty Price 1 $ 129.25 10 $ 112.64	P1CO-24FEL-05/09-LP 2.4 mm female end launch PCB connector, low profile, .005 inch (0.13mm) diameter pin. Operating DC to 50 GHz. ~~$ 82.78~~ $ 82.78 82.78 USD Pricelist Min. Qty Price 1 $ 82.78 25 $ 73.25

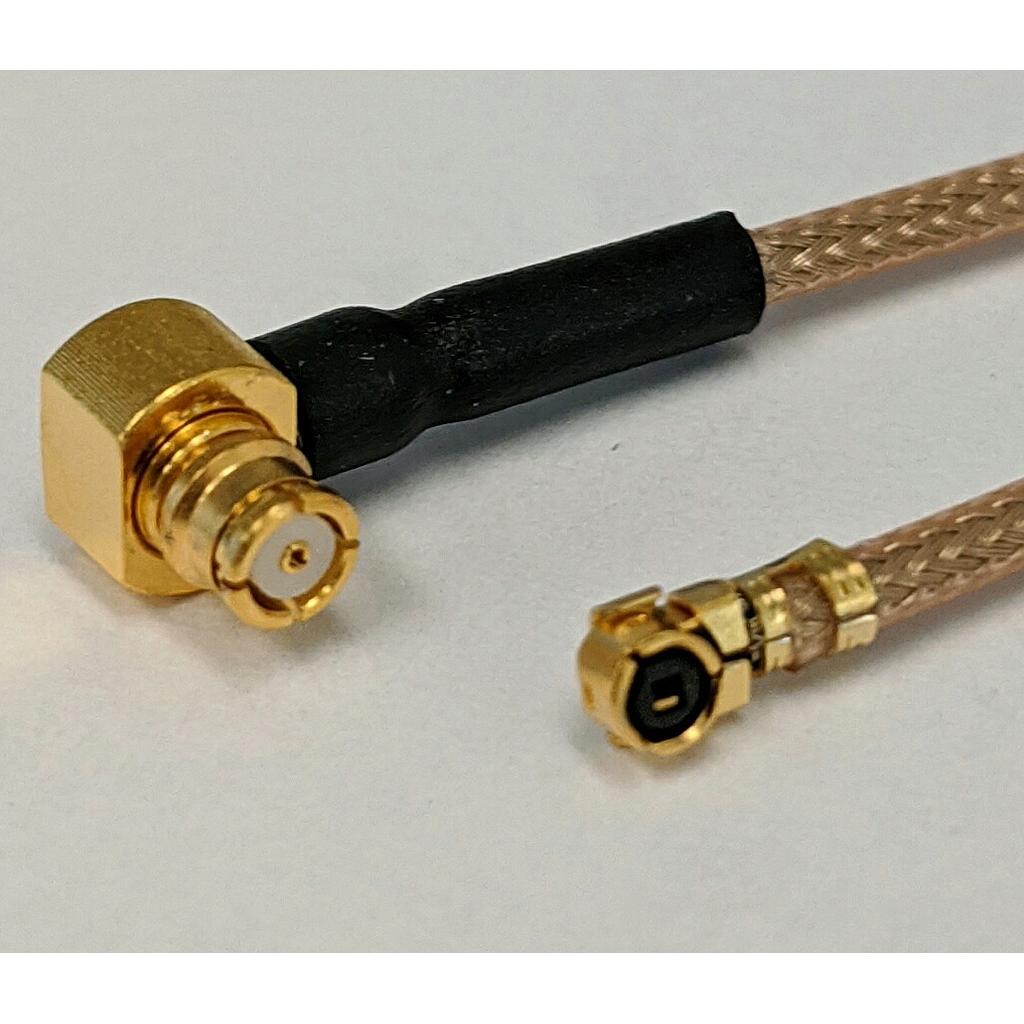

P1CA-SPFRAUFL-RG178-6 Cable Assembly, SMP female right angle to U.FL Right Angle Plug, RG178, 6 inches, measured connector center line to center line. ~~$ 37.25~~ $ 37.25 37.25 USD Pricelist Min. Qty Price 1 $ 37.25 25 $ 29.84	P1CA-29M29M-085CJ-2.5 2.92mm Male to 2.92mm Male RF flex cable using Flexiform 085 hand formable cable, 2.5 inches long, Operating to 40 GHz. ~~$ 48.86~~ $ 48.86 48.86 USD Connector 1 2.92mm Male Connector 2 2.92mm Male Cable Type Flexiform 085 Cable_Feature High Performance Length (in) 2.5 Outer Diameter (in) 0.104 Max. Frequency (GHz) 40.0 Data.F1 1.0 Data.F2 18.0 Data.F3 30.0	P1CA-29M29M-400PT-72 Precision test cable, 2.92mm Male to 2.92mm Male, 400PT Phase-Flex stable cable, 72 inch, operating to 40 GHz. Typical lead time is 4 weeks. ~~$ 658.42~~ $ 658.42 658.42 USD	P1-SAMSAM-141CJ-96 SMA Male to SMA Male cable assembly using 141CJ Conformable Coax, 96 inches long, Operating to 18 GHz. ~~$ 46.95~~ $ 46.95 46.95 USD Connector 1 SMA Male Connector 2 SMA Male Cable Type 141CJ Cable_Feature Conformable Length (in) 96.0 Outer Diameter (in) 0.168 Max. Frequency (GHz) 18.0 Data.F1 1.0 Data.F2 5.0 Data.F3 10.0

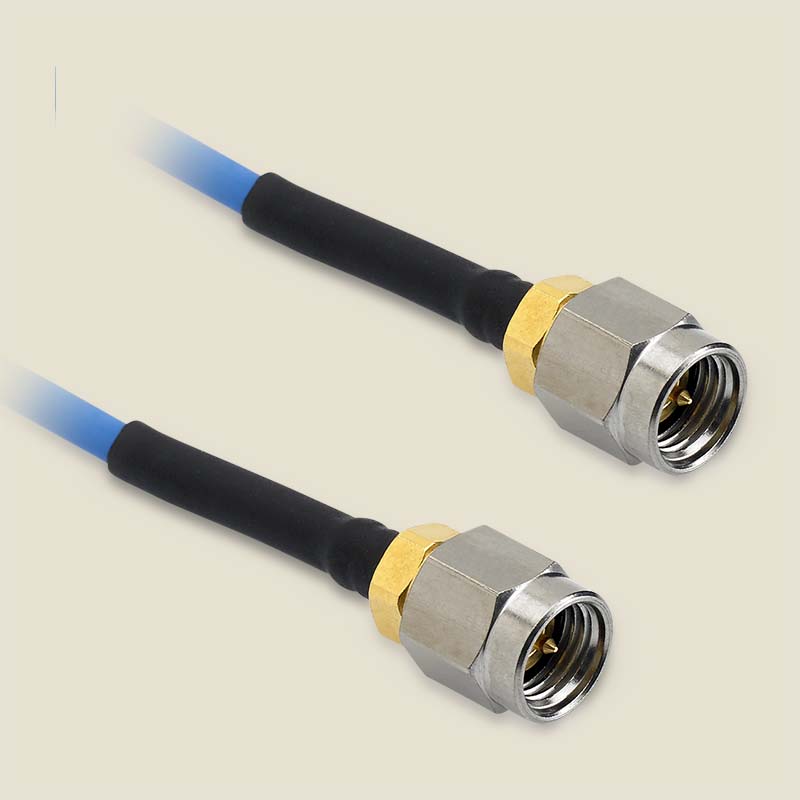

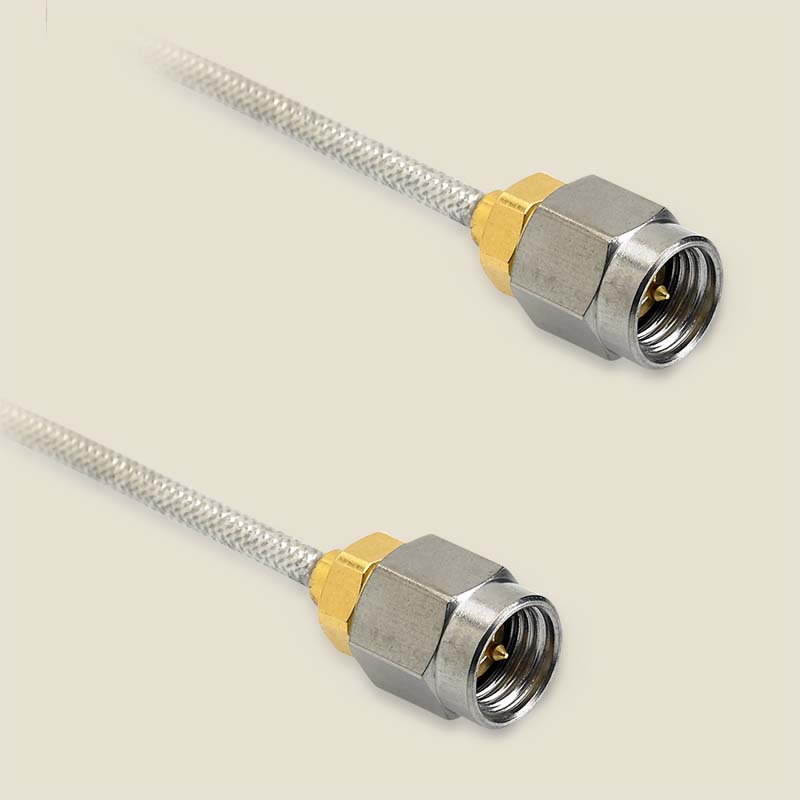

P1CA-SAMSAM-085CJ-96 SMA Male to SMA Male cable assembly using 085CJ Jacketed Conformable Coax, 96 inch ~~$ 47.75~~ $ 47.75 47.75 USD Pricelist Min. Qty Price 1 $ 47.75 Connector 1 SMA Male Connector 2 SMA Male Cable Type 085CJ Cable_Feature Jacketed Conformable Length (in) 96.0 Outer Diameter (in) 0.102 Max. Frequency (GHz) 26.5 Data.F1 1.0 Data.F2 5.0 Data.F3 10.0	P1CA-SAMSAM-085CC-96 SMA Male to SMA Male cable assembly using 085CC Conformable Coax, 96 inch ~~$ 41.75~~ $ 41.75 41.75 USD Connector 1 SMA Male Connector 2 SMA Male Cable Type 085CC Cable_Feature Conformable Length (in) 96.0 Outer Diameter (in) 0.085 Max. Frequency (GHz) 26.5 Data.F1 1.0 Data.F2 5.0 Data.F3 10.0	P1CA-SAMSAM-141CJ-72 SMA Male to SMA Male cable assembly using 141CJ Conformable Coax, 72 inches long, Operating to 26.5 GHz. ~~$ 44.95~~ $ 44.95 44.95 USD Pricelist Min. Qty Price 1 $ 44.95 Connector 1 SMA Male Connector 2 SMA Male Cable Type 141CJ Cable_Feature Conformable Length (in) 72.0 Outer Diameter (in) 0.168 Max. Frequency (GHz) 18.0 Data.F1 1.0 Data.F2 5.0 Data.F3 10.0	P1CA-SAMSAM-141CJ-48 SMA Male to SMA Male cable assembly using 141CJ Conformable Coax, 48 inches long, Operating to 26.5 GHz. ~~$ 32.95~~ $ 32.95 32.95 USD Connector 1 SMA Male Connector 2 SMA Male Cable Type 141CJ Cable_Feature Conformable Length (in) 48.0 Outer Diameter (in) 0.168 Max. Frequency (GHz) 18.0 Data.F1 1.0 Data.F2 5.0 Data.F3 10.0
