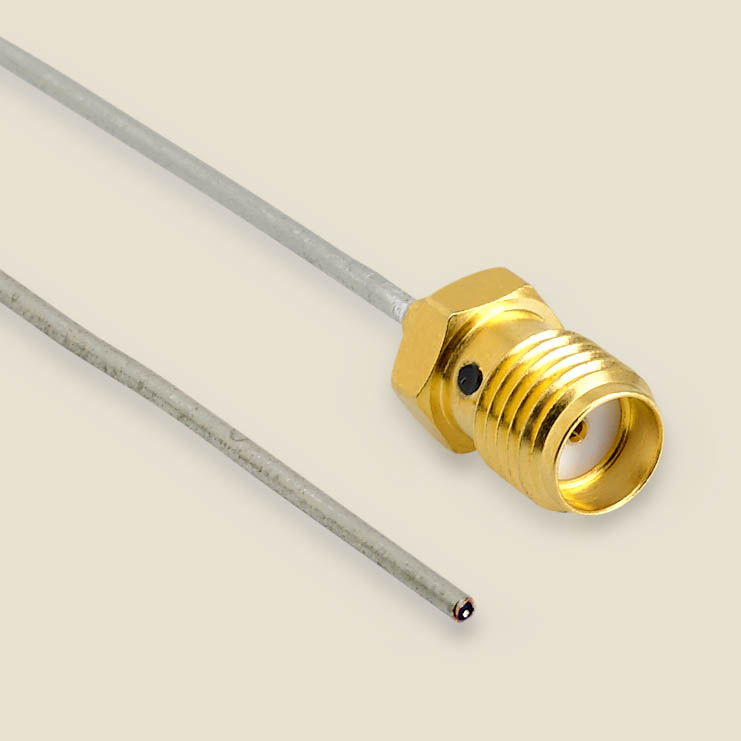

    P1CA-SAFPT-047SR-6
    P1CA-SAFPT-047SR-6
    SMA Female to Pigtail (no connector) cable assembly, .047 inch semi rigid, 6 inch.
    RF tested DC to 6 GHz.
    $ 17.95
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 17.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    047SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    6.0
    Outer Diameter (in)
    0.047
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SAFPT-047SR-9
    P1CA-SAFPT-047SR-9
    SMA Female to Pigtail (no connector) cable assembly using .047 Semi-Rigid Coax, 9 inch
    $ 20.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    047SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    9.0
    Outer Diameter (in)
    0.047
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SAFPT-047SR-4
    P1CA-SAFPT-047SR-4
    SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 4 inches long,
    RF tested DC to 6 GHz.
    $ 19.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    047SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    4.0
    Outer Diameter (in)
    0.047
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0

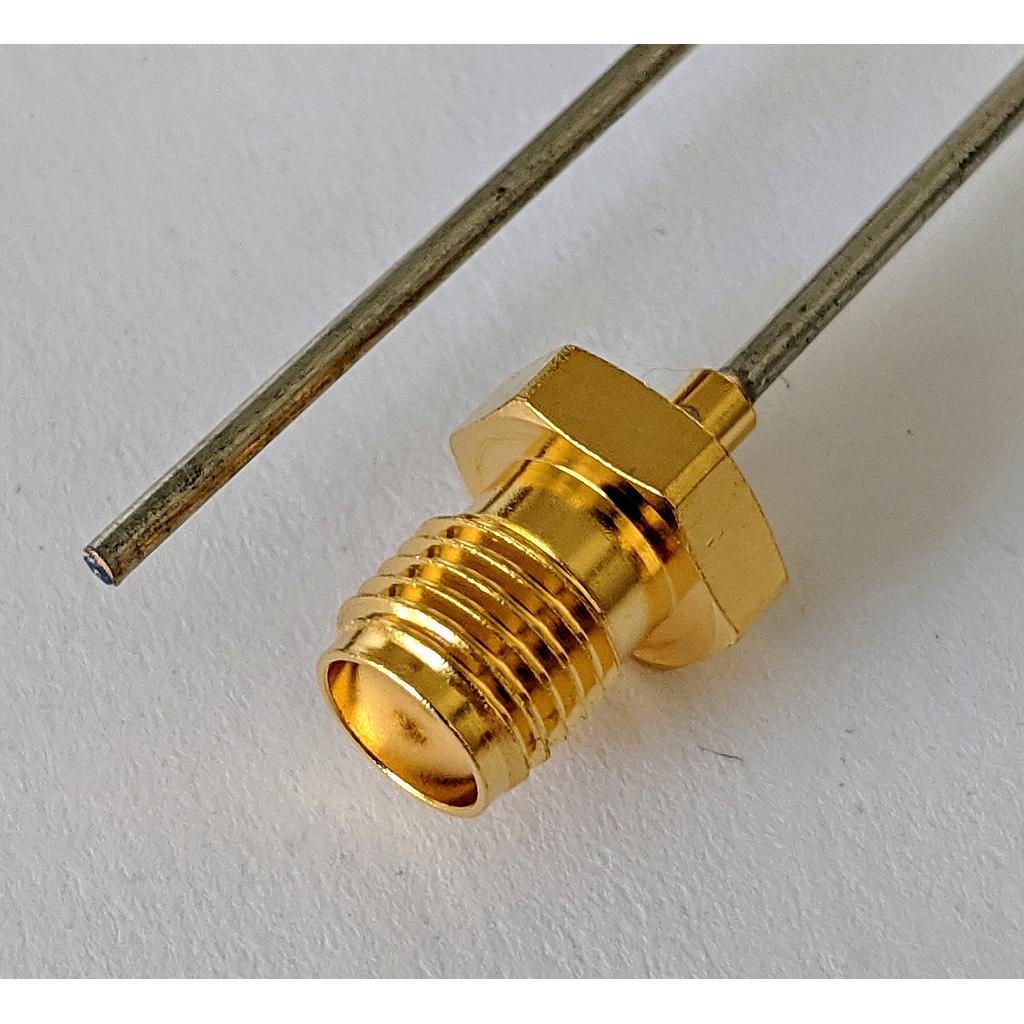

    P1CA-SAFPT-047SR-2
    P1CA-SAFPT-047SR-2
    SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 2 inch
    $ 19.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    047SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    2.0
    Outer Diameter (in)
    0.047
    Max. Frequency (GHz)
    6.0
    P1CA-SAFPT-047SR-3
    P1CA-SAFPT-047SR-3
    SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 3 inches long, Operating to 6 GHz.
    $ 19.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    047SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    3.0
    Outer Diameter (in)
    0.047
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0

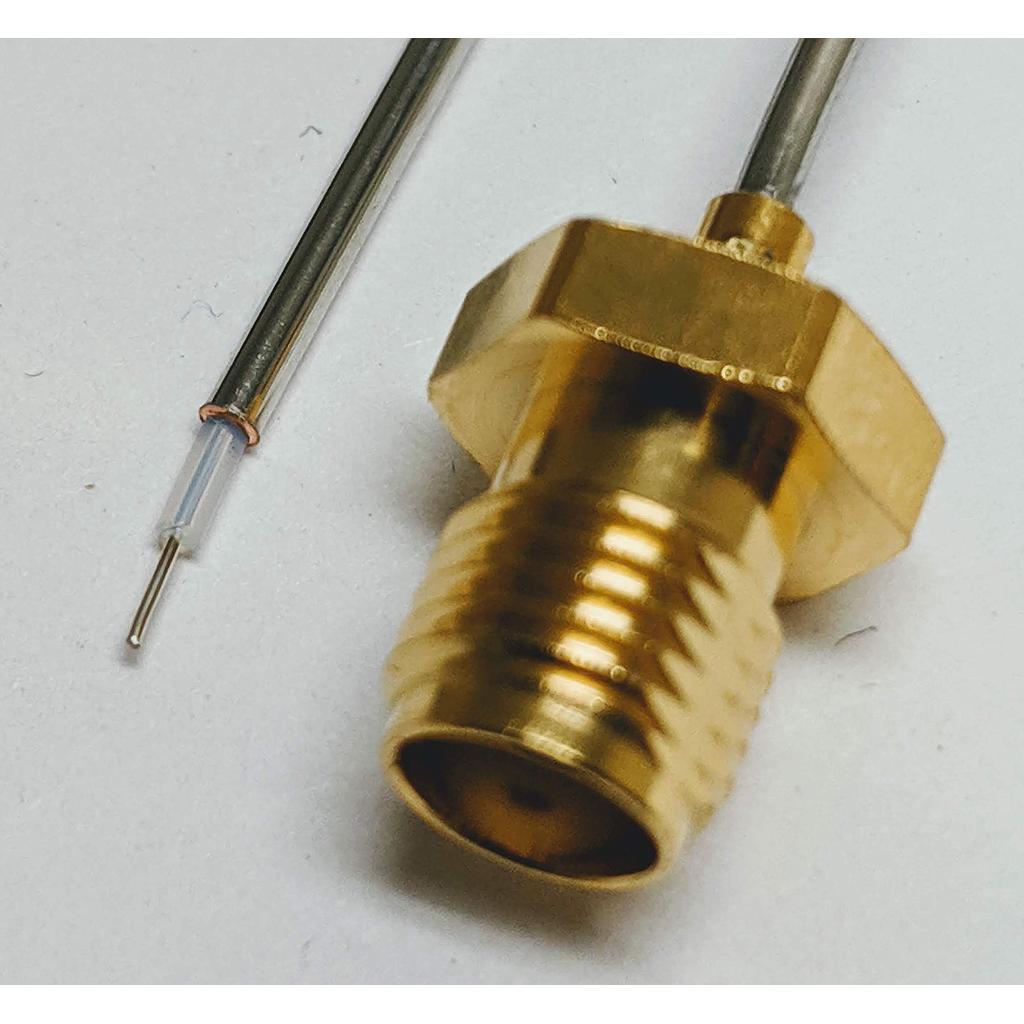

    P1-SMAJ/PIGTAIL-047SR-2
    P1-SMAJ/PIGTAIL-047SR-2
    Trimmed Pigtail, .047 semi rigid, 2 inch.
    $ 19.95
    Connector 1
    SMA Female
    Cable Type
    047SR
    Length (in)
    2.0
    P1CA-SAFPT-047CC-2
    P1CA-SAFPT-047CC-2
    SMA Female to Pigtail (no connector) cable assembly using 047CC Conformable Coax, 2 inches long, Operating to 6 GHz.
    $ 15.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    047CC
    Cable_Feature
    Conformable
    Length (in)
    2.0
    Outer Diameter (in)
    0.047
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SAFPT-034SR-2.5
    P1CA-SAFPT-034SR-2.5
    SMA Female to Pigtail (no connector) cable assembly using 034SR Semi-Rigid Coax, 2.5 inches long, Operating to 6 GHz.
    $ 18.75
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    034SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    2.5
    Outer Diameter (in)
    0.034
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SAFPT-034SR-3
    P1CA-SAFPT-034SR-3
    SMA Female to Pigtail (no connector) cable assembly using 034SR Semi-Rigid Coax, 3 inch.
    Each assembly is RF tested DC to 6 GHz.
    $ 18.95
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 18.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    034SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    3.0
    Outer Diameter (in)
    0.034
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SAFPT-034SR-9
    P1CA-SAFPT-034SR-9
    SMA Female to Pigtail (no connector) cable assembly using 034SR Semi-Rigid Coax, 9 inches long, Operating to 6 GHz.
    $ 23.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    034SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    9.0
    Outer Diameter (in)
    0.034
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SAFPT-034SR-4
    P1CA-SAFPT-034SR-4
    SMA Female to Pigtail (no connector) cable assembly using 034SR Semi-Rigid Coax, 4 inches long, Operating to 6 GHz.
    $ 19.95
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 19.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    034SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    4.0
    Outer Diameter (in)
    0.034
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SAFPT-034SR-2
    P1CA-SAFPT-034SR-2
    SMA Female to Pigtail (no connector) cable assembly using 034SR Semi-Rigid Coax, 2 inches long, Operating to 6 GHz.
    $ 20.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    034SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    2.0
    Outer Diameter (in)
    0.034
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0

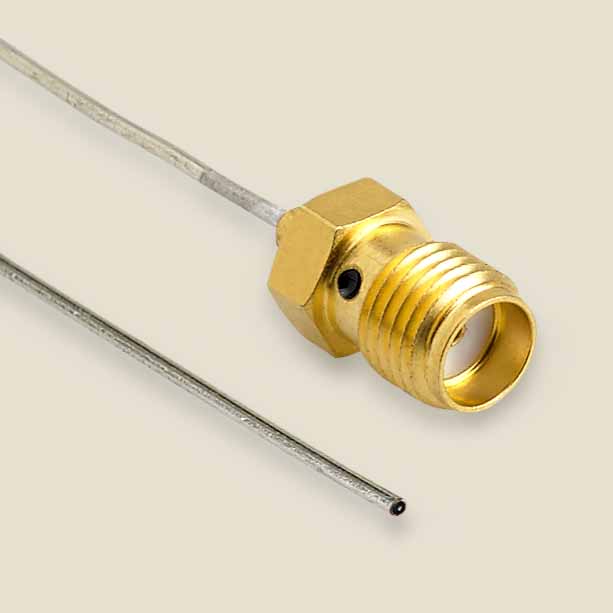

    P1CA-SAFPT-034SR-6
    P1CA-SAFPT-034SR-6
    SMA Female to Pigtail (no connector) cable assembly using 034SR Semi-Rigid Coax, 6 inches long,
    Each assembly RF tested DC to 6 GHz.
    $ 21.95
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 21.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    034SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    6.0
    Outer Diameter (in)
    0.034
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1-SMAJ/PIGTAIL-034SR-2
    P1-SMAJ/PIGTAIL-034SR-2
    Trimmed Pigtail assembly, SMA female (jack) to Pigtail (no connector), .034 inch diameter semi rigid cable, 2 inch.
    Each assembly is RF tested DC to 6 GHz, max VSWR 1.4.
    $ 19.95
    Connector 1
    SMA Female
    Cable Type
    034SR
    Length (in)
    2.0
    P1CA-SAFPT-020SR-4
    P1CA-SAFPT-020SR-4
    SMA Female to Pigtail, .020 Semi-Rigid Coax, 4 inch, bare copper outer conductor
    $ 24.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    020SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    4.0
    Outer Diameter (in)
    0.02
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SAFPT-020SR-3
    P1CA-SAFPT-020SR-3
    SMA Female to Pigtail, .020 Semi-Rigid Coax, 3 inch, bare copper outer conductor
    $ 24.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    020SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    3.0
    Outer Diameter (in)
    0.02
    Max. Frequency (GHz)
    6.0

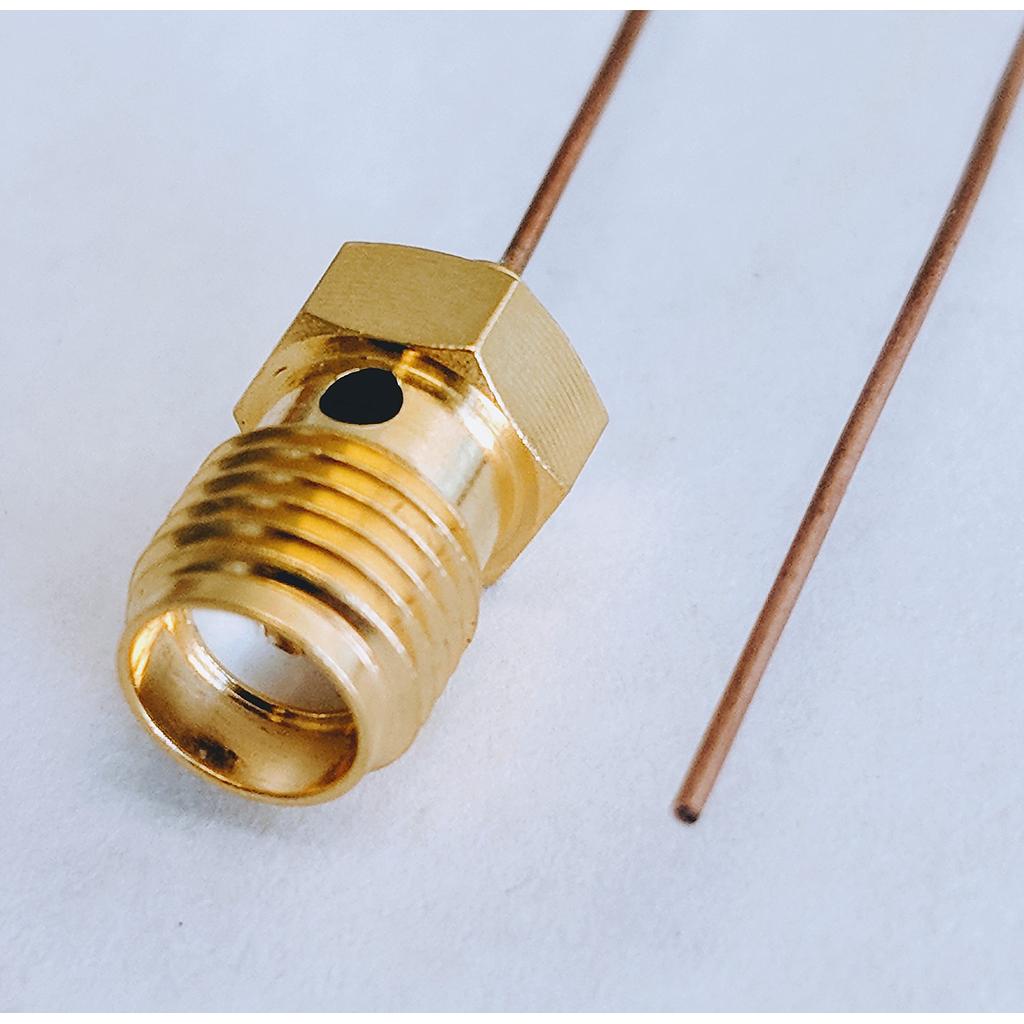

    P1CA-SAFPT-020SR-9
    P1CA-SAFPT-020SR-9
    SMA Female to Pigtail, .020 Semi-Rigid Coax, 9 inch, bare copper outer conductor
    $ 29.85
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    020SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    9.0
    Outer Diameter (in)
    0.02
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SAFPT-020SR-7
    P1CA-SAFPT-020SR-7
    SMA Female to Pigtail, .020 Semi-Rigid Coax, 7 inch, bare copper outer conductor
    $ 28.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    020SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    7.0
    Outer Diameter (in)
    0.02
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SAFPT-020SR-2
    P1CA-SAFPT-020SR-2
    SMA Female to Pigtail, .020 Semi-Rigid Coax, 2 inch, bare copper outer conductor
    $ 24.95
    Pricelist
    Min. Qty
    Price
    • 3.0
      $ 24.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    020SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    2.0
    Outer Diameter (in)
    0.02
    Max. Frequency (GHz)
    6.0
    P1CA-SAFPT-020SR-6
    P1CA-SAFPT-020SR-6
    SMA Female to Pigtail, .020 Semi-Rigid Coax, 6 inch, bare copper outer conductor
    $ 26.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    020SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    6.0
    Outer Diameter (in)
    0.02
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
