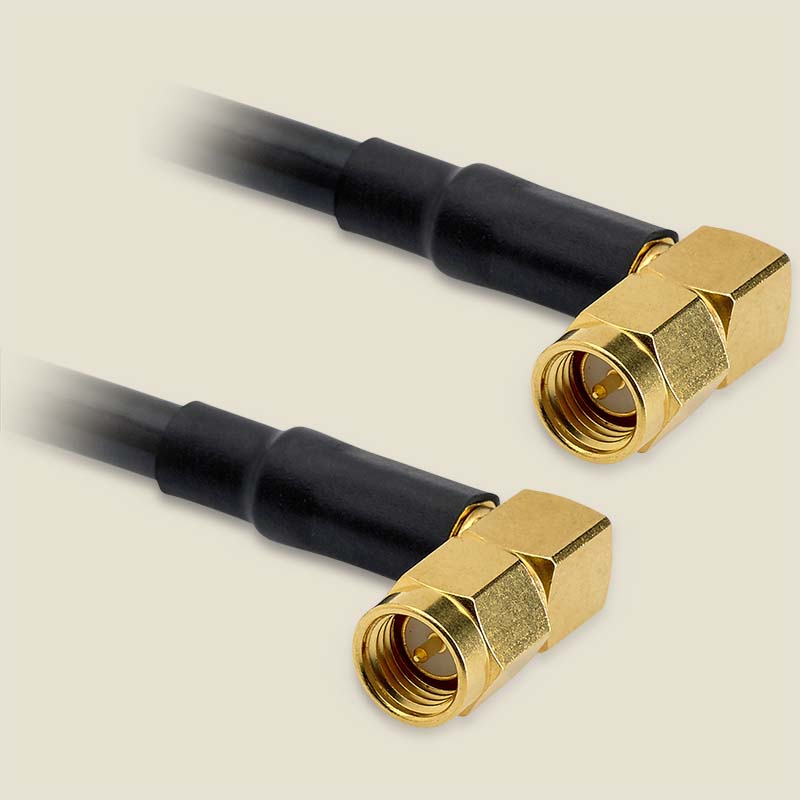

P1CA-SAMRASAMRA-RD316-18
SMA Male Right Angle to SMA Male Right Angle cable using RD316 Double-Shielded RG Type Flex Coax, 18 inches long, and Operating to 6 GHz.
$ 19.95 $ 19.95 19.95 USD
Pricelist
Min. Qty
Price
  • 10
    $ 18.45
Connector 1
SMA Male Right Angle
Connector 2
SMA Male Right Angle
Cable Type
RD316
Cable_Feature
Double-Shielded RG Type Flex
Length (in)
18.0
Outer Diameter (in)
0.114
Max. Frequency (GHz)
6.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
P1CA-SAMRASAMRA-RD316-15
SMA Male Right Angle to SMA Male Right Angle cable using RD316 Double-Shielded RG Type Flex Coax, 15 inches long, and Operating to 6 GHz.
$ 17.95 $ 17.95 17.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 17.95
  • 10
    $ 17.45
Connector 1
SMA Male Right Angle
Connector 2
SMA Male Right Angle
Cable Type
RD316
Cable_Feature
Double-Shielded RG Type Flex
Length (in)
15.0
Outer Diameter (in)
0.114
Max. Frequency (GHz)
6.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
P1CA-SAMRASAMRA-RD316-12
SMA Male Right Angle to SMA Male Right Angle cable using RD316 Double-Shielded RG Type Flex Coax, 12 inches long, and Operating to 6 GHz.
$ 15.95 $ 15.95 15.950000000000001 USD
Pricelist
Min. Qty
Price
  • 10
    $ 15.45
  • 25
    $ 14.95
Connector 1
SMA Male Right Angle
Connector 2
SMA Male Right Angle
Cable Type
RD316
Cable_Feature
Double-Shielded RG Type Flex
Length (in)
12.0
Outer Diameter (in)
0.114
Max. Frequency (GHz)
6.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
P1CA-SAMRASAMRA-RD316-9
SMA Male Right Angle to SMA Male Right Angle cable using RD316 Double-Shielded RG Type Flex Coax, 9 inches long, and Operating to 6 GHz.
$ 13.95 $ 13.95 13.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 13.95
Connector 1
SMA Male Right Angle
Connector 2
SMA Male Right Angle
Cable Type
RD316
Cable_Feature
Double-Shielded RG Type Flex
Length (in)
9.0
Outer Diameter (in)
0.114
Max. Frequency (GHz)
6.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
P1CA-SAMRASAMRA-RD316-6
SMA Male Right Angle to SMA Male Right Angle cable using RD316 Double-Shielded RG Type Flex Coax, 6 inches long, and Operating to 6 GHz.
$ 13.95 $ 13.95 13.950000000000001 USD
Pricelist
Min. Qty
Price
  • 10
    $ 12.95
Connector 1
SMA Male Right Angle
Connector 2
SMA Male Right Angle
Cable Type
RD316
Cable_Feature
Double-Shielded RG Type Flex
Length (in)
6.0
Outer Diameter (in)
0.114
Max. Frequency (GHz)
6.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
P1CA-SAFBUFP-U132-12
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, Double Shielded U132 Coax, 12 inches
$ 11.95 $ 11.95 11.950000000000001 USD
Connector 1
SMA Female
Connector 2
U.FL Male
Cable Type
U132
Cable_Feature
Flex, Ultra Small Diameter
Length (in)
12.0
Outer Diameter (in)
0.04
Max. Frequency (GHz)
3.0

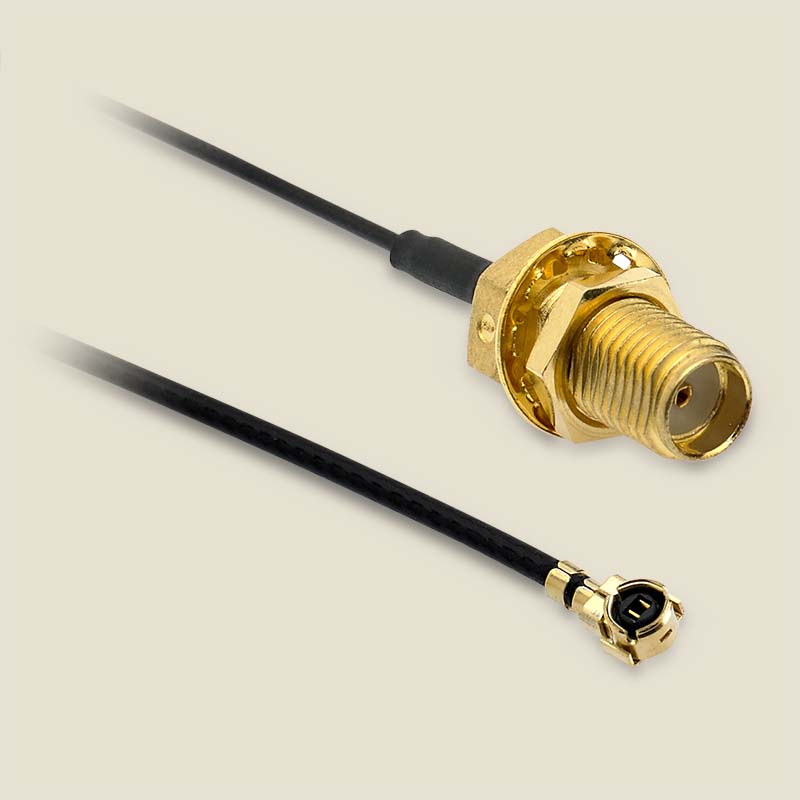

P1CA-SAFBUFP-U132-9
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, Double Shielded U132 Coax, 9 inches
$ 11.95 $ 11.95 11.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 11.95
P1CA-SAFBUFP-U132-6
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, Double Shielded U132 Coax, 6 inches
$ 11.95 $ 11.95 11.950000000000001 USD
P1CA-SAFBUFP-U132-3
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, Double Shielded U132 Coax, 3 inches
$ 11.95 $ 11.95 11.950000000000001 USD
P1CA-SAFBUFP-U113-12
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, U113 Coax, 12 inches
$ 11.95 $ 11.95 11.950000000000001 USD
Pricelist
Min. Qty
Price
  • 10
    $ 11.95
P1CA-SAFBUFP-U113-9
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, U113 Coax, 9 inches
$ 11.95 $ 11.95 11.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 11.95
  • 25
    $ 10.67
P1CA-SAFBUFP-U113-8
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, U113 Coax, 8 inches
$ 11.95 $ 11.95 11.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 11.95
P1CA-SAFBUFP-U113-6
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, U113 Coax, 6 inches
$ 11.95 $ 11.95 11.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 11.95
P1CA-SAFRPBUFP-U132-12
Cable Assembly, Reverse Polarity SMA Bulkhead Female to U.FL Right Angle Plug, Double Shielded U132 Coax, 12 inches
$ 11.95 $ 11.95 11.950000000000001 USD
P1CA-SAFRPBUFP-U132-9
Cable Assembly, Reverse Polarity SMA Bulkhead Female to U.FL Right Angle Plug, Double Shielded U132 Coax, 9 inches
$ 11.95 $ 11.95 11.950000000000001 USD
P1CA-SAFRPBUFP-U132-6
Cable Assembly, Reverse Polarity SMA Bulkhead Female to U.FL Right Angle Plug, Double Shielded U132 Coax, 6 inches
$ 11.95 $ 11.95 11.950000000000001 USD
P1CA-SAFRPBUFP-U132-3
Cable Assembly, Reverse Polarity SMA Bulkhead Female to U.FL Right Angle Plug, Double Shielded U132 Coax, 3 inches
$ 11.95 $ 11.95 11.950000000000001 USD
P1CA-SAFRPBUFP-U113-12
Cable Assembly, Reverse Polarity SMA Bulkhead Female to U.FL Right Angle Plug, U113 Coax, 12 inches
$ 11.95 $ 11.95 11.950000000000001 USD
P1CA-SAFRPBUFP-U113-9
Cable Assembly, Reverse Polarity SMA Bulkhead Female to U.FL Right Angle Plug, U113 Coax, 9 inches
$ 11.95 $ 11.95 11.950000000000001 USD
P1CA-SAFRPBUFP-U113-6
Cable Assembly, Reverse Polarity SMA Bulkhead Female to U.FL Right Angle Plug, U113 Coax, 6 inches
$ 11.95 $ 11.95 11.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 11.95
