P1CA-SAMSAM-SS141-60
SMA Male to SMA Male test cable using SS141 High Performance Coax, 60 inch.
$ 79.95 $ 79.95 79.95 USD
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
SS141
Cable_Feature
High Performance
Length (in)
60.0
Outer Diameter (in)
0.163
Max. Frequency (GHz)
27.0
Data.F1
1.0
Data.F2
10.0
Data.F3
18.0
P1CA-SAFSAF-034SR-12
Cable Assembly, SMA Female to SMA Female, .034 Semi-Rigid Coax, 12 inch.
Frequency DC to 12 GHz.
$ 25.95 $ 25.95 25.95 USD
Pricelist
Min. Qty
Price

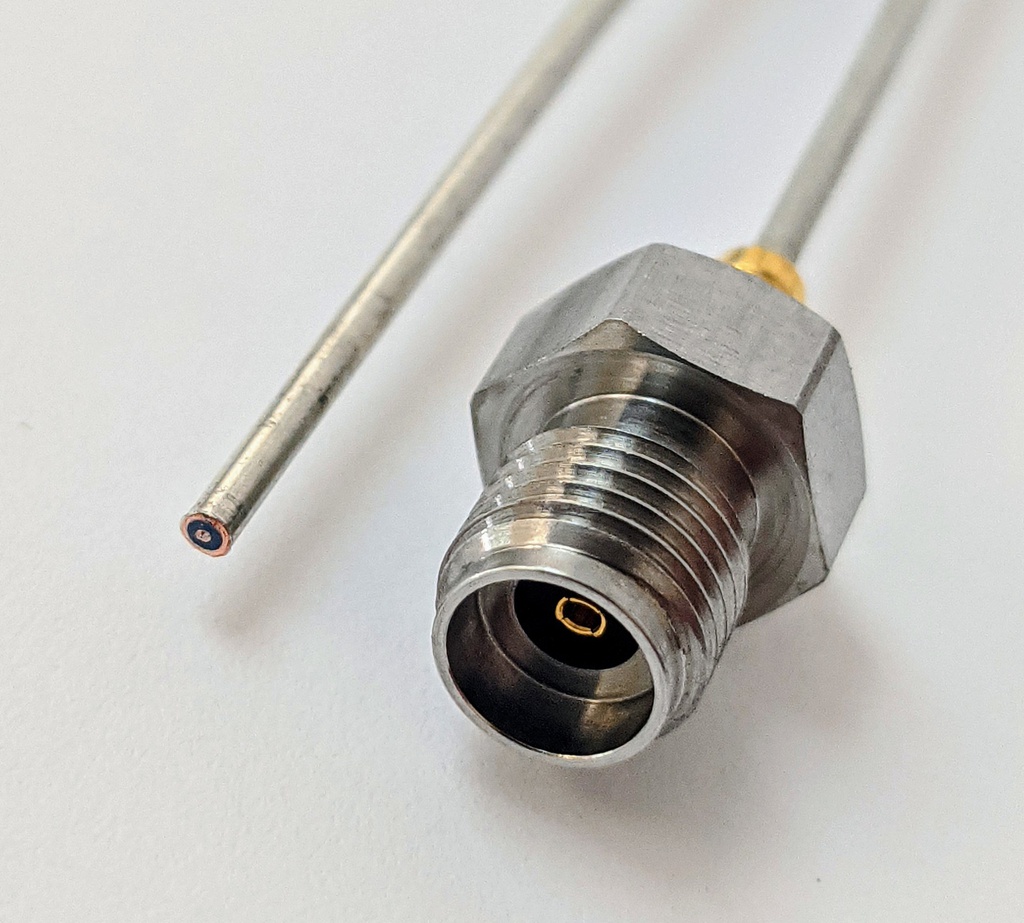

P1CA-29FPT-047SR-2
2.92mm Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 2 inch.
Each assembly RF tested DC to 40 GHz, max VSWR 1.45.
$ 34.78 $ 34.78 34.78 USD
Pricelist
Min. Qty
Price
Connector 1
2.92mm Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Length (in)
2.0
Max. Frequency (GHz)
40
P1CA-SAFSAF-020SR-3
Cable Assembly, SMA Female to SMA Female, .020 diameter Semi-Rigid Coax, 3 inches
$ 42.95 $ 42.95 42.95 USD

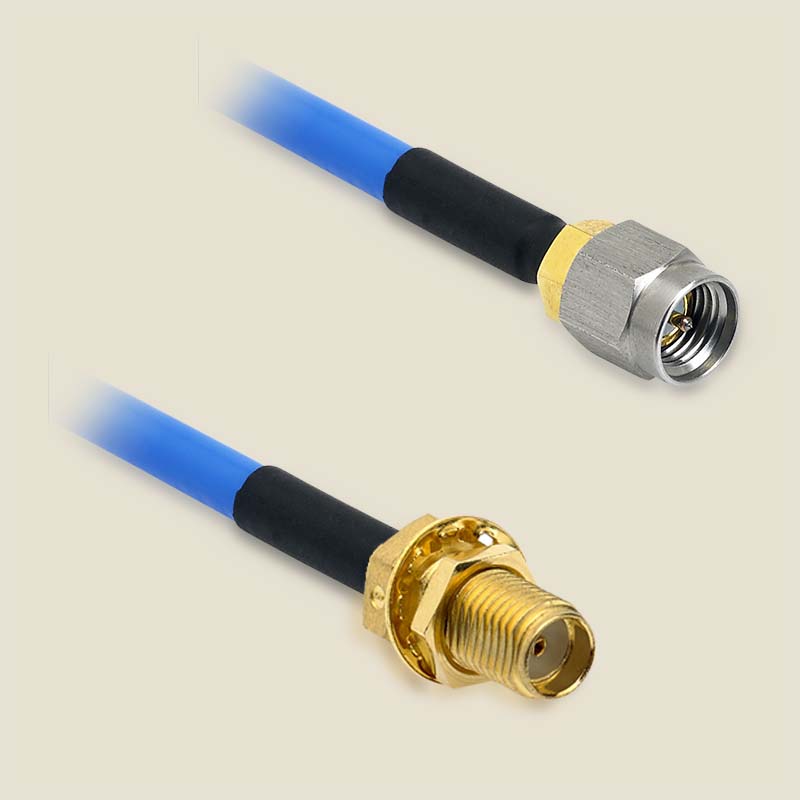

P1-SMAP/SMABHJ-141CJ-4
Cable Assembly, SMA Male to SMA Bulkhead Female, 141CJ Jacketed Conformable Coax, 5 inches
$ 16.95 $ 16.95 16.95 USD
Connector 1
SMA Male
Connector 2
SMA Female
Cable Type
141CJ
Cable_Feature
Conformable, Jacketed
Length (in)
5.0
Outer Diameter (in)
0.161
Max. Frequency (GHz)
18.0
P1CA-SAFSPFRA-SS085-6
SMA Female to SMP Female Right Angle RF flex cable using SS085 High Performance Coax, 6 inches long, Operating to 18 GHz.
$ 38.95 $ 38.95 38.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 38.95
Connector 1
SMA Female
Connector 2
SMP Female Right Angle
Cable Type
SS085
Cable_Feature
High Performance
Length (in)
6.0
Outer Diameter (in)
0.104
Max. Frequency (GHz)
18.0
Data.F1
1.0
Data.F2
5.0
Data.F3
10.0
P1CA-SAMSPF-085CC-6
Cable Assembly, SMA Male to SMP Female, 085CC Conformable Coax (no jacket) , 6 inches
$ 27.95 $ 27.95 27.95 USD
Connector 1
SMA Male
Connector 2
SMP Female
Cable Type
085CC
Cable_Feature
Conformable
Length (in)
6.0
Max. Frequency (GHz)
18.0

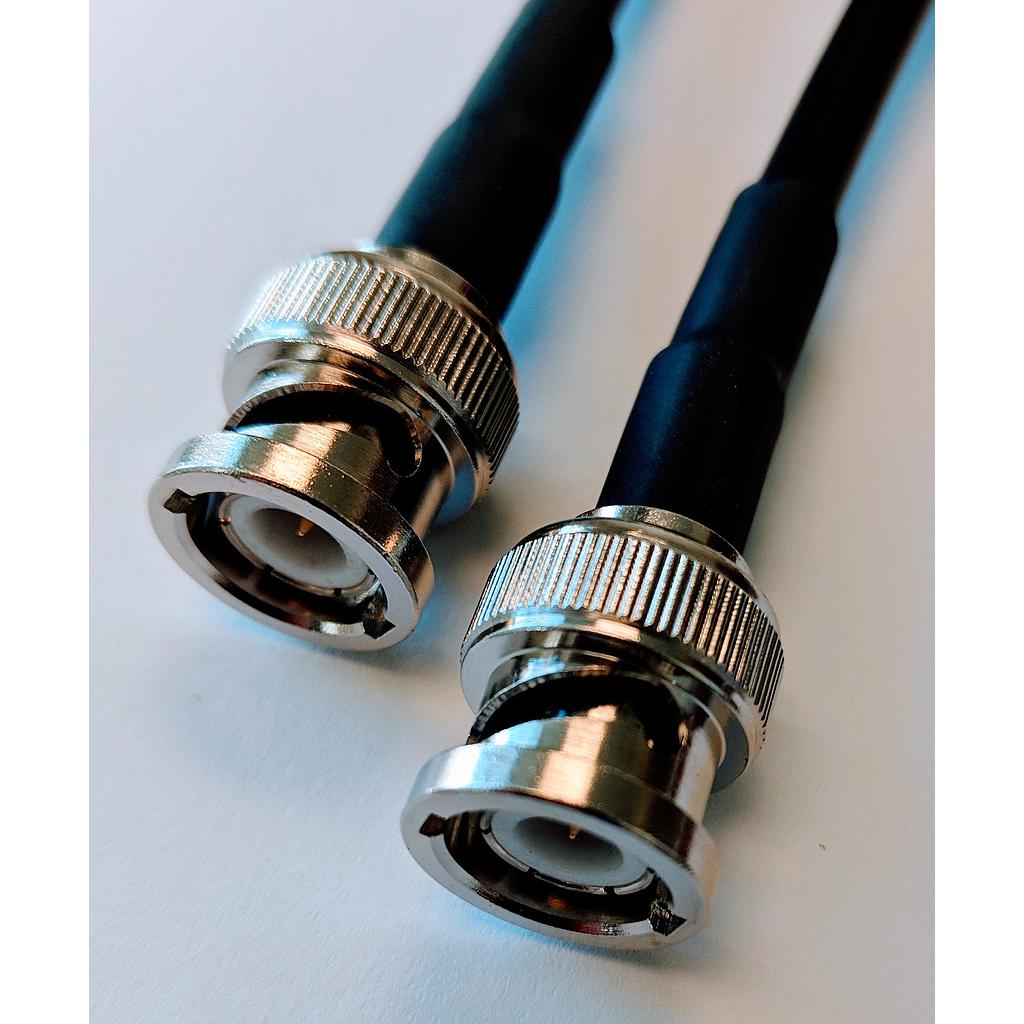

P1-BNCP/BNCP-RG58-72
BNC Plug to BNC Plug, RG58 flexible cable, 72 inch
$ 28.95 $ 28.95 28.95 USD
Connector 1
BNC Male
Connector 2
BNC Male
Cable Type
RG-58
Cable_Feature
RG Type Flex
Length (in)
72.0
Outer Diameter (in)
0.195
InnerCond
TPC 19/.0072
Dielectric Material
PE
JacketMat
PVC
MinBend
1.0
P1CA-SAMSAM-SS141-36-RN
SMA Male to SMA Male test cable using SS141 High Performance Coax, 36 inches long, Operating to 27 GHz.
SMA coupling nut retracts for visual mating of the center contacts.
Availability limited to current stock.
$ 49.72 $ 49.72 49.72 USD
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
SS141
Cable_Feature
High Performance
Length (in)
36.0
Outer Diameter (in)
0.163
Max. Frequency (GHz)
27.0
Data.F1
1.0
Data.F2
10.0
Data.F3
18.0
P1CA-SAMSAM-SS141-12-RN
SMA Male to SMA Male test cable using SS141 High Performance Coax, 12 inches long, Operating to 27 GHz.
SMA coupling nut retracts for visual mating of the center contacts.
Availability limited to current stock.
$ 38.95 $ 38.95 38.95 USD
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
SS141
Cable_Feature
High Performance
Length (in)
12.0
Outer Diameter (in)
0.163
Max. Frequency (GHz)
27.0
Data.F1
1.0
Data.F2
10.0
Data.F3
18.0
P1CA-SAMSAM-SS141-6-RN
SMA Male to SMA Male test cable using SS141 High Performance Coax, 6 inches long, Operating to 27 GHz.
SMA coupling nut retracts for visual mating of the center contacts.
Availability limited to current stock.
$ 35.95 $ 35.95 35.95 USD
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
SS141
Cable_Feature
High Performance
Length (in)
6.0
Outer Diameter (in)
0.163
Max. Frequency (GHz)
27.0
Data.F1
1.0
Data.F2
10.0
Data.F3
18.0
P1AD-24M35M
RF Adapter, 2.4mm Male to 3.5mm Male, VSWR 1.25 max to 35 GHz
$ 198.52 $ 198.52 198.52 USD
Pricelist
Min. Qty
Price
  • 1
    $ 198.52
  • 10
    $ 179.19
Connector 1
2.4mm Female
Connector 2
3.5mm Male
Impedance
50.0
Frequency (GHz)
35.0
Max VSWR
1.25:1
P1AD-BNFTNM
RF Adapter, BNC female (jack) to TNC male (plug), operating to 4 GHz.
$ 21.85 $ 21.85 21.85 USD
Pricelist
Min. Qty
Price
  • 1
    $ 21.85
  • 10
    $ 20.75
Connector 1
BNC Female
Connector 2
TNC Male
Angle
Straight
Impedance
50.0
Frequency (GHz)
4.0
Max VSWR
1.2:1
P1CA-MMPUFP-U081-2.5
Cable Assembly, MMCX-RA Male to U.FL RA Male, U081 Cable, 2.5 Inches
$ 11.95 $ 11.95 11.950000000000001 USD
P1-SMAJ/SMAJ-RG316-40CM
SMA Female to SMA Female cable using RG-316 RG Type Flex Coax, 40 CM
$ 13.95 $ 13.95 13.950000000000001 USD
Connector 1
SMA Female
Connector 2
SMA Female
Cable Type
RG-316
Cable_Feature
RG Type Flex
Outer Diameter (in)
0.098
Max. Frequency (GHz)
6.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
Data.F4
5.0

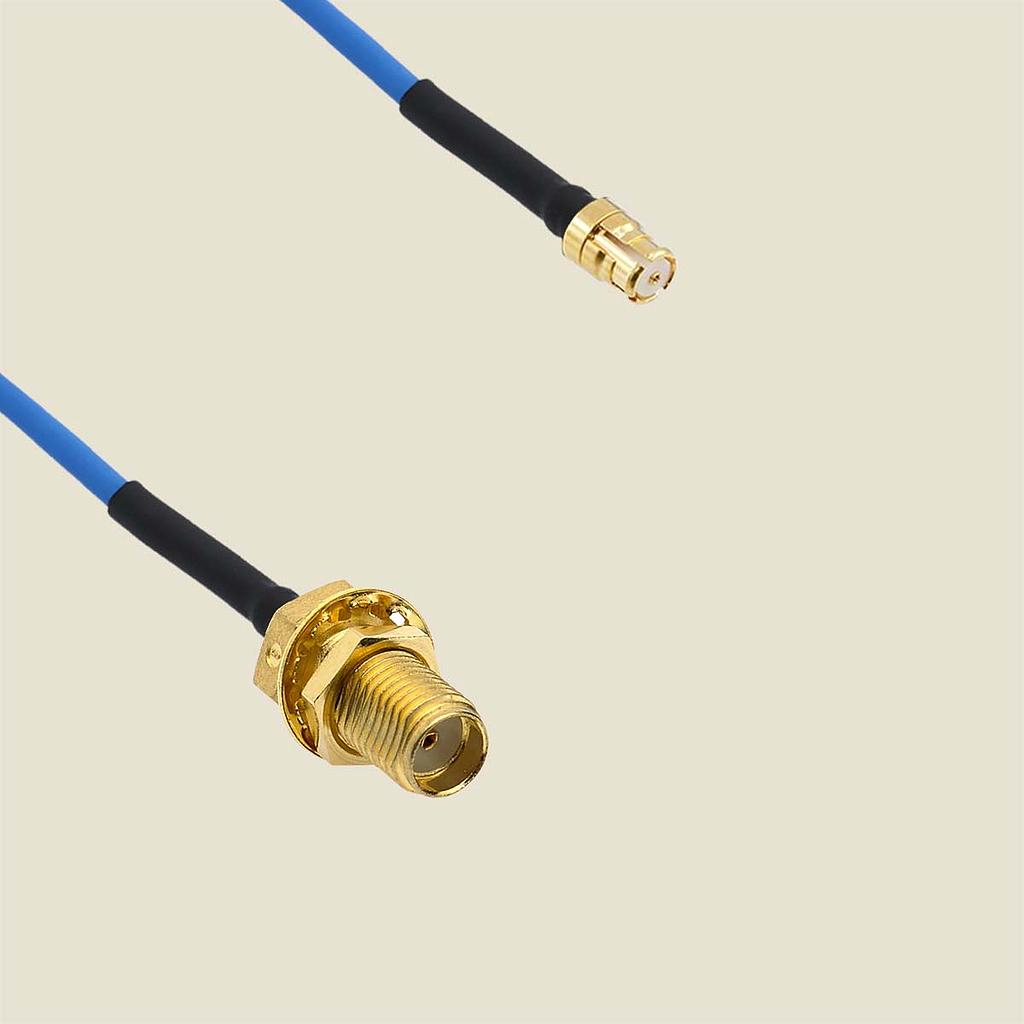

P1CA-SAFBSPF-SS085-9
SMA Female Bulkhead to SMP Female RF flex cable using SS085 High Performance Coax, 9 inches long, Operating to 18 GHz.
$ 44.68 $ 44.68 44.68 USD
Pricelist
Min. Qty
Price
  • 1
    $ 44.68
  • 10
    $ 37.95
Connector 1
SMA Female Bulkhead
Connector 2
SMP Female
Cable Type
SS085
Cable_Feature
High Performance
Length (in)
9.0
Outer Diameter (in)
0.104
Max. Frequency (GHz)
18.0
Data.F1
1.0
Data.F2
5.0
Data.F3
10.0
P1CA-SAMSPF-085CC-12
Cable Assembly, SMA Male to SMP Female, 085CC Conformable Coax (no jacket) , 12 inches
$ 27.95 $ 27.95 27.95 USD
Connector 1
SMA Male
Connector 2
SMP Female
Cable Type
085CC
Cable_Feature
Conformable
Length (in)
12.0
Max. Frequency (GHz)
18.0
P1AD-24FM
2.4mm Female to 2.4mm Male Straight Adapter Operating to 50 GHz
$ 99.74 $ 99.74 99.74000000000001 USD
Pricelist
Min. Qty
Price

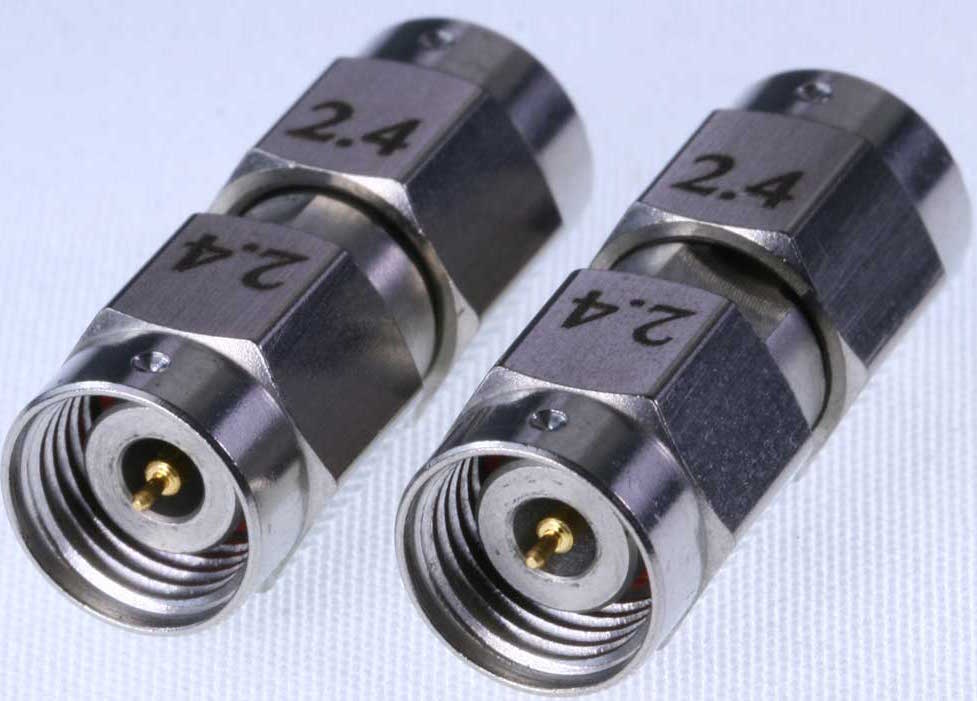

P1AD-24MM
2.4mm Male to 2.4mm Male Straight Adapter.
Operating to 50 GHz with max VSWR 1.30.
$ 99.74 $ 99.74 99.74000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 99.74
  • 10
    $ 88.89
P1-SMAP/SMAP-RG316-5
SMA Male to SMA Male, RG-316, 5 inch
$ 11.95 $ 11.95 11.950000000000001 USD
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
RG-316
Cable_Feature
RG Type Flex
Length (in)
5.0
Outer Diameter (in)
0.098
Max. Frequency (GHz)
6.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
