SMP and SMPM
P1dB stocks popular lengths of SMP straight and SMP right angle assemblies, as well as SMP Miniature (SMPM or SSMP) straight or SMPM right angle flexible assemblies.
Choose from our high performance, triple shield low loss SS085 cable or for best value look at P1dB's 085 conformable assemblies.
For very tight spaces, consider P1dB's "Tight-Flex" cable series with SMP, SMPM and SMA connector options. Tight-Flex assemblies feature a minimum bend radius of 0.25 inch, low loss triple shield construction with an outer jacket of 0.104 inch diameter. Typical Insertion Loss at 10GHz is 0.8 dB per foot.
Tight-Flex assemblies use part number "P1CA-STM (for SMA connector) , P1CA-TPF (for SMP connector) or P1CA-TMF (for SMPM/ SSMP connector)".

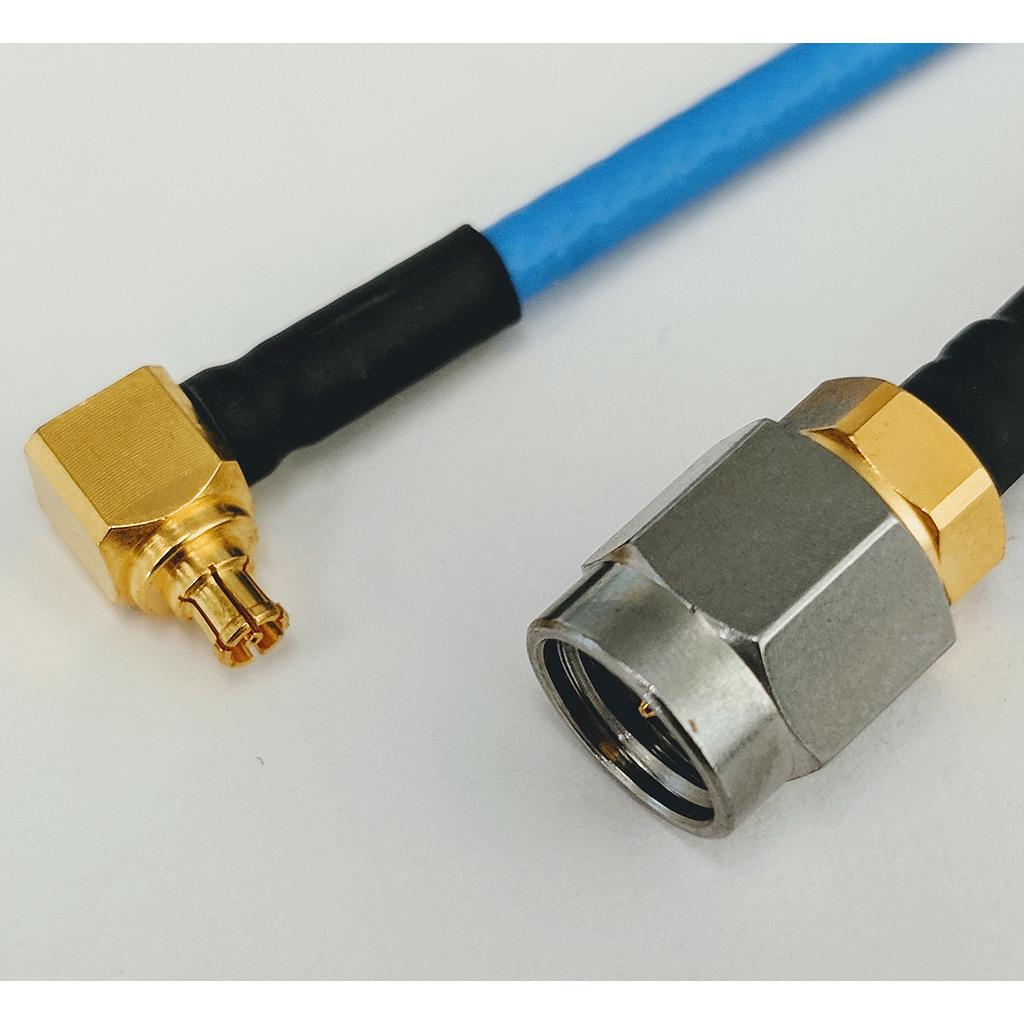

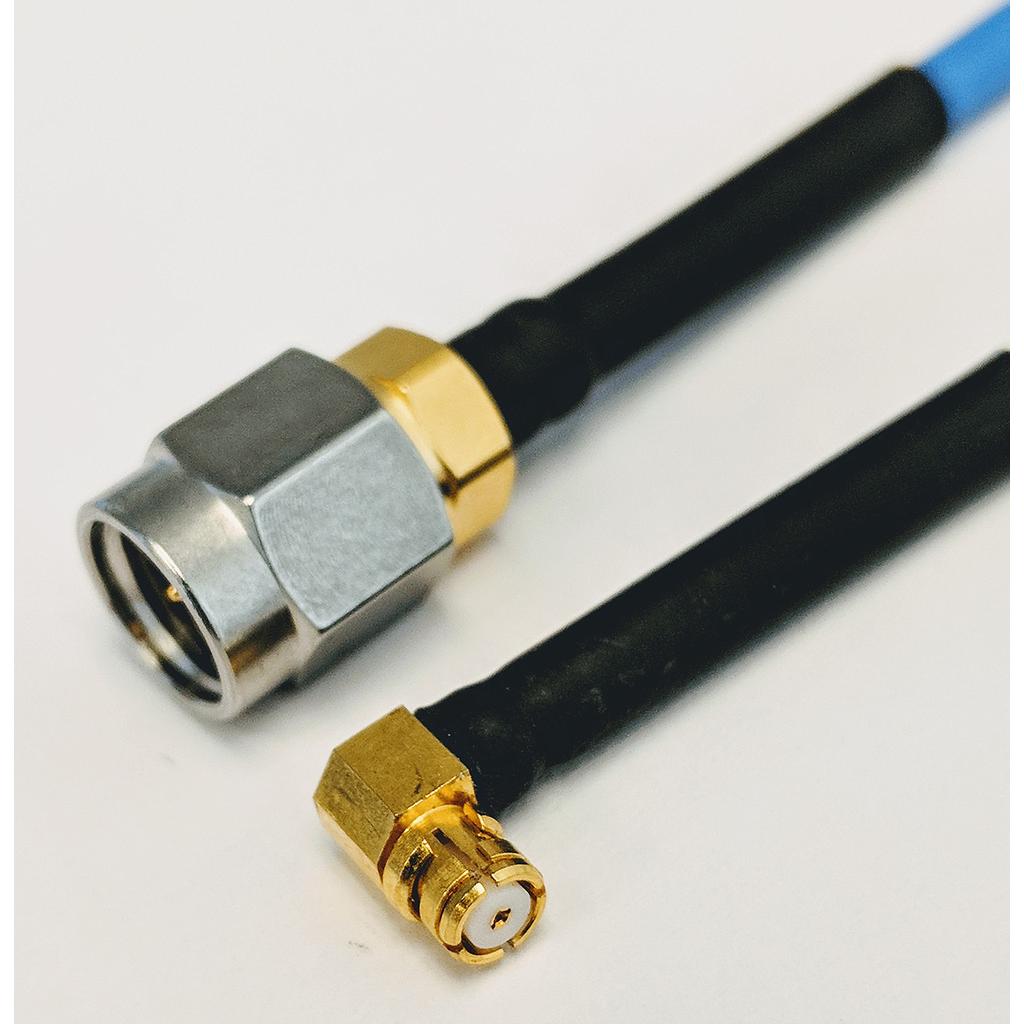

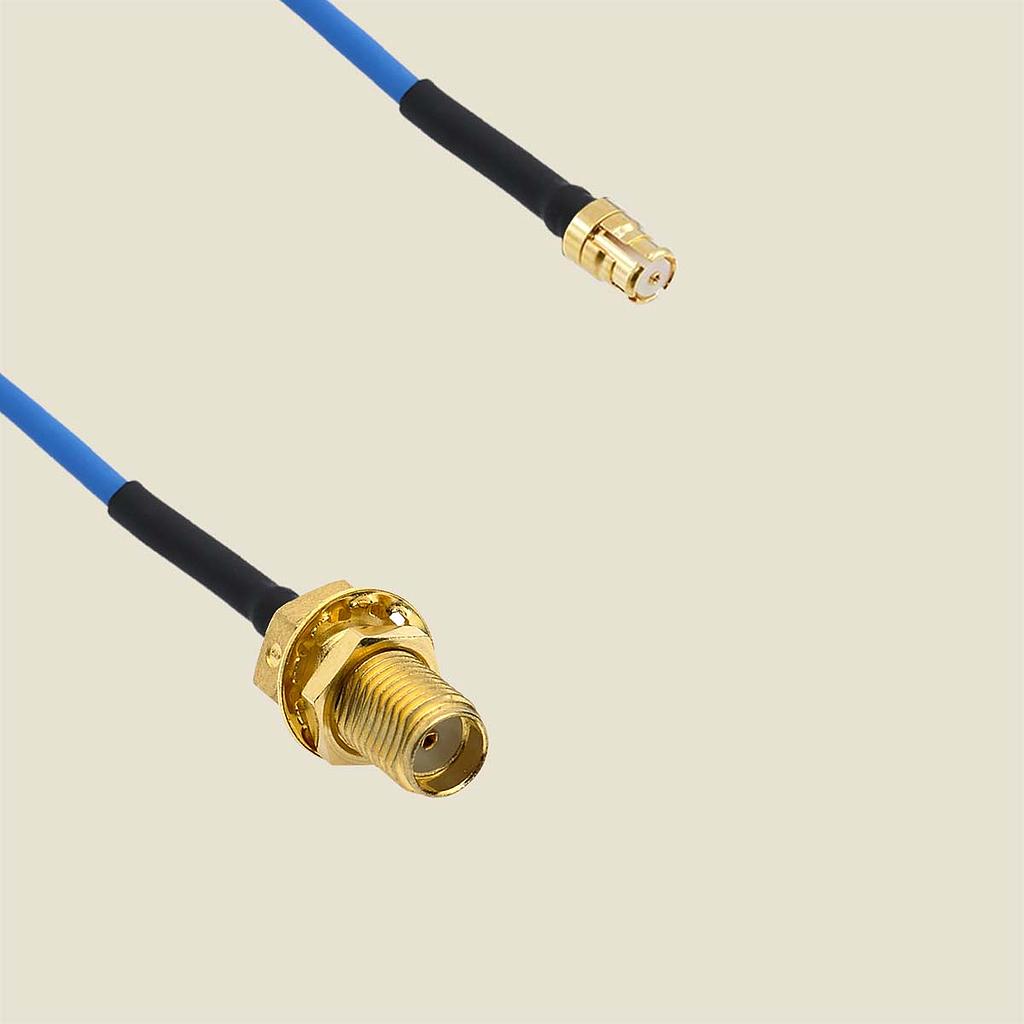

P1dB offers SMA male to SMP, SMA female to SMP and SMP to SMP flex assemblies. We can quote any length, typical cycle time for new builds is 30 days.
Evaluation samples are available for many of P1dB's SMP and SMPM cables. Contact sales@p1db.com.
Click Here if you do not find the desiredSMP and SMPM.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
