Edge Launch Connectors

P1dB offers edge launch connectors for mating with Printed circuit boards. SMA for frequencies up to 27 GHz, 2.92mm operating to 40 GHz, 2.4mm up to 50 GHz and 1.85mm for DC to 67 GHz.

Designed to clamp to the circuit board edge, the edge launch connector is adjustable to accommodate various PCB thickness and is re-useable (non-solder compression).

Ideal for high speed digital chip test, RF and millimeter wave test and product development and engineering test and prototype.

Enables precision electrical test without soldering to the PCB.

Click Here if you do not find the desiredEdge Launch Connectors.

P1CO-18FEL-07/12-LP
1.85 mm female end launch PCB connector, low profile, .007 inch (0.18 mm) diameter pin.
Frequency to 67 GHz.
129.25 129.25 129.25 USD
Pricelist
Min. Qty
Price
  • 1
    $ 129.25
  • 10
    $ 112.64
P1CO-SAFEL-05/09-LP
SMA female end launch PCB connector, low profile, .005 inch (0.13mm) diameter pin.
69.78 69.78 69.78 USD
Pricelist
Min. Qty
Price
  • 1
    $ 69.78
  • 10
    $ 57.44
P1CO-18FEL-05/09-LP
1.85 mm female end launch PCB connector, low profile, .005 inch (0.13mm) diameter pin.
Frequency DC to 67 GHz.
129.25 129.25 129.25 USD
Pricelist
Min. Qty
Price
  • 1
    $ 129.25
  • 10
    $ 112.64
P1CO-24FEL-05/09-LP
2.4 mm female end launch PCB connector, low profile, .005 inch (0.13mm) diameter pin.
Operating DC to 50 GHz.
82.78 82.78 82.78 USD
Pricelist
Min. Qty
Price
  • 1
    $ 82.78
  • 25
    $ 73.25
P1CO-29FEL-05/09-LP
2.92mm female end launch PCB connector, low profile, .005 inch (0.13mm) diameter pin.
Frequency DC to 40 GHz.
Low profile.
73.68 73.68 73.68 USD
Pricelist
Min. Qty
Price
  • 1
    $ 73.68
  • 25
    $ 61.85

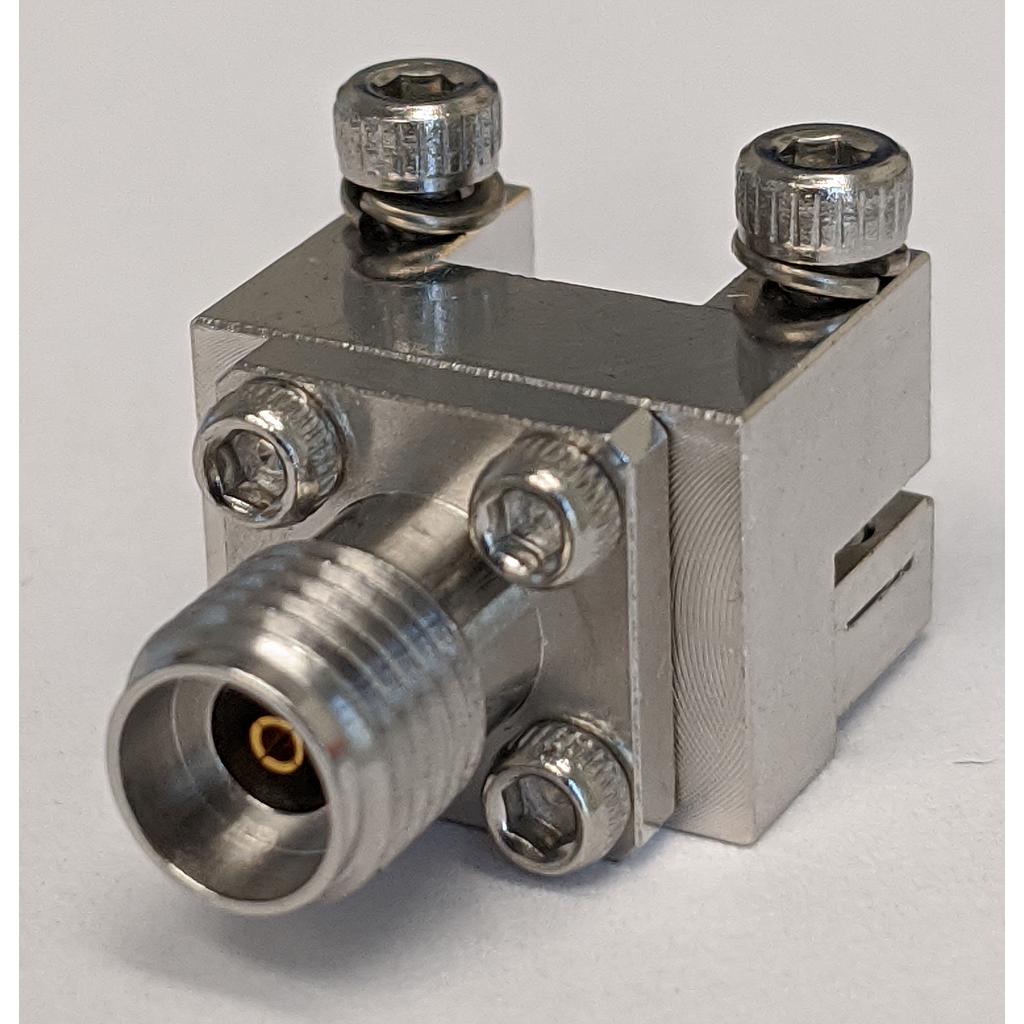

P1CO-29FEL-07/15
2.92mm female end launch PCB connector, .007 inch (0.18mm) diameter pin.
Frequency DC to 40 GHz.
Standard profile.
73.68 73.68 73.68 USD
Pricelist
Min. Qty
Price
  • 1
    $ 73.68
P1CO-29FEL-07/12
2.92mm female end launch PCB connector, .007 inch (0.18mm) diameter pin.
Frequency DC to 40 GHz.
Standard profile.
73.68 73.68 73.68 USD
Pricelist
Min. Qty
Price
  • 1
    $ 73.68
