    P1CA-SAMNM-SS141-48
    P1CA-SAMNM-SS141-48
    SMA Male to N Male test cable using SS141 flexible test cable, 48 inches long, frequency to 18 GHz.
    $ 88.67
    Connector 1
    SMA Male
    Connector 2
    N Male
    Cable Type
    SS141
    Cable_Feature
    High Performance
    Length (in)
    48.0
    Outer Diameter (in)
    0.163
    Max. Frequency (GHz)
    18.0
    Data.F1
    1.0
    Data.F2
    5.0
    Data.F3
    10.0
    P1-SMAP/SMAP-141CC-17
    P1-SMAP/SMAP-141CC-17
    SMA Male to SMA Male cable assembly using 141CC Conformable Coax, 17 inch, frequency to 26.5 GHz.
    $ 16.95
    Connector 1
    SMA Male
    Connector 2
    SMA Male
    Cable Type
    141CC
    Cable_Feature
    Conformable
    Length (in)
    17.0
    Outer Diameter (in)
    0.141
    Max. Frequency (GHz)
    26.5
    Data.F1
    1.0
    Data.F2
    5.0
    Data.F3
    10.0

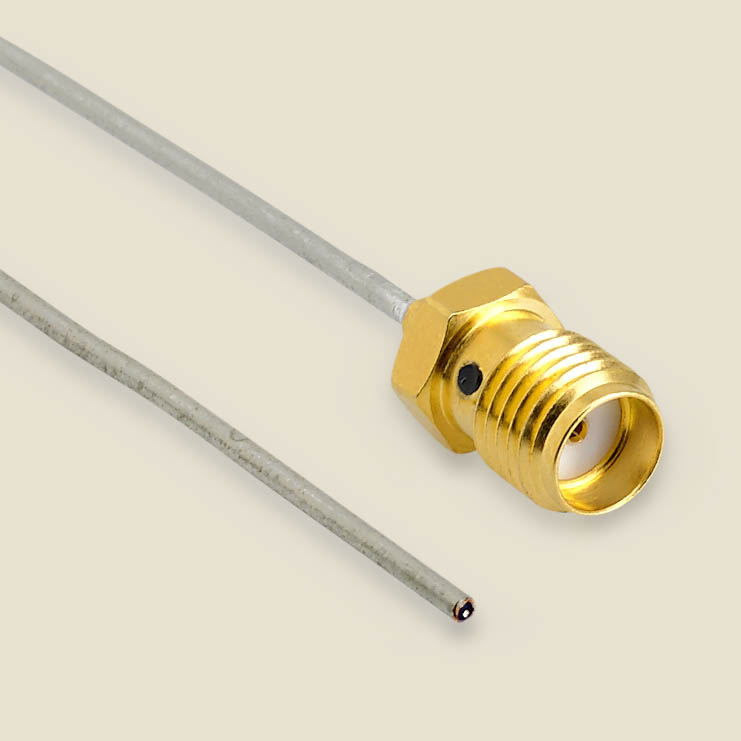

    P1CA-SAFPT-047SR-10
    P1CA-SAFPT-047SR-10
    SMA Female to Pigtail (no connector) cable assembly using .047 Semi-Rigid Coax, 10 inch
    $ 19.95
    Connector 1
    SMA Female
    Connector 2
    Pigtail - No Connector
    Cable Type
    047SR
    Cable_Feature
    Semi-Rigid
    Length (in)
    10.0
    Outer Diameter (in)
    0.047
    Max. Frequency (GHz)
    6.0
    Data.F1
    1.0
    Data.F2
    3.0
    Data.F3
    5.0
    P1CA-SPFSMF-SS085-12
    P1CA-SPFSMF-SS085-12
    SMP straight female to SMPM straight female, SS085 RF flex cable (RG405), 12 inch.
    $ 45.63
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 45.63
    • 10.0
      $ 42.94
    Connector 1
    SMP straight
    Connector 2
    Connector 2: SMPM straight
    Cable Type
    SS085
    Cable_Feature
    High Performance
    Length (in)
    12.0
    Outer Diameter (in)
    0.104
    Max. Frequency (GHz)
    18.0
    Data.F1
    1.0
    Data.F2
    5.0
    Data.F3
    10.0
    P1CA-SPFSMF-SS085-10
    P1CA-SPFSMF-SS085-10
    SMP straight female to SMPM straight female, SS085 RF flex cable (RG405), 10 inch.
    $ 45.63
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 45.63
    • 10.0
      $ 42.94
    Connector 1
    SMP straight
    Connector 2
    Connector 2: SMPM straight
    Cable Type
    SS085
    Cable_Feature
    High Performance
    Length (in)
    10.0
    Outer Diameter (in)
    0.104
    Max. Frequency (GHz)
    18.0
    Data.F1
    1.0
    Data.F2
    5.0
    Data.F3
    10.0
    P1CO-SMBJ-PCBEL
    P1CO-SMBJ-PCBEL
    Connector, SMB Jack, PCB mount edge launch
    $ 9.48
    Max. Frequency (GHz)
    4.0
    Max VSWR
    1.25:1
    Connector Type
    SMB Jack
    Impedance (Ohms)
    50.0
    Orientation
    Straight
    Mounting Style
    PCB
    P1CA-SMFSMF-SS085-12
    P1CA-SMFSMF-SS085-12
    SMPM female straight to SMPM female straight RF flex cable using SS085 High Performance Coax, 12 inch.
    $ 43.95
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 43.95
    • 10.0
      $ 40.93
    Connector 1
    Connector 1: SMPM Female straight
    Connector 2
    SMPM Female straight
    Cable Type
    SS085
    Cable_Feature
    High Performance
    Length (in)
    12.0
    Outer Diameter (in)
    0.104
    Max. Frequency (GHz)
    18.0
    Data.F1
    1.0
    Data.F2
    5.0
    Data.F3
    10.0
    P1CA-SMFSMF-SS085-6
    P1CA-SMFSMF-SS085-6
    SMPM female straight to SMPM female straight RF flex cable using SS085 High Performance Coax, 6 inch.
    $ 42.95
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 42.95
    • 10.0
      $ 39.93
    Connector 1
    Connector 1: SMPM Female straight
    Connector 2
    SMPM Female straight
    Cable Type
    SS085
    Cable_Feature
    High Performance
    Length (in)
    6.0
    Outer Diameter (in)
    0.104
    Max. Frequency (GHz)
    18.0
    Data.F1
    1.0
    Data.F2
    5.0
    Data.F3
    10.0
    P1CO-SMBJ-PCBSM
    P1CO-SMBJ-PCBSM
    Connector, SMB Jack, PCB mount surface mount solder attach.
    $ 6.48
    Max. Frequency (GHz)
    4.0
    Max VSWR
    1.30
    Connector Type
    SMB Jack
    Impedance (Ohms)
    50.0
    Orientation
    Straight
    Mounting Style
    PCB
    P1CO-MCXJ-PCBEL
    P1CO-MCXJ-PCBEL
    Connector, MCX Jack, PCB mount edge launch.
    $ 4.89
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 4.89
    • 10.0
      $ 4.36
    Max. Frequency (GHz)
    6.0
    Max VSWR
    1.25:1
    Connector Type
    MCX Jack
    Impedance (Ohms)
    50.0
    Orientation
    Straight
    Mounting Style
    PCB edge launch
    P1CA-SPFSMF-SS085-7
    P1CA-SPFSMF-SS085-7
    SMP straight female to SMPM straight female, SS085 RF flex cable (RG405), 7 inch.
    $ 45.63
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 45.63
    • 10.0
      $ 42.94
    Connector 1
    SMP straight
    Connector 2
    Connector 2: SMPM straight
    Cable Type
    SS085
    Cable_Feature
    High Performance
    Length (in)
    7.0
    Outer Diameter (in)
    0.104
    Max. Frequency (GHz)
    18.0
    Data.F1
    1.0
    Data.F2
    5.0
    Data.F3
    10.0
    P1CO-MCXJ-PCB
    P1CO-MCXJ-PCB
    Connector, MCX Jack, PCB mount
    $ 8.78
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 8.78
    • 10.0
      $ 7.67
    Max. Frequency (GHz)
    6.0
    Max VSWR
    1.25:1
    Connector Type
    MCX Jack
    Impedance (Ohms)
    50.0
    Orientation
    Straight
    Mounting Style
    PCB
    P1CO-SMBJ-PCB
    P1CO-SMBJ-PCB
    Connector, SMB Jack, PCB mount
    $ 6.48
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 6.48
    • 10.0
      $ 5.82
    Max. Frequency (GHz)
    4.0
    Max VSWR
    1.25:1
    Connector Type
    SMB Jack
    Impedance (Ohms)
    50.0
    Orientation
    Straight
    Mounting Style
    PCB
    P1CA-SAMSMFRA-SS085-9
    P1CA-SAMSMFRA-SS085-9
    SMA Male to SMPM Female Right Angle RF flex cable using SS085 High Performance Coax, 9 inches long, Operating to 18 GHz.
    $ 50.89
    Connector 1
    SMA Male
    Connector 2
    SMPM Female Right Angle
    Cable Type
    SS085
    Cable_Feature
    High Performance
    Length (in)
    9.0
    Outer Diameter (in)
    0.104
    Max. Frequency (GHz)
    18.0
    Data.F1
    1.0
    Data.F2
    6.0
    Data.F3
    10.0

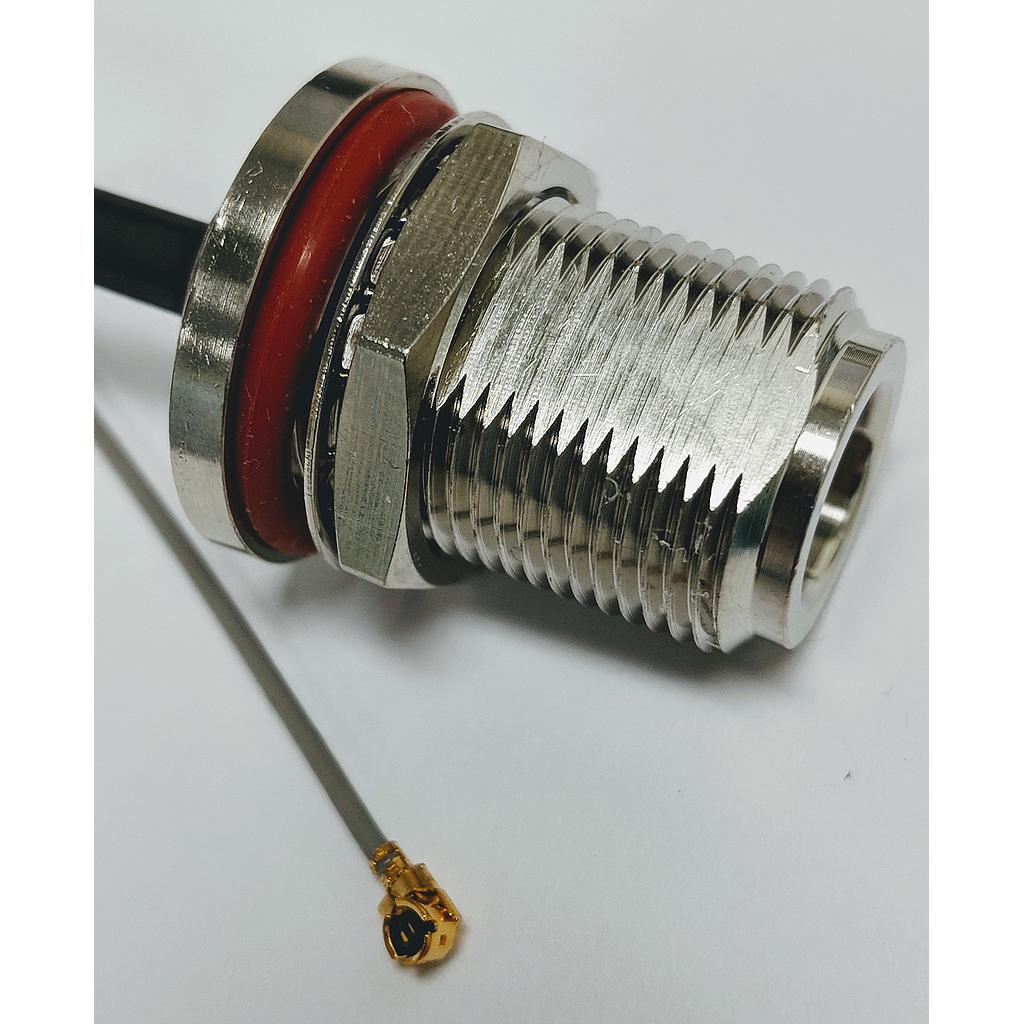

    P1CA-NFBUFL-RG178-6
    P1CA-NFBUFL-RG178-6
    Cable Assembly, N female bulkhead mount to U.FL plug right angle, RG178 flex coax, 6 inch.
    $ 16.94

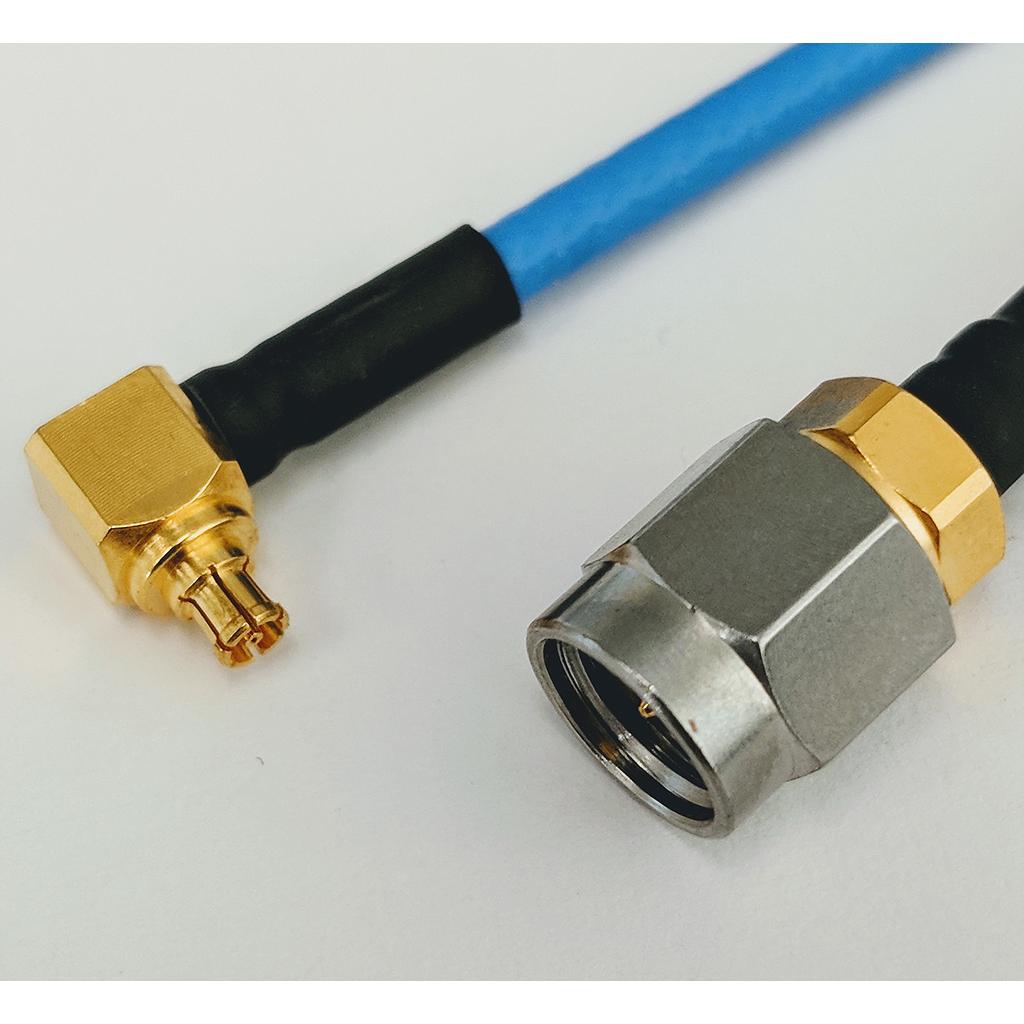

    P1CA-SAMSMFRA-SS085-12
    P1CA-SAMSMFRA-SS085-12
    SMA Male to SMPM Female Right Angle RF flex cable using SS085 High Performance Coax, 12 inches long, Operating to 18 GHz.
    $ 51.89
    Connector 1
    SMA Male
    Connector 2
    SMPM Female Right Angle
    Cable Type
    SS085
    Cable_Feature
    High Performance
    Length (in)
    12.0
    Outer Diameter (in)
    0.104
    Max. Frequency (GHz)
    18.0
    Data.F1
    1.0
    Data.F2
    6.0
    Data.F3
    10.0
    P1CA-SAMSMFRA-SS085-18
    P1CA-SAMSMFRA-SS085-18
    SMA Male to SMPM Female Right Angle RF flex cable using SS085 High Performance Coax, 18 inches long, Operating to 18 GHz.
    $ 53.89
    Connector 1
    SMA Male
    Connector 2
    SMPM Female Right Angle
    Cable Type
    SS085
    Cable_Feature
    High Performance
    Length (in)
    18.0
    Outer Diameter (in)
    0.104
    Max. Frequency (GHz)
    18.0
    Data.F1
    1.0
    Data.F2
    6.0
    Data.F3
    10.0

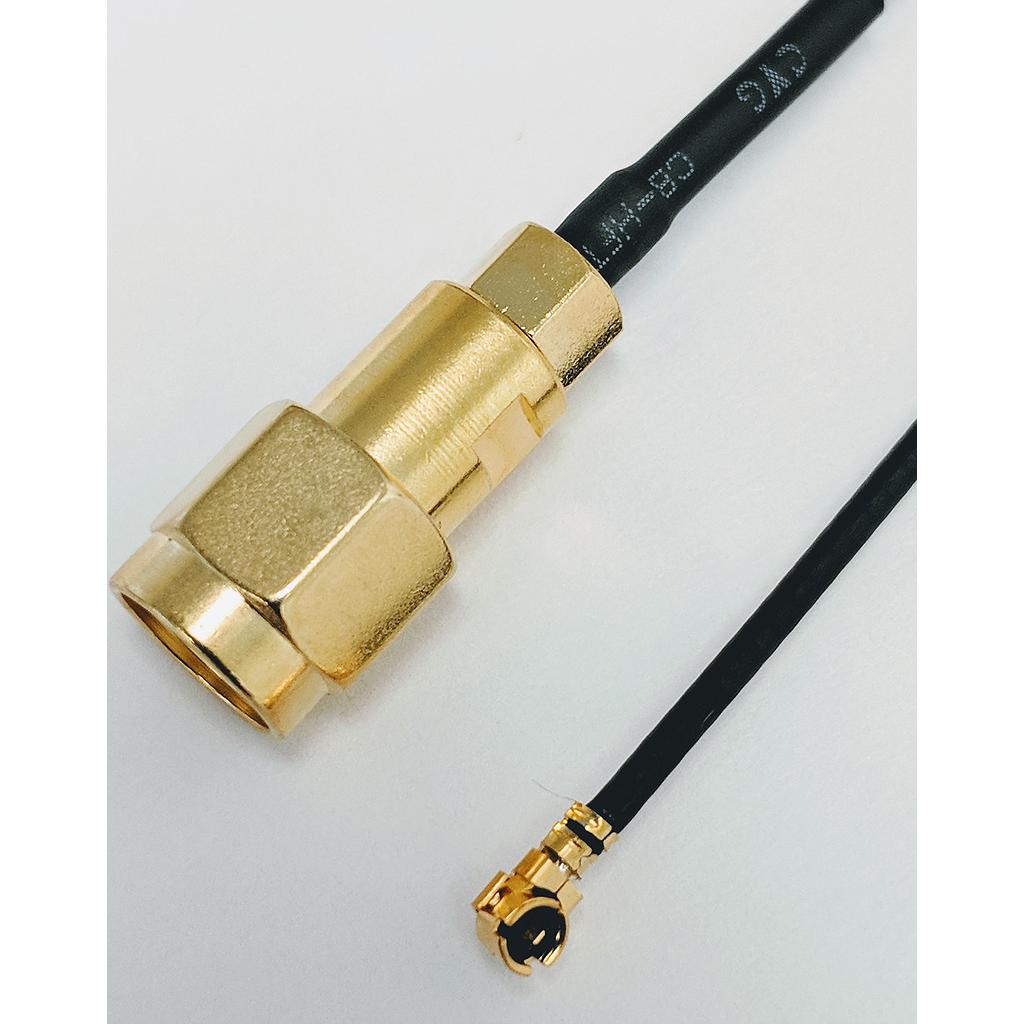

    P1CA-SAMUFP-U137-9
    P1CA-SAMUFP-U137-9
    Cable Assembly, SMA Male to U.FL Right Angle Plug, U137 Coax, 9 inch
    $ 10.95
    Pricelist
    Min. Qty
    Price
    • 1.0
      $ 10.95
    P1CA-SAMSPFRA-085CJ-9
    P1CA-SAMSPFRA-085CJ-9
    Cable Assembly, SMA Male to SMP Female Right Angle, 085CJ Jacketed Conformable Coax, 9 inches
    $ 34.95
    Connector 1
    SMA Male
    Connector 2
    SMP Female Right Angle
    Cable Type
    085CJ
    Cable_Feature
    Conformable, Jacketed
    Length (in)
    9.0
    Outer Diameter (in)
    0.103
    Max. Frequency (GHz)
    18.0
    P1CA-STMTMF-ST085-24
    P1CA-STMTMF-ST085-24
    SMA Male to SMPM Female cable assembly using ST085 Tight-Flex, Triple Shielded Coax, 24 inches long, Operating to 18 GHz.
    $ 43.27
    Connector 1
    SMA Male
    Connector 2
    SMPM Female
    Cable Type
    ST085
    Cable_Feature
    Tight-Flex, Triple Shielded
    Length (in)
    24.0
    Outer Diameter (in)
    0.104
    Max. Frequency (GHz)
    18.0
    Data.F1
    1.0
    Data.F2
    5.0
    Data.F3
    10.0
