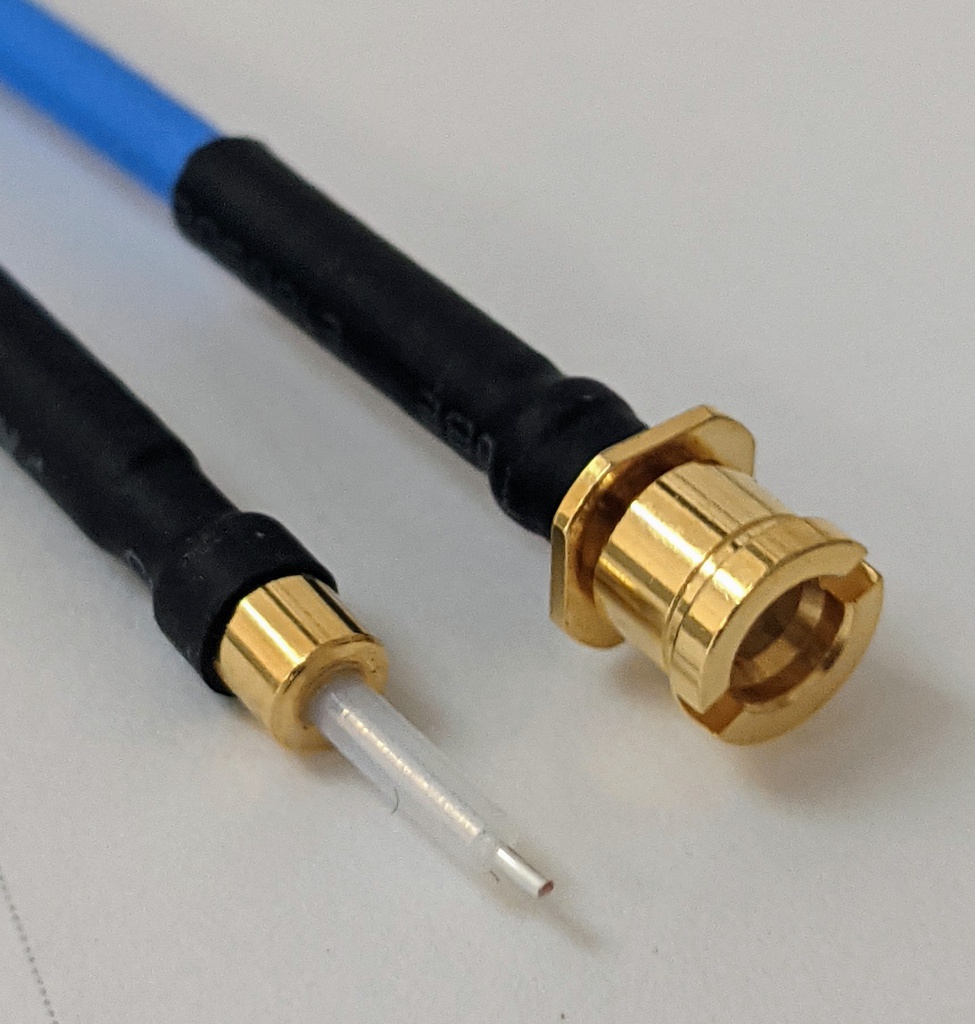

P1-SPM/PIGTAIL-SS085-14
SMP Male to RF Test Probe/Pigtail (no connector) cable assembly, SS085 flex cable (0.104 inch OD), 14 inch.
Connector is SMP male bulkhead .
Trimmed Pigtail end to expose dielectric and center contact.
Frequency DC to 12 GHz. Max VSWR 1.40.
$ 48.95 $ 48.95 48.95 USD
Connector 1
SMP Male
Connector 2
Pigtail - No Connector
Cable Type
085CJ
Cable_Feature
Trimmed end
Length (in)
14.0
Max. Frequency (GHz)
12.0
P1CA-SAMUFP-U137-12
Cable Assembly, SMA Male to U.FL Right Angle Plug, U137 Coax, 12 inch
$ 13.95 $ 13.95 13.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 13.95

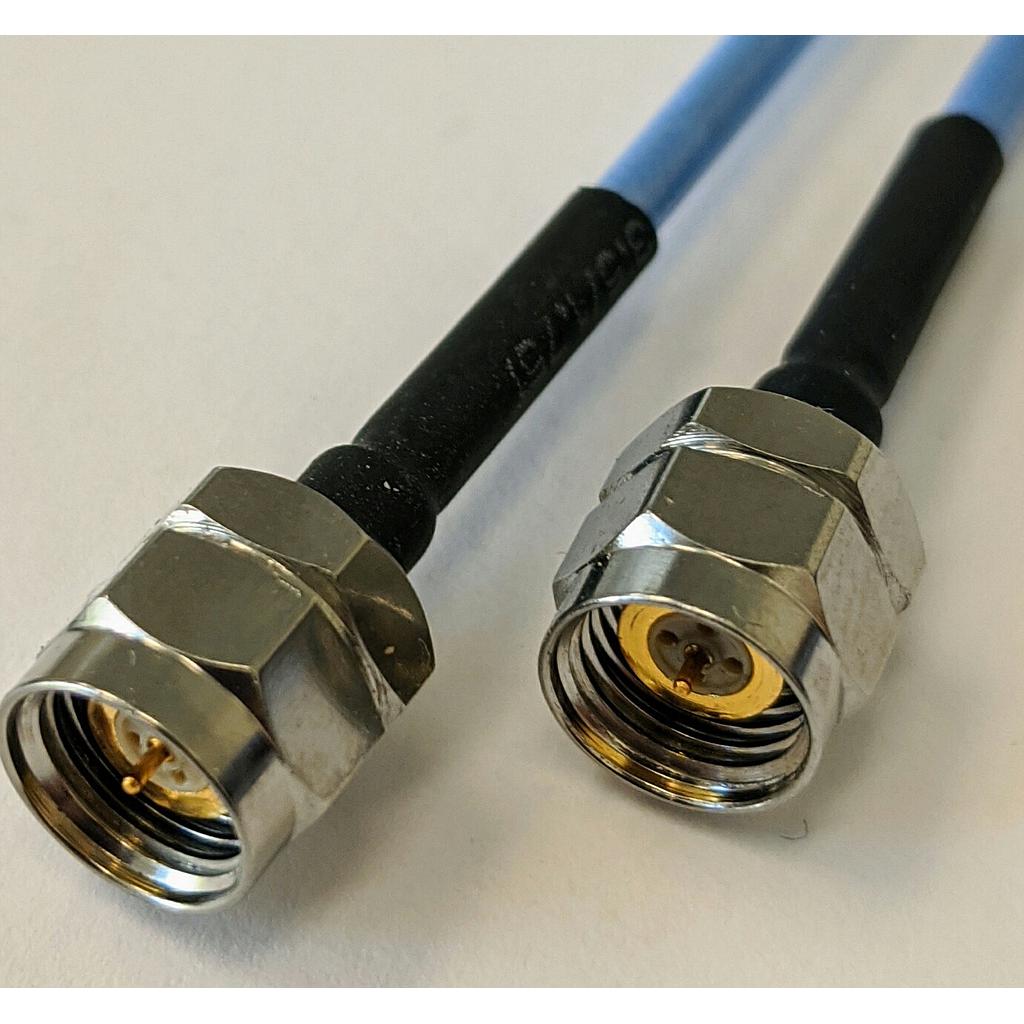

P1CA-24M24M-085CJ-72
Flexible RF cable assembly, 2.4mm male to 2.4mm male, 085 flex, 72 inch.
Frequency DC to 50 GHz.
$ 99.85 $ 99.85 99.85000000000001 USD
Pricelist
Min. Qty
Price

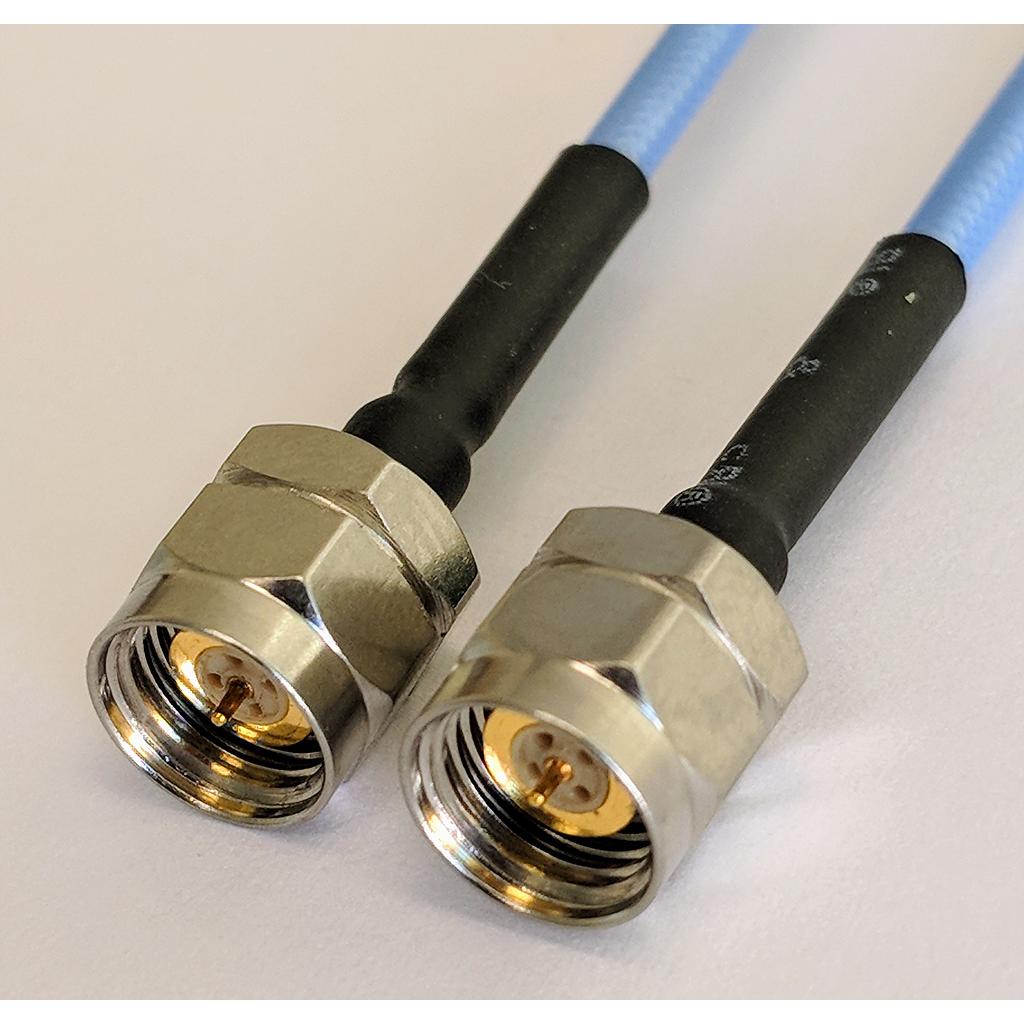

P1CA-24M24M-085CJ-10
2.4mm Male to 2.4mm Male RF flex cable using Flexiform 085 hand formable cable, 10 inches long, Operating to 50 GHz.
$ 72.43 $ 72.43 72.43 USD
Pricelist
Min. Qty
Price
  • 1
    $ 72.43
Connector 1
2.4mm Male
Connector 2
2.4mm Male
Cable Type
Flexiform 085
Cable_Feature
Hand Formable
Length (in)
10.0
Outer Diameter (in)
0.104
Max. Frequency (GHz)
50.0 GHz
Data.F1
1.0
Data.F2
18.0
Data.F3
30.0
P1CA-SMFPT-047SR-6
Pigtail, SMPM female to square cut end (no trim), .047 semi rigid, 6 inch.
Frequency DC - 6GHz.
$ 29.87 $ 29.87 29.87 USD
Connector 1
SMPM Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Length (in)
6.0
P1CA-SAMSAMRA-RG316-4
SMA Male to SMA Male Right Angle, RG316 flex cable, 4 inch.
Frequency DC to 6 GHz.
$ 14.95 $ 14.95 14.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 14.95
Connector 1
SMA Male
Connector 2
SMA Male Right Angle
Cable Type
RG-316
Length (in)
4.0
Max. Frequency (GHz)
6.0
P1CA-SAMSAMRA-RG316-14
SMA Male to SMA Male Right Angle, RG316 flex cable, 14 inch.
Frequency DC to 6 GHz.
$ 16.95 $ 16.95 16.95 USD
Connector 1
SMA Male
Connector 2
SMA Male Right Angle
Cable Type
RG-316
Length (in)
14.0
Outer Diameter (in)
0.098
MinBend
0.5
OpTmpMin
-55.0
OpTmpMax
125.0
P1CA-24NMDF29M-400PT-24
Precision test cable, 2.4mm NMD female to 2.92mm male, 400PT Phase-Flex stable cable, 24 inch.
Frequency DC to 40 GHz.
Delivery 30 days typical.
$ 686.17 $ 686.17 686.17 USD
P1CA-SMFTSMFT-F090-6
RF flexible cable assembly, SMPM-T female straight to SMPM-T female straight, 0.090 inch flexible coaxial cable, 6 inch.
Frequency DC to 40 GHz.
$ 287.65 $ 287.65 287.65000000000003 USD
Pricelist
Min. Qty
Price
  • 10
    $ 287.65
  • 20
    $ 273.44
P1CA-SMFRAUFL-U137-5
Cable Assembly, SMPM female right angle to U.FL Right Angle Plug, 1.37mm flex, 5 inch.
$ 39.47 $ 39.47 39.47 USD
Pricelist
Min. Qty
Price
  • 1
    $ 39.47
P1CA-SAF2PT-047SR-150MM
SMA Female 2 Hole Flange to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 150mm.
RF tested DC to 6 GHz.
$ 19.98 $ 19.98 19.98 USD
Connector 1
SMA Female 2-Hole Flange
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Outer Diameter (in)
0.047
Max. Frequency (GHz)
6.0
P1-SMAJ/PIGTAIL-085SR-3
Trimmed Pigtail, .085 semi rigid, 3 inch.
Frequency DC to 6 GHz.
$ 14.55 $ 14.55 14.55 USD
Pricelist
Min. Qty
Price
  • 1
    $ 14.55
Connector 1
SMA Female
Cable Type
.085 semi rigid
Length (in)
3.0
P1CA-10F10M-F047-24
Flexible cable assembly, 1.0mm female to 1.0mm male, F047 cable, 24 inch.
Frequency DC to 110 GHz.
VSWR 1.45 max.
$ 987.50 $ 987.50 987.5 USD
Pricelist
Min. Qty
Price
  • 1
    $ 987.5
P1CA-10F10M-F047-12
Flexible cable assembly, 1.0mm female to 1.0mm male, F047 cable, 12 inch.
Frequency DC to 110 GHz.
VSWR 1.45 max.
$ 987.50 $ 987.50 987.5 USD
Pricelist
Min. Qty
Price
  • 1
    $ 987.5
P1CA-SAFSAM-137MM-5
Cable Assembly, SMA female to SMA male, 1.37mm flex, 5 inch.
$ 14.95 $ 14.95 14.950000000000001 USD
P1CA-SAFSMFRA-U137-6
Cable Assembly, SMA female to SMPM female right angle, 1.37mm flex, 6 inch.
$ 39.47 $ 39.47 39.47 USD
P1AT-24MF-50G2W-3
RF Attenuator, 2.4mm Male to 2.4mm Female, 50 GHz, 3 dB, 2 Watt.
VSWR 1.30 max DC to 50 GHz.
$ 277.95 $ 277.95 277.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 277.95
Connector 1
2.4mm Male
Connector 2
2.4mm Female
Max VSWR
1.30
Frequency Max (GHz)
50.0
Attenuation (dB)
3.0
Avg. Power (W)
2.0
P1AT-24MF-50G2W-20
RF Attenuator, 2.4mm Male to 2.4mm Female, 20 dB attenuation, 2 Watt.
Freequency DC to 50 GHz.
$ 277.95 $ 277.95 277.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 277.95
Connector 1
2.4mm Male
Connector 2
2.4mm Female
Max VSWR
1.30
Frequency Max (GHz)
50.0
Attenuation (dB)
20.0
Avg. Power (W)
2.0
P1AT-18MF-67G2W-3
RF Attenuator, 1.85mm Male to 1.85mm Female, DC to 67 GHz, 3 dB, 2 Watt.

$ 456.80 $ 456.80 456.8 USD
Pricelist
Min. Qty
Price
  • 1
    $ 456.8
Max VSWR
1.35:1
Frequency Max (GHz)
67
Attenuation (dB)
3.0
Avg. Power (W)
1.0
Accuracy (dB)
0.75
P1AT-18MF-67G2W-20
RF Attenuator, 1.85mm Male to 1.85mm Female, 20 dB, 2 Watt.
Frequency DC to 67 GHz. VSWR 1.30 max.
$ 456.80 $ 456.80 456.8 USD
Pricelist
Min. Qty
Price
  • 1
    $ 456.8
Max VSWR
1.30
Frequency Max (GHz)
67
Attenuation (dB)
20.0
Avg. Power (W)
2.0
