P1CA-SMFRANRF-F047-3
Cable Assembly, SMPM female right angle to nano RF socket (2302339-1), flex .047 cable, 3 inches.
$ 96.75 $ 96.75 96.75 USD
Pricelist
Min. Qty
Price
  • 50
    $ 35.73
P1CA-SAFSPMB-SS085-6
RF Cable Assembly, SMA Female to SMP Male Bulkhead, SS085 flex, 6 inch.
$ 49.79 $ 49.79 49.79 USD
Pricelist
Min. Qty
Price
  • 1
    $ 49.79
  • 10
    $ 44.65
Connector 1
SMA Female
Connector 2
SMP Male Bulkhead, Limited Detent
Cable Type
SS085
Length (in)
6.0
Outer Diameter (in)
0.104
P1CA-SAMSPMB-SS085-6
RF Cable Assembly, SMA Male to SMP Male Bulkhead, SS085 flex, 6 inch.
$ 49.79 $ 49.79 49.79 USD
Pricelist
Min. Qty
Price
  • 1
    $ 49.79
  • 10
    $ 44.65
Connector 1
SMA Male
Connector 2
SMP Male Bulkhead, Limited Detent
Cable Type
SS085
Length (in)
6.0
Outer Diameter (in)
0.104
P1CA-SAMSMF-U137-6
Cable Assembly, SMA male to SMPM female straight,1.37mm flex, 6 inch.
$ 39.47 $ 39.47 39.47 USD
Pricelist
Min. Qty
Price
  • 30
    $ 39.47

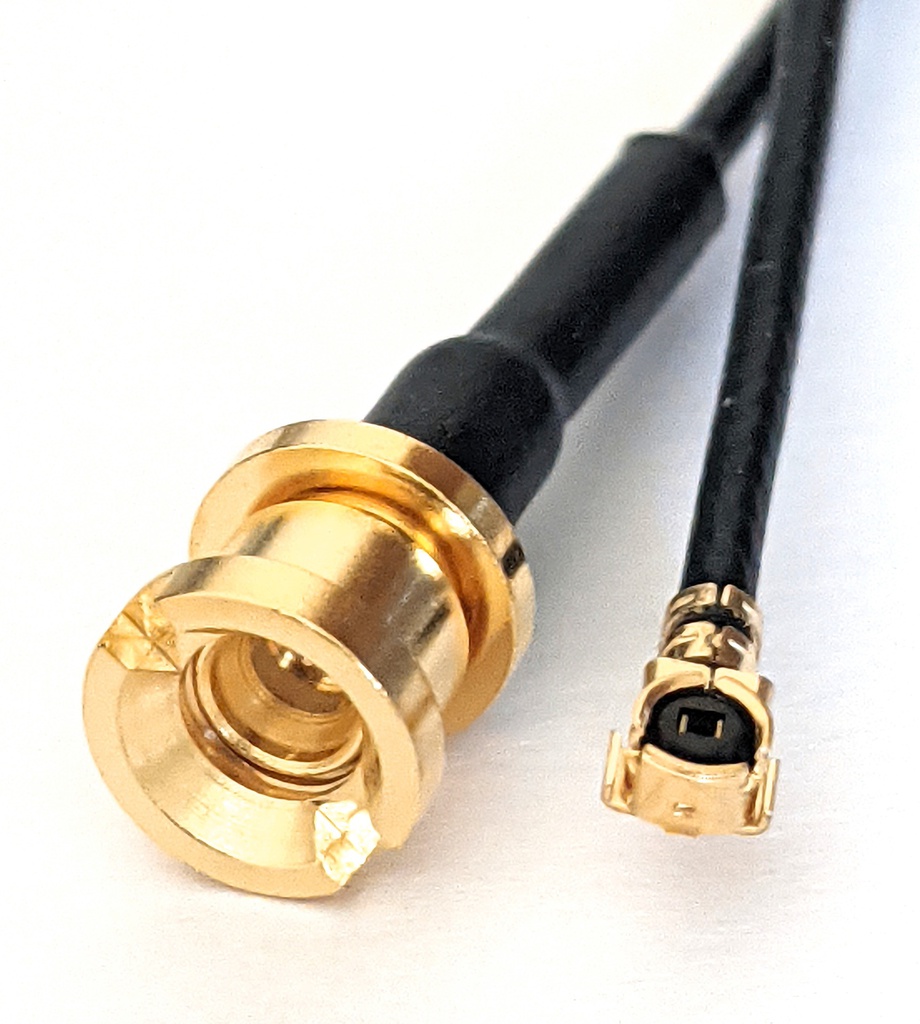

P1CA-SMBUFL-U137-2
Cable Assembly, SMPM male bulkhead (full detent) to UFL , 1.37mm flex, 2 inch.
$ 39.78 $ 39.78 39.78 USD
Pricelist
Min. Qty
Price
  • 1
    $ 39.78
  • 25
    $ 35.29

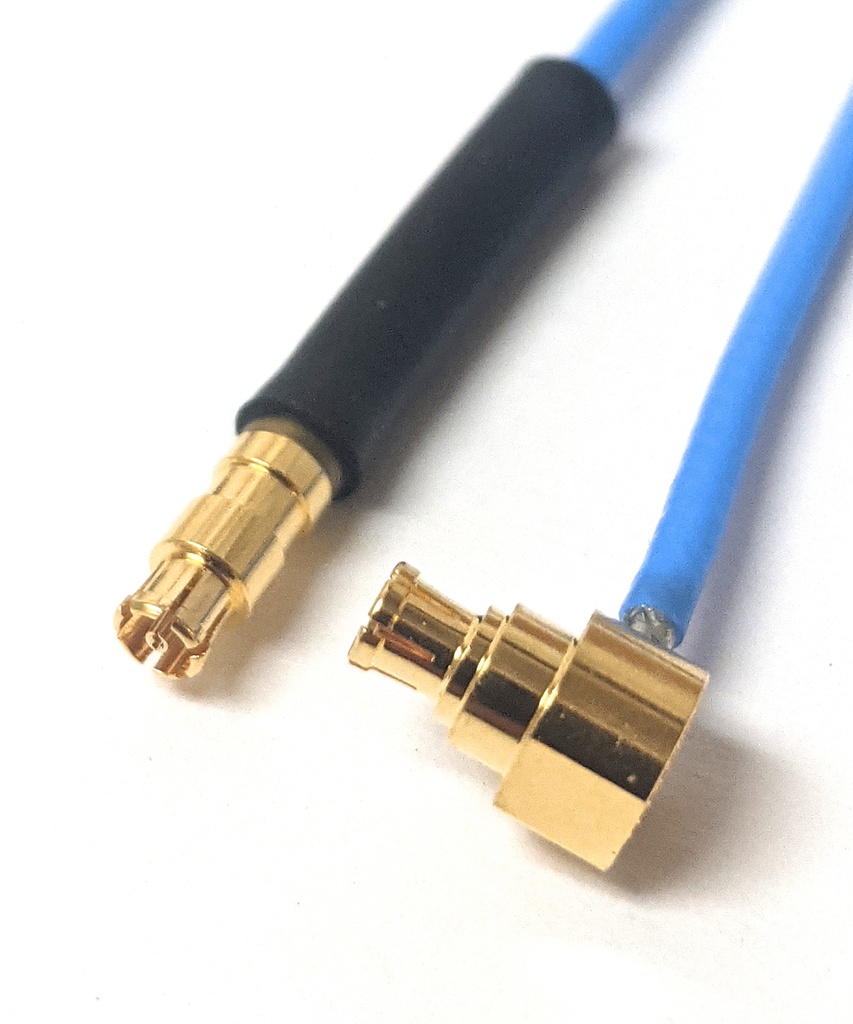

P1CA-SMFSMFRA-F047-3.3
Cable Assembly, SMPM female right angle to SMPM female straight, .047 flex, 3.3 inch.
Designed to mate with dual receptacle 3211-40024.
$ 55.79 $ 55.79 55.79 USD
Pricelist
Min. Qty
Price
  • 1
    $ 55.79
  • 25
    $ 49.85
P1CA-2SMFRA-U137-3.3
Cable Assembly, SMPM female right angle to SMPM female right angle, 1.37mm flex, 3.3 inch.
Designed to mate with receptacle 3211-40024.
$ 59.75 $ 59.75 59.75 USD
P1CA-UFPUFP-U081-1.8
Cable Assembly, U.FL RA Male to U.FL RA Male, U081 Cable, 1.8 Inches
$ 9.95 $ 9.95 9.950000000000001 USD
P1-SMAP/SMABHJ-085CJ-4
Cable Assembly, SMA Male to SMA Bulkhead Female, 085CJ Jacketed Conformable Coax, 4 inch.
$ 15.95 $ 15.95 15.950000000000001 USD
Connector 1
SMA Male
Connector 2
SMA Female
Cable Type
085CJ
Cable_Feature
Conformable, Jacketed
Length (in)
4.0
Outer Diameter (in)
0.102
Max. Frequency (GHz)
18.0
P1CA-24M24M-130F-12-PM-1PS-SET4
Phase matched set of 4 cable assemblies, 2.4mm male to 2.4mm male, 130F flexible coax, 12 inch.
Phase matched +/- 1 ps. Frequency DC to 50 GHz.
Supplied as a skew (delay) matched set of 4 cables . Price is per set. Each set includes S-Parameter data.
$ 1,118.56 $ 1,118.56 1118.56 USD
Pricelist
Min. Qty
Price
  • 1
    $ 1118.56
P1AT-18MF-67G2W-1
RF Attenuator, 1.85mm Male to 1.85mm Female, DC to 67 GHz, 1 dB, 2 Watt.

$ 456.80 $ 456.80 456.8 USD
Pricelist
Min. Qty
Price
  • 1
    $ 456.8
Max VSWR
1.35:1
Frequency Max (GHz)
67
Attenuation (dB)
1.0
Avg. Power (W)
1.0
Accuracy (dB)
0.75
P1CA-24M24M-130F-6-PM-1PS
Phase matched pair of cable assemblies (2) , 2.4mm male to 2.4mm male, 130F flexible coax, 6 inch.
Phase matched +/- 1 ps. Frequency DC to 50 GHz.
Supplied as skew (delay) matched pairs (min order 2 pcs). Price is per cable. Each matched pair includes S-Parameter data.
Note: contact P1dB if you require a matched set of cables larger than 2 pcs.
$ 278.50 $ 278.50 278.5 USD
Pricelist
Min. Qty
Price
  • 2
    $ 278.5
P1CA-SMBUFL-U137-3.4
Cable Assembly, miniature SMPM male bulkhead (full detent) to UFL , 1.37mm flex, 3.4 inch.
SMPM bulkhead connector dimensions equivalent to GPPO B016-B33-02.
Frequency DC to 6 GHz.
$ 39.78 $ 39.78 39.78 USD
P1CA-SAFBMMXP-U137-12
Flexible RF cable assembly, SMA female bulkhead to MMCX plug straight, 1.37mm flex, 12 inch.
Frequency DC to 6 GHz.
$ 12.89 $ 12.89 12.89 USD
P1CA-SAFPT-047SR-6-12G
Extended frequency RF Test Probe.
SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 6 inch.
RF tested DC to 12 GHz with VSWR 1.4 max.
$ 22.98 $ 22.98 22.98 USD
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
4.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
12.0
P1CA-SAFWFL2-081-4
Cable Assembly, SMA Female to W.FL2 (Low Profile) Right Angle Plug, 0.81mm diameter flex, 4 inch.
Frequency DC to 6 GHz.
Height 1.14mm when mated.
$ 12.89 $ 12.89 12.89 USD
Pricelist
Min. Qty
Price
  • 50
    $ 11.97
P1CA-SAMSPF-F090-36-PM-1PS
RF flexible cable assembly, SMA male to SMP female straight, 0.090 inch flexible coaxial cable, 36 inch.
Skew (delay) matched cable pairs. Matched +/- 1 ps.
Frequency DC to 18 GHz.
Price is per cable, minimum order 2 cables.
$ 298.00 298.0 USD

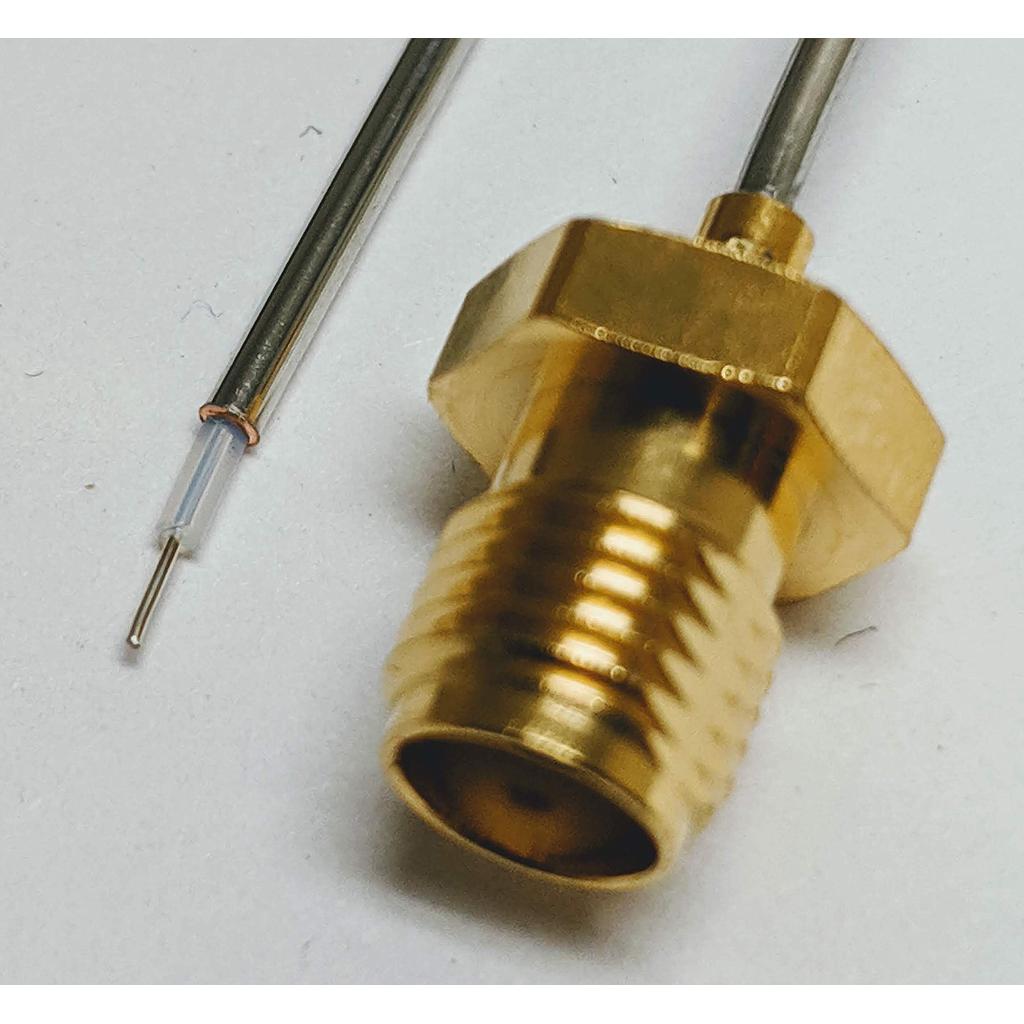

P1-SMAJ/PIGTAIL-047SR-6
RF Pigtail assembly (test probe), SMA female to Pigtail (no connector) using .047 inch diameter semi rigid coax, 6 inch.
The Pigtail end is trimmed to expose dielectric and center contact.
Each assembly is RF tested DC to 6 GHz.
$ 15.95 $ 15.95 15.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 15.95
Connector 1
SMA Female
Connector 2
Pigtail - Trimmed End
Cable Type
047SR
Length (in)
6.0
P1-BNCP/BNCP-RD316-24
BNC Plug to BNC Plug cable assembly using RD316 Double-Shielded flex coax, , 24 inches long, frequency DC to 3 GHz.
$ 28.92 28.92 USD
Connector 1
BNC Male
Connector 2
BNC Male
Cable Type
RD316
Cable_Feature
Double-Shielded RG Type Flex
Length (in)
24.0
Outer Diameter (in)
0.114
Max. Frequency (GHz)
3.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
P1AD-35FM
3.5mm Female to 3.5mm Male Adapter.
Frequency DC to 26.5 GHz with a max VSWR of 1.20.
$ 89.95 $ 89.95 89.95 USD
