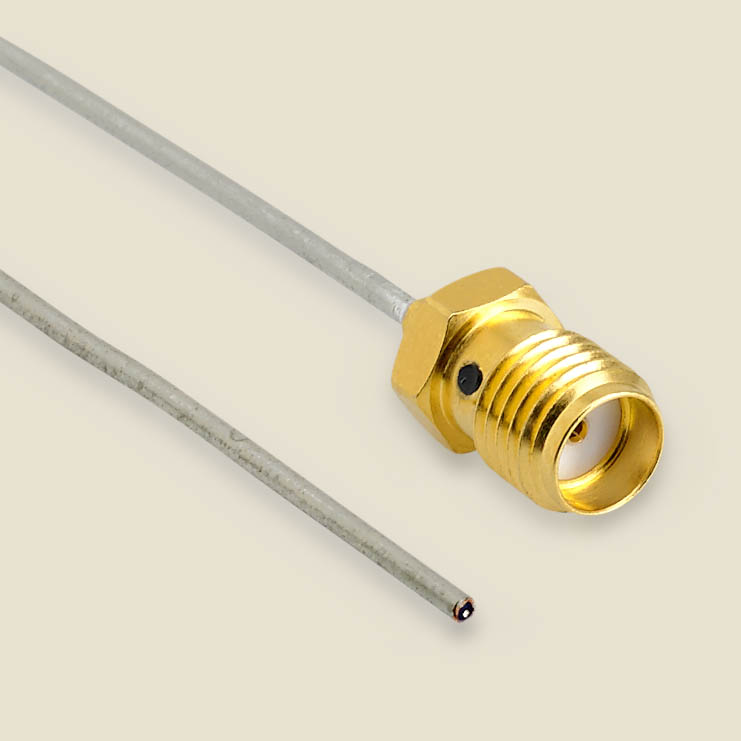

P1CA-SAFPT-047SR-6-12G
Extended frequency RF Test Probe.
SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 6 inch.
RF tested DC to 12 GHz with VSWR 1.4 max.
$ 22.98 $ 22.98 22.98 USD
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
4.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
12.0

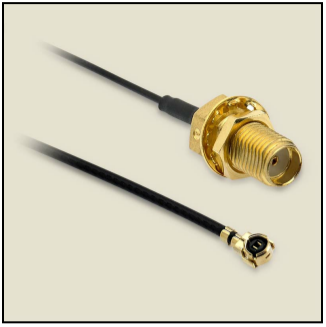

P1CA-SAFWFL2-081-4
Cable Assembly, SMA Female to W.FL2 (Low Profile) Right Angle Plug, 0.81mm diameter flex, 4 inch.
Frequency DC to 6 GHz.
Height 1.14mm when mated.
$ 12.89 $ 12.89 12.89 USD
Pricelist
Min. Qty
Price
  • 50
    $ 11.97
P1CA-SAMSPF-F090-36-PM-1PS
RF flexible cable assembly, SMA male to SMP female straight, 0.090 inch flexible coaxial cable, 36 inch.
Skew (delay) matched cable pairs. Matched +/- 1 ps.
Frequency DC to 18 GHz.
Price is per cable, minimum order 2 cables.
$ 298.00 298.0 USD
P1-SMAJ/PIGTAIL-047SR-6
RF Pigtail assembly (test probe), SMA female to Pigtail (no connector) using .047 inch diameter semi rigid coax, 6 inch.
The Pigtail end is trimmed to expose dielectric and center contact.
Each assembly is RF tested DC to 6 GHz.
$ 15.95 $ 15.95 15.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 15.95
Connector 1
SMA Female
Connector 2
Pigtail - Trimmed End
Cable Type
047SR
Length (in)
6.0
P1-BNCP/BNCP-RD316-24
BNC Plug to BNC Plug cable assembly using RD316 Double-Shielded flex coax, , 24 inches long, frequency DC to 3 GHz.
$ 28.92 28.92 USD
Connector 1
BNC Male
Connector 2
BNC Male
Cable Type
RD316
Cable_Feature
Double-Shielded RG Type Flex
Length (in)
24.0
Outer Diameter (in)
0.114
Max. Frequency (GHz)
3.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
P1AD-35FM
3.5mm Female to 3.5mm Male Adapter.
Frequency DC to 26.5 GHz with a max VSWR of 1.20.
$ 89.95 $ 89.95 89.95 USD
P1AD-35MM
3.5mm Male to 3.5mm Male Adapter.
Frequency DC to 26.5 GHz with a max VSWR of 1.20.
$ 119.95 $ 119.95 119.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 119.95
P1CA-SAMRANMRA-SS141-5
SMA Male Right Angle to N Male Right Angle cable assembly, SS141 flex cable, 5 inch.
Frequency DC to 10 GHz.
$ 28.75 $ 28.75 28.75 USD
Pricelist
Min. Qty
Price
  • 10
    $ 22.84
Connector 1
SMA Male Right Angle
Connector 2
N Male Right Angle
Cable Type
SS141
Length (in)
5.0
Max. Frequency (GHz)
10.0
P1CA-SAFSAF-SS085-12
SMA Female to SMA Female RF flex cable assembly, SS085 High Performance Coax, 12 inch.
Frequency DC to 18 GHz.
$ 33.58 $ 33.58 33.58 USD
Connector 1
SMA Female
Connector 2
SMA Female
Cable Type
SS085
Length (in)
12.0
Outer Diameter (in)
0.104
P1CA-SAMNM-RG316-18
SMA Male to N Male flexible RF cable, RG316, 18 inch.
Frequency DC to 6 GHz.
$ 24.95 $ 24.95 24.95 USD
Connector 1
SMA Male
Connector 2
N Male
Cable Type
RG-316
Length (in)
18.0
Outer Diameter (in)
0.098
Max. Frequency (GHz)
6.0
P1AD-10M18M
Precsision RF Adapter, 1.0mm male to 1.85mm male, DC to 67 GHz.
VSWR 1.35 max to 67 GHz.
$ 385.89 $ 385.89 385.89 USD
Pricelist
Min. Qty
Price
  • 1
    $ 385.89
Connector 1
1.00mm Male
Connector 2
1.85mm Male
Impedance
50.0
Frequency (GHz)
67 GHz
Max VSWR
1.35 to 67 GHz
P1CA-29M29M-F150-120
RF flexible low loss test cable assembly, 2.92mm Male to 2.92mm Male, 0.15 inch diameter phase stable cable, 10 ft.
Frequency DC to 40 GHz.
$ 492.00 $ 492.00 492.0 USD
Pricelist
Min. Qty
Price
  • 1
    $ 492.0
P1CA-SPFRAUFL-U137-6
Cable Assembly, SMP female right angle to U.FL Right Angle Plug, 1 mm flex cable, 6 inches, measured connector center line to center line.
$ 37.25 $ 37.25 37.25 USD
Pricelist
Min. Qty
Price
  • 25
    $ 29.84
P1CA-SMFUFL-U137-24
Cable Assembly, SMPM female straight to U.FL Right Angle Plug, flex 1.37mm cable, 24 inches.
$ 39.68 $ 39.68 39.68 USD
P1CA-SAMSAM-F140-36-PM-1PS-SET4
RF flexible cable assembly, SMA Male to SMA Male, 0.140 inch flexible coaxial cable, 36 inch.
Supplied as a skew matched set of 4 cables.
Time delay +/- 1 ps max from DC to 10 GHz.
S parameter data included. Price is per set (4 cables).
$ 894.00 $ 894.00 894.0 USD
P1CO-SAF2-F015-27G
Connector, SMA Female, 2-Hole Panel Mount, Field Replaceable, Socket for .015 Pin, 27 GHz.
Limited to stock on hand.
$ 14.95 $ 14.95 14.950000000000001 USD
Max. Frequency (GHz)
27.0
Gender
Female
Termination Style
Socket
Termination Type
Field Replace Socket .012
P1CA-NMNM-SS141-24-PM-SET8
N Male to N Male flexible RF cable assembly, SS141 cable, 24 inch.
Supplied as a set of 8 phase matched cables.
Phase match +/-1.5 deg DC to 1 GHz.
Test data included.
Price is for 1 set (8 cables total).
$ 1,237.85 $ 1,237.85 1237.8500000000001 USD
Connector 1
N Male
Connector 2
N Male
Cable Type
SS141
Length (in)
24.0
Outer Diameter (in)
0.163
P1CA-SAMSAM-085CJ-15
SMA Male to SMA Male cable assembly using 085CJ Jacketed Conformable Coax, 15 inches long, Operating to 26.5 GHz
$ 16.95 $ 16.95 16.95 USD
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
085CJ
Cable_Feature
Jacketed Conformable
Length (in)
15.0
Outer Diameter (in)
0.102
Max. Frequency (GHz)
26.5
Data.F1
1.0
Data.F2
5.0
Data.F3
10.0
P1CA-SAMSAM-RD316-96
SMA Male to SMA Male cable assembly, RD316 , 96 inch.
$ 36.95 $ 36.95 36.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 36.95
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
RD316
Cable_Feature
Double-Shielded RG Type Flex
Length (in)
96.0
Outer Diameter (in)
0.114
Max. Frequency (GHz)
6.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
P1CA-SAMSAM-RD316-14
SMA Male to SMA Male, RD316, 14 inch.
$ 13.95 $ 13.95 13.950000000000001 USD
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
RD316
Length (in)
14.0
Outer Diameter (in)
0.114
Max. Frequency (GHz)
6.0
