High Frequency Adapters

      P1dB has adapters for high frequency test and measurement. Choices include in-series and between-series 3.5mm (up to 35 GHz) , 2.92mm (up to 40GHz), 2.4mm ( to 50 GHz) and 1.85mm (to 65 GHz).

Click Here if you do not find the desiredHigh Frequency Adapters.

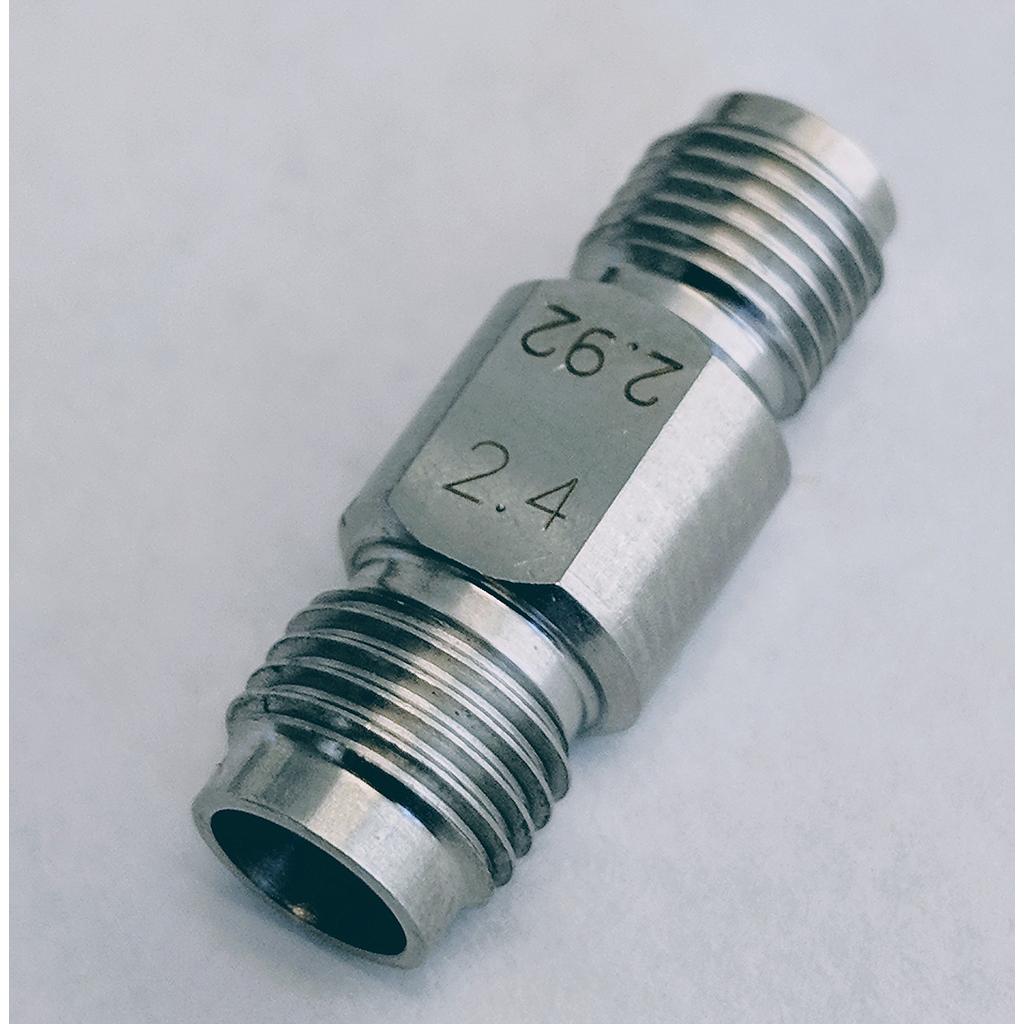

P1AD-24F29F
RF Adapter, 2.4mm Female to 2.92mm Female, VSWR 1.25 max to 40 GHz
95.15 95.15 95.15 USD
Pricelist
Min. Qty
Price
  • 1
    $ 95.15
  • 10
    $ 89.45
Connector 1
2.4mm Female
Connector 2
2.92mm Female
Angle
Straight
Mount
None
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
40.0
Max VSWR
1.25:1

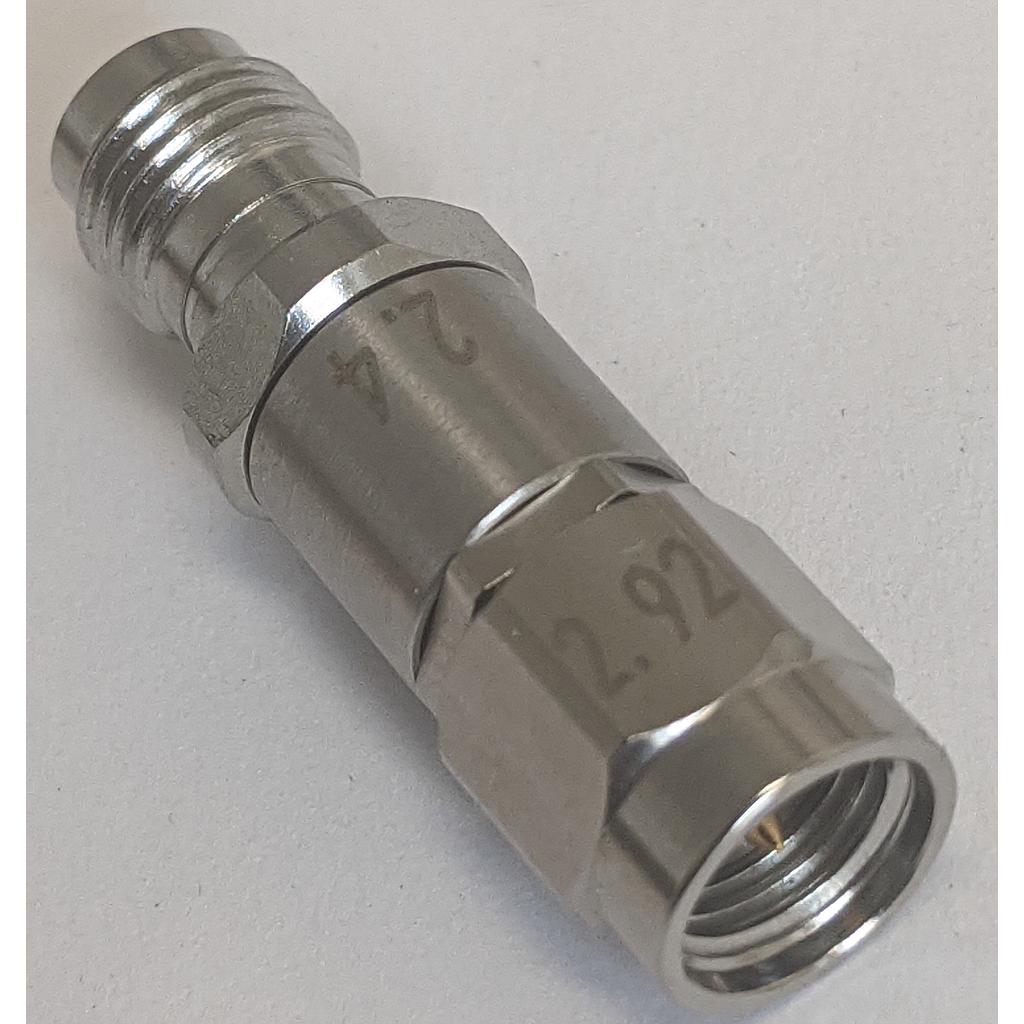

P1AD-24F29M
RF Adapter, 2.4mm Female to 2.92mm Male.
Frequency DC to 40 GHz, VSWR max 1.25.
95.15 95.15 95.15 USD
Pricelist
Min. Qty
Price
  • 1
    $ 95.15
Connector 1
2.4mm Female
Connector 2
2.92mm Male
Angle
Straight
Mount
None
Impedance
50.0
Frequency (GHz)
40.0
P1AD-18M24M
RF Adapter, 1.85mm Male to 2.4mm Male, VSWR 1.25 max up to 50 GHz
204.79 204.79 204.79 USD
Pricelist
Min. Qty
Price
  • 1
    $ 204.79
Connector 1
1.85mm Male
Connector 2
2.4mm Male
Angle
Straight
Mount
None
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
50.0
Max VSWR
1.25:1
P1AD-24MNF
RF Adapter, 2.4mm male to N female.
Frequency DC -18 GHz. VSWR 1.15 max.
226.10 226.10 226.1 USD
Pricelist
Min. Qty
Price
  • 1
    $ 226.1
Connector 1
2.4mm Female
Connector 2
N Male
P1AD-24MNM
RF Adapter, 2.4mm male to N male.
Frequency DC-18 GHz. VSWR 1.15 max.
226.10 226.10 226.1 USD
Pricelist
Min. Qty
Price
  • 1
    $ 226.1
P1AD-35F35F-BK
RF Adapter, 3.5mm female to 3.5mm female. Bulkhead mount,
Frequency DC-34.5 GHz. VSWR 1.25 max.
203.35 203.35 203.35 USD
P1AD-29FNF
RF Adapter, 2.92mm female to N female.
Frequency DC-18 GHz. VSWR 1.15 max.
186.75 186.75 186.75 USD
Pricelist
Min. Qty
Price
  • 1
    $ 186.75
P1AD-29F29F-BK
RF Adapter, 2.92mm female to 2.92mm female. Bulkhead mount,
Frequency DC-40 GHz. VSWR 1.25 max.
163.45 163.45 163.45000000000002 USD
P1AD-29F35M
RF Adapter, 2.92mm female to 3.5mm male.
Frequency DC-35 GHz. VSWR 1.25 max.
182.85 182.85 182.85 USD
Pricelist
Min. Qty
Price
  • 1
    $ 182.85
P1AD-35FM
3.5mm Female to 3.5mm Male Adapter.
Frequency DC to 26.5 GHz with a max VSWR of 1.20.
89.95 89.95 89.95 USD
P1AD-35MM
3.5mm Male to 3.5mm Male Adapter.
Frequency DC to 26.5 GHz with a max VSWR of 1.20.
119.95 119.95 119.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 119.95
P1AD-10M18M
Precsision RF Adapter, 1.0mm male to 1.85mm male, DC to 67 GHz.
VSWR 1.35 max to 67 GHz.
385.89 385.89 385.89 USD
Pricelist
Min. Qty
Price
  • 1
    $ 385.89
Connector 1
1.00mm Male
Connector 2
1.85mm Male
Impedance
50.0
Frequency (GHz)
67 GHz
Max VSWR
1.35 to 67 GHz
P1AD-18M29F
RF Adapter, 1.85 mm Male to 2.92 mm Female, VSWR 1.25max to 40 GHz.
189.95 189.95 189.95000000000002 USD
Pricelist
Min. Qty
Price
  • 1
    $ 189.95
Connector 1
1.85mm Male
Connector 2
2.92mm Female
Impedance
50.0
Frequency (GHz)
40.0
Max VSWR
1.25:1
P1AD-18FSAF
RF Adapter, 1.85mm Female to SMA Female.
Frequency DC to 27 GHz ,VSWR 1.20 max.
149.85 149.85 149.85 USD
Connector 1
1.85mm Female
Connector 2
SMA Female
Angle
Straight
Max VSWR
1.20
